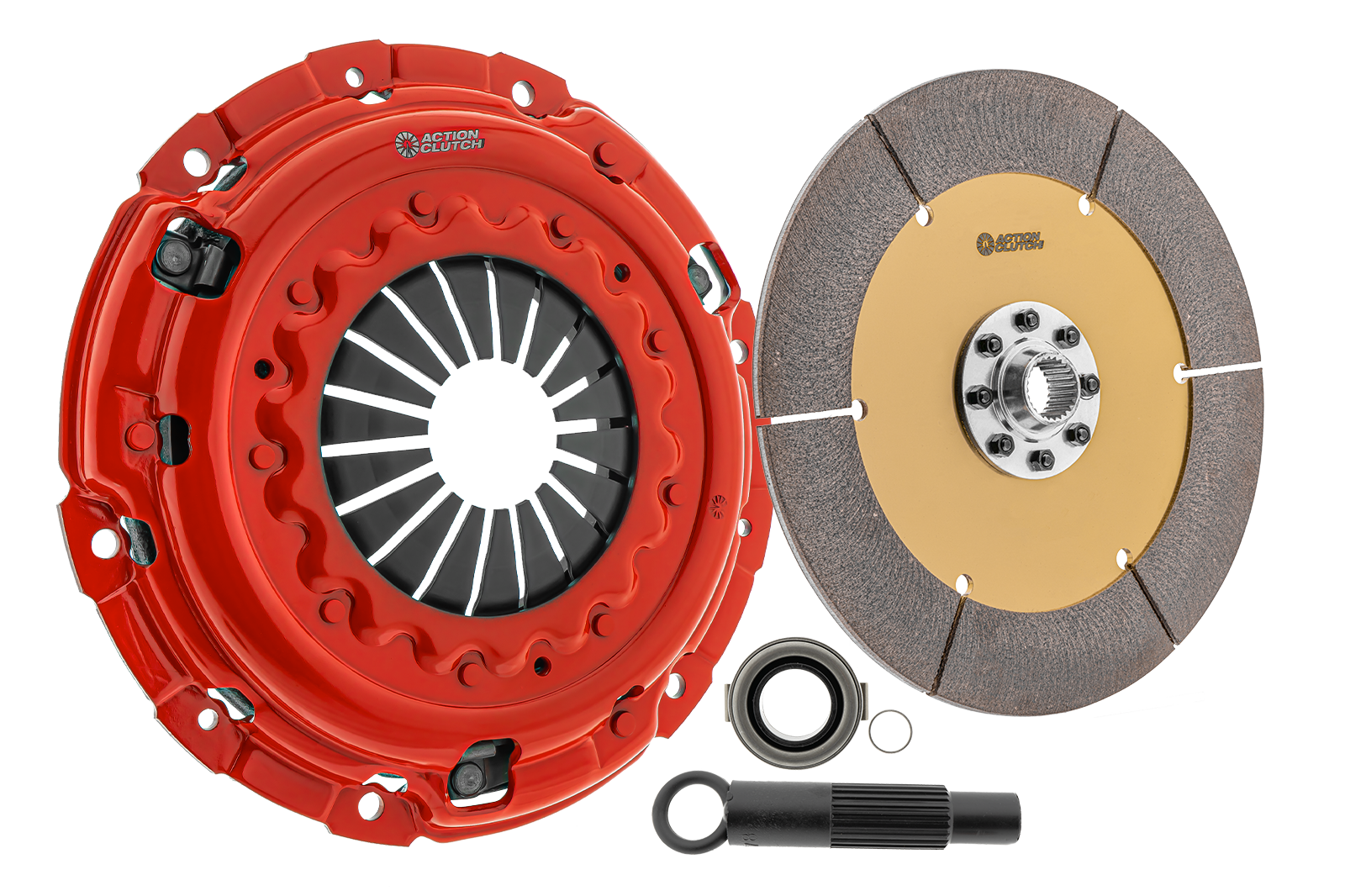

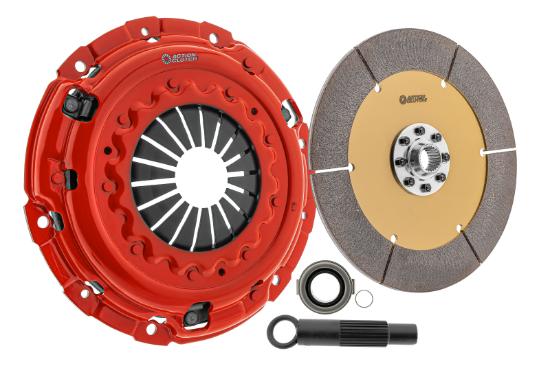

Action Clutch Transmission Clutch Kit - ACR-0495

Name: Action Clutch Transmission Clutch Kit - ACR-0495
SKU: ACR-0495
Price: 807.84 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$807.84

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Unsprung Clutch Kit for Acura RSX Type S 2002-2006 2.0L DOHC (K20A2)

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Clutch Disk Model	ACR-IRN-215 1 1/32X24T-R
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Unsprung American Sintered Iron Disc
Weight	16
Clutch Kit Type	Ironman Unsprung Clutch Kit
Prop 65 Yes/No	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Sintered Iron
Clutch Disk Spline Count	24
Disclaimer	Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	1 1/32
Clutch Disk Diameter	215
Alignment Tool Model	AT78
Pilot Bearing Model	22103-PNA-004
Release Bearing Model	RB-0313
Pressure Plate Model	HCC539HD R 9.7KN

🚗 Compatible with

5 vehicles are compatible with this product
