Action Clutch Transmission Clutch Kit - ACR-0498

Name: Action Clutch Transmission Clutch Kit - ACR-0498
SKU: ACR-0498
Price: 779.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$779.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

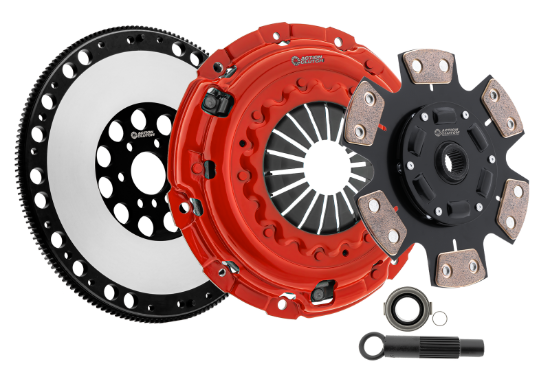

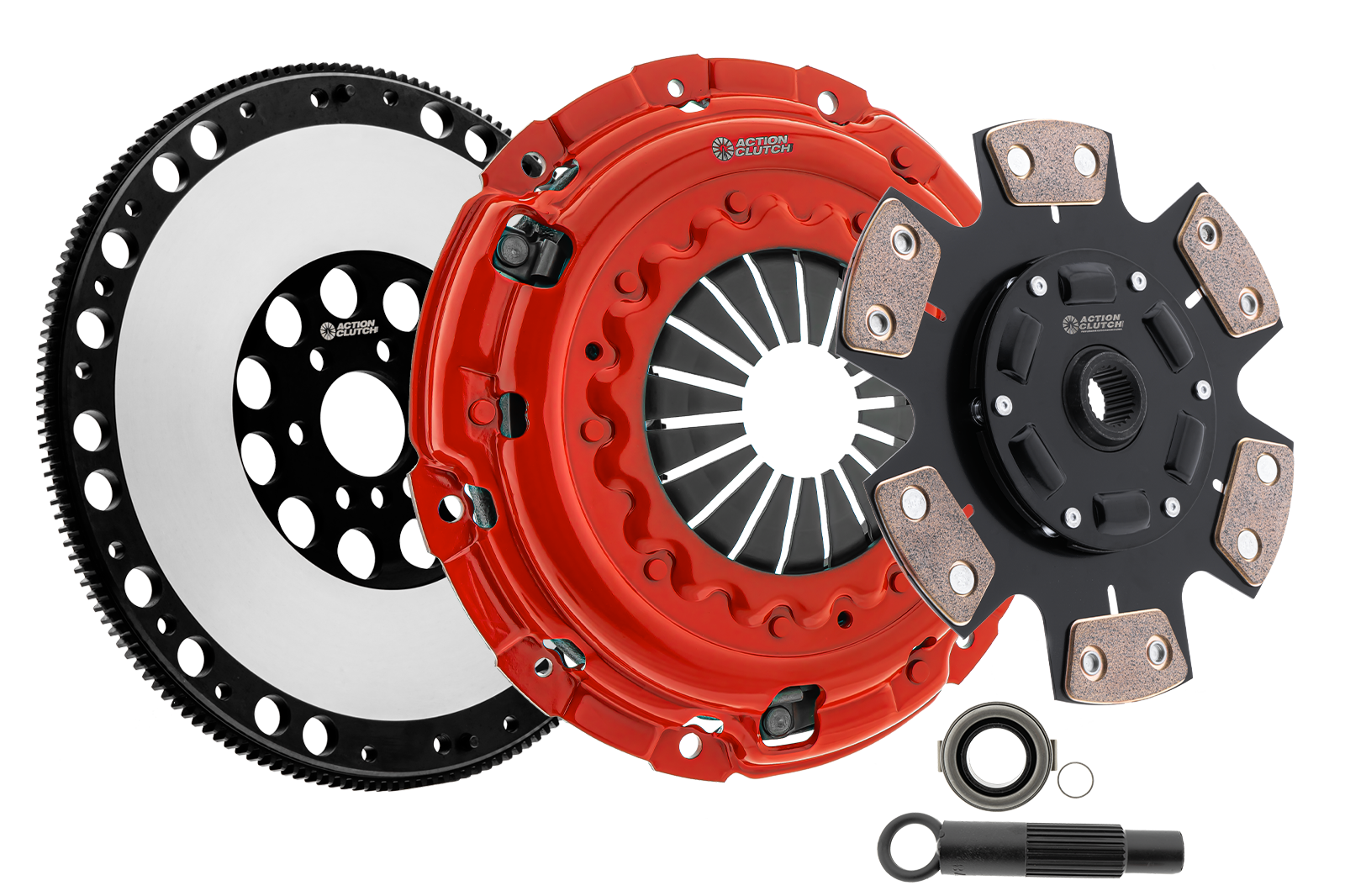

Clutch Kit (1MS) for Acura TSX 2004-2008 2.4L (K24A2)

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Pressure Plate Model	HCC539HD R 6.5KN
Clutch Disk Model	ACR-CB6-215 1 1/32X24T-S
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	1 1/32
Clutch Disk Diameter	215
Alignment Tool Model	AT78
Flywheel Model	AC102FW
Pilot Bearing Model	22103-PNA-004
Release Bearing Model	RB-0313
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	Yes
Friction Material	Metallic
Clutch Disk Spline Count	24
Flywheel Style	Lightened Flywheel
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Weight	26
Clutch Kit Type	Stage 3 Clutch Kit (1MS)
Prop 65 Yes/No	Yes

🚗 Compatible with

5 vehicles are compatible with this product
