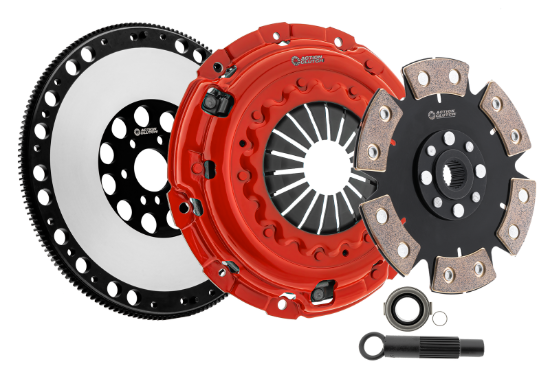

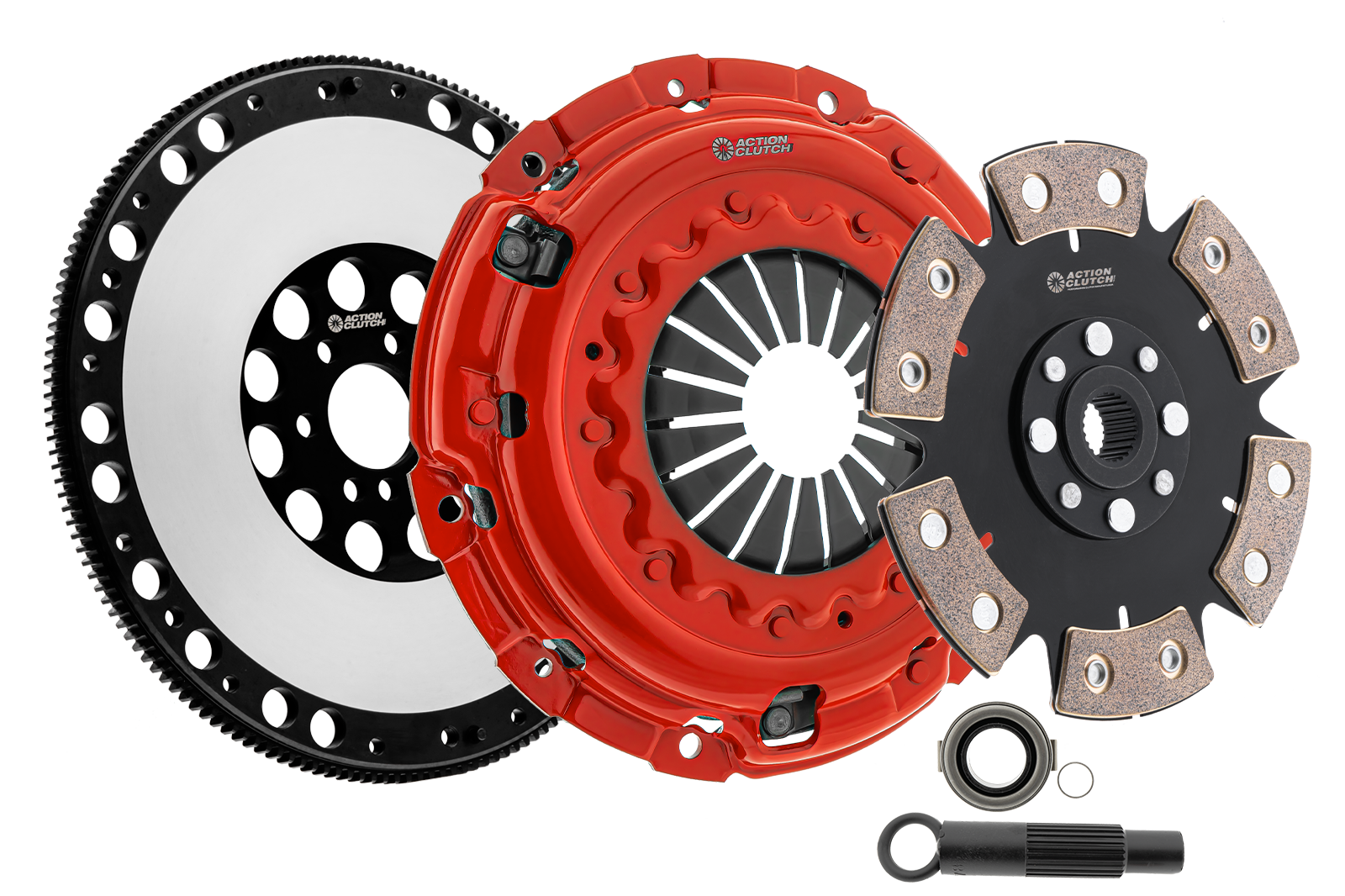

Action Clutch Transmission Clutch Kit - ACR-0597

Name: Action Clutch Transmission Clutch Kit - ACR-0597
SKU: ACR-0597
Price: 779.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$779.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1MD) for Honda Accord 2003-2012 2.4L (K24A4)

Products specifications

Attribute name	Attribute value
Flywheel Included	Yes
Flywheel Model	AC102FW
Pilot Bearing Model	22103-PNA-004
Release Bearing Model	RB-0313
Pressure Plate Model	HCC539HD R 6.5KN
Clutch Disk Model	ACR-CB6-215 1 1/32X24T-R
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Flywheel Style	Lightened Flywheel
Installation Care	2008+ Honda Accord 2.4L MUST USE HONDATA FLASH PRO
Counterweight Assist	No
Release Style	Conventional Release Bearing
Friction Material	Metallic
Clutch Disk Spline Count	24
Alignment Tool Included	Yes
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon in sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	1 1/32
Clutch Disk Diameter	215
Alignment Tool Model	AT78
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Weight	26
Clutch Kit Type	Stage 4 Clutch Kit (1MD)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No

🚗 Compatible with

10 vehicles are compatible with this product

Year	Make	Model
2003	Honda	Accord
2004	Honda	Accord
2005	Honda	Accord
2006	Honda	Accord
2007	Honda	Accord
2008	Honda	Accord
2009	Honda	Accord
2010	Honda	Accord
2011	Honda	Accord
2012	Honda	Accord
