Action Clutch Transmission Clutch Kit - ACR-0616-20T-KS

Name: Action Clutch Transmission Clutch Kit - ACR-0616-20T-KS
SKU: ACR-0616-20T-KS
Price: 474.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$474.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

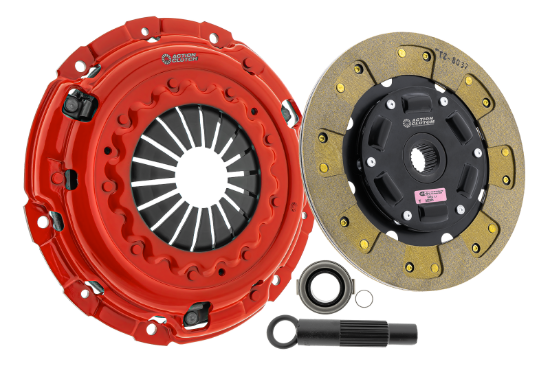

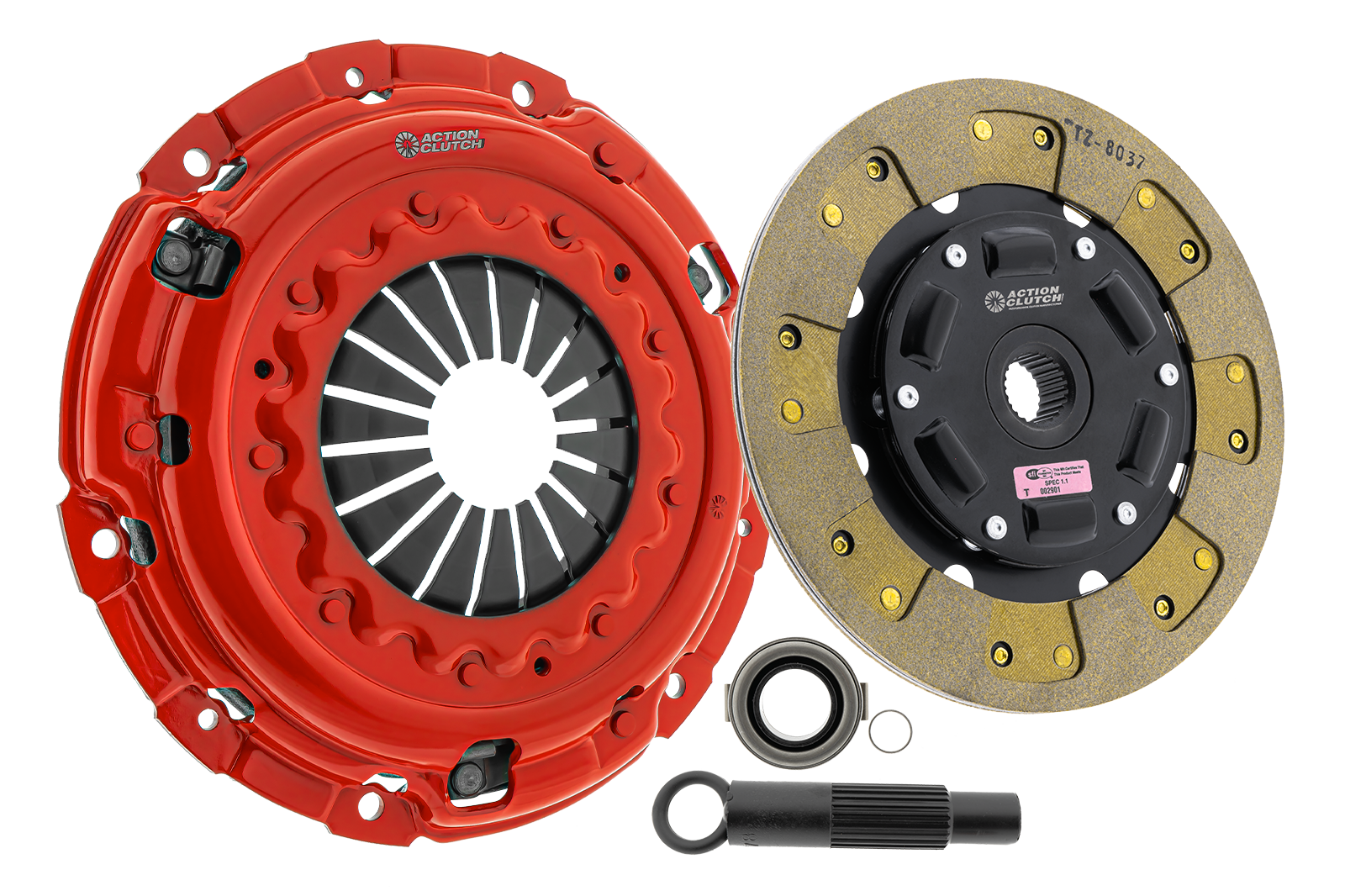

Clutch Kit (1KS) for Honda Civic 1989 1.5L/1.6L (D15, D16) 200mm, 20 Spline

Products specifications

Attribute name	Attribute value
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Release Style	Conventional Release Bearing
Pressure Plate Model	HCC507HD 30
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Friction Material	Kevlar
Counterweight Assist	No
Flywheel Included	No
Mounting Hardware Included	No
Release Bearing Model	RB-0304
Package Contents	Sprung Segmented Kevlar Disc
Clutch Kit Type	Stage 2 Clutch Kit (1KS)
Alignment Tool Included	Yes
Pilot Bearing Included	Yes
Prop 65 Yes/No	Yes
Release Bearing Included	Yes
Spring Cover Included	Yes
Weight	15
Clutch Disk Spline Count	20
Clutch Disk Diameter	200
Pilot Bearing Model	6002RS
Clutch Disk Spline Diameter	7/8
Clutch Disk Model	ACR-KS-200 7/8X20T
Alignment Tool Model	AT59
