Action Clutch Transmission Clutch Kit - ACR-0616-20TFW

Name: Action Clutch Transmission Clutch Kit - ACR-0616-20TFW
SKU: ACR-0616-20TFW
Price: 747.85 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$747.85

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

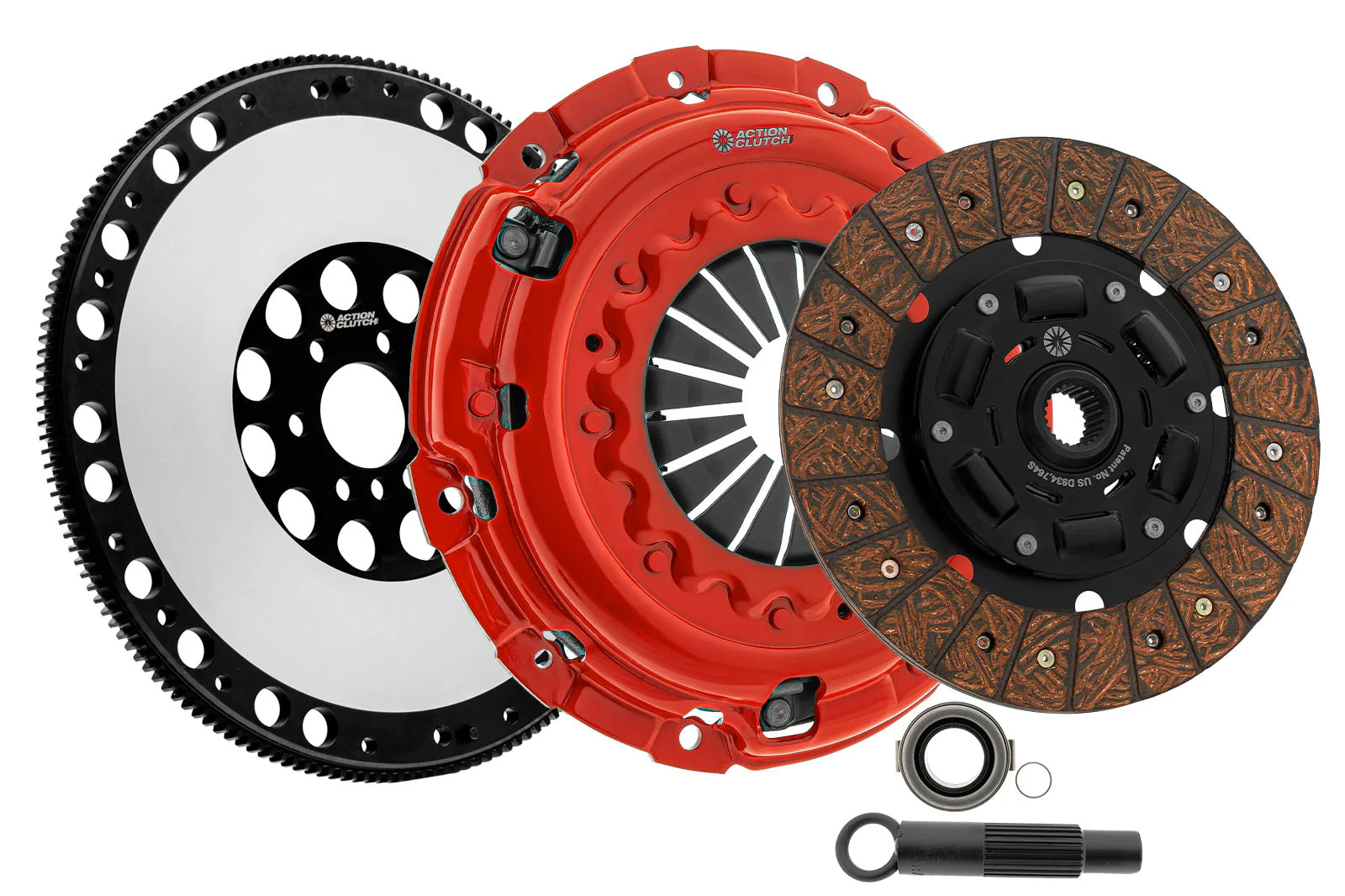

Clutch Kit (1SC) for Honda Civic 1989 1.5L/1.6L (D15, D16) 210mm, 20 Spline

Products specifications

Attribute name	Attribute value
Pilot Bearing Included	Yes
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Sprung Segmented Kevlar Disc
Weight	26
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Mounting Hardware Included	No
Alignment Tool Model	AT59
Flywheel Model	AC101FW
Pilot Bearing Model	6002RS
Release Bearing Model	RB-0304
Pressure Plate Model	HCC902HD 5.3KN R
Clutch Disk Model	ACR-KS-210 7/8X20T
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Flywheel Style	Lightened Flywheel
Clutch Kit Type	Stage 2 Clutch Kit (1SC)
Flywheel Included	No
Friction Material	Kevlar
Clutch Disk Spline Count	20
Alignment Tool Included	Yes
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	210

🚗 Compatible with

1 vehicles are compatible with this product

Year	Make	Model
1989	Honda	Civic
