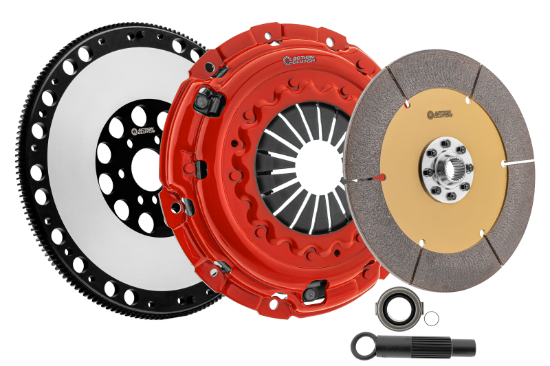

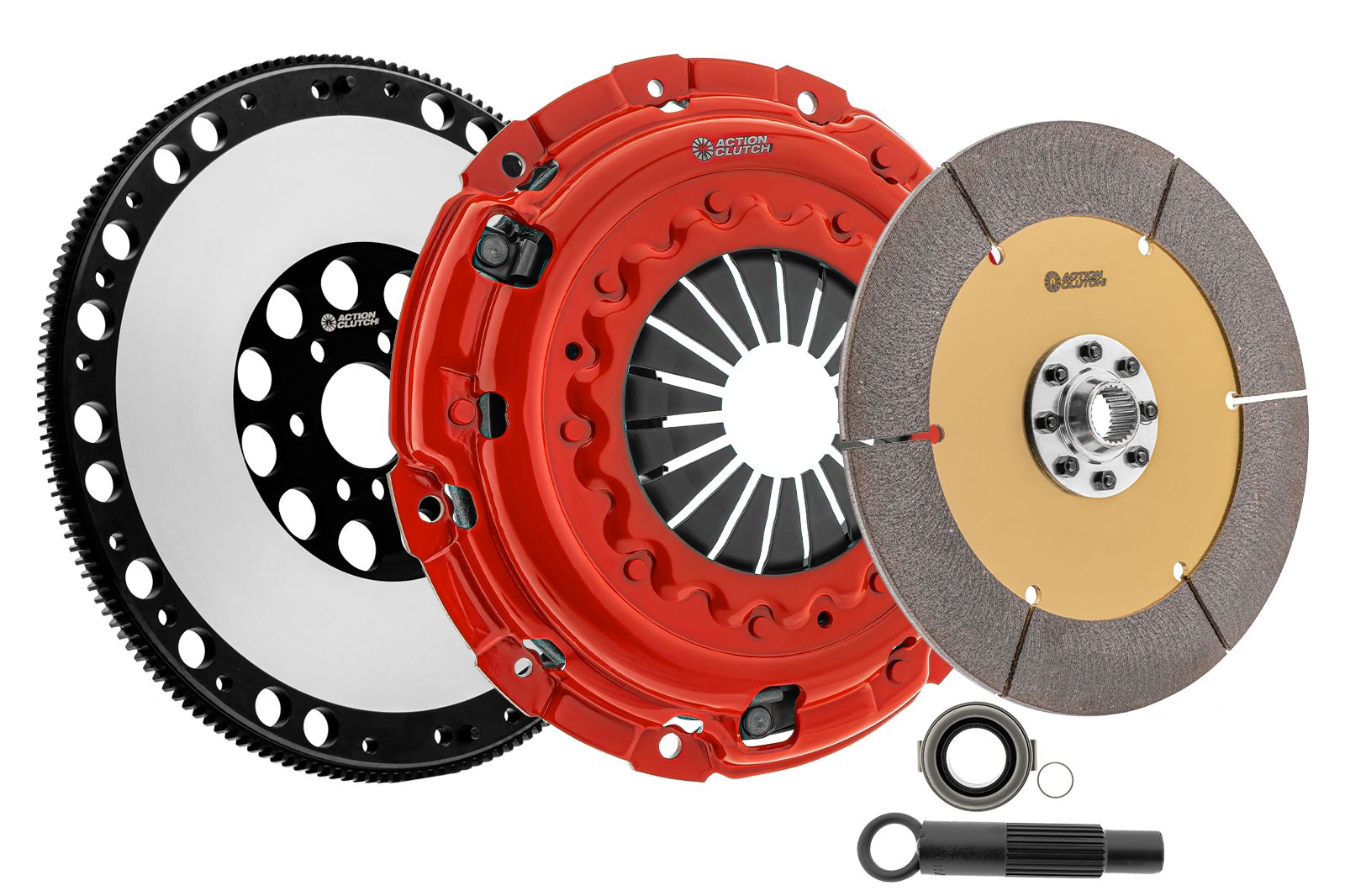

Action Clutch Transmission Clutch Kit - ACR-0621-20TFW

Name: Action Clutch Transmission Clutch Kit - ACR-0621-20TFW
SKU: ACR-0621-20TFW
Price: 899.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$899.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit for Honda Civic 1988 1.5L/1.6L (D15, D16) 210mm, 20 Spline

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Pressure Plate Model	HCC902HD 7.5KN R
Clutch Disk Model	ACR-IRN-210 7/8X20T-R
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Flywheel Style	Lightened Flywheel
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Unsprung American Sintered Iron Disc
Weight	26
Clutch Kit Type	Ironman Unsprung Clutch Kit
Prop 65 Yes/No	Yes
Spring Cover Included	No
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Sintered Iron
Clutch Disk Spline Count	20
Disclaimer	Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	210
Alignment Tool Model	AT59
Flywheel Model	AC101FW
Pilot Bearing Model	6002RS
Release Bearing Model	RB-0304

🚗 Compatible with

1 vehicles are compatible with this product

Year	Make	Model
1988	Honda	Civic
