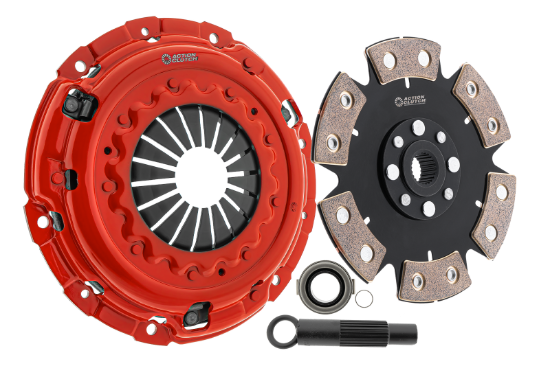

Picture of Action Clutch Transmission Clutch Kit - ACR-0649

Action Clutch Transmission Clutch Kit - ACR-0649

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Clutch Kit
Manufacturer: Action Clutch
$487.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Clutch Kit (2MD) for Honda Civic 2001-2005 1.7L SOHC (D17A2)

Products specifications

Attribute name Attribute value
Flywheel Included No
Pilot Bearing Model 6002RS
Release Bearing Model RB-0307
Pressure Plate Model HCC902HD 7.5KN R
Clutch Disk Model ACR-CB6-210 7/8X20T-R
Break-in Care 500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents Unsprung MIBA Ceramic 6 Puck Disc
Counterweight Assist No
Weight 15
Clutch Kit Type Stage 6 Clutch Kit (2MD)
Prop 65 Yes/No Yes
Spring Cover Included No
Release Bearing Included Yes
Pilot Bearing Included Yes
Mounting Hardware Included No
Friction Material Metallic
Clutch Disk Spline Count 20
Alignment Tool Included Yes
Release Style Conventional Release Bearing
Clutch Disk Spline Diameter 7/8
Clutch Disk Diameter 210
Alignment Tool Model AT59
🚗 Compatible with
5 vehicles are compatible with this product
Year Make Model
2002 Honda Civic
2003 Honda Civic
2004 Honda Civic
2005 Honda Civic
2001 Honda Civic
