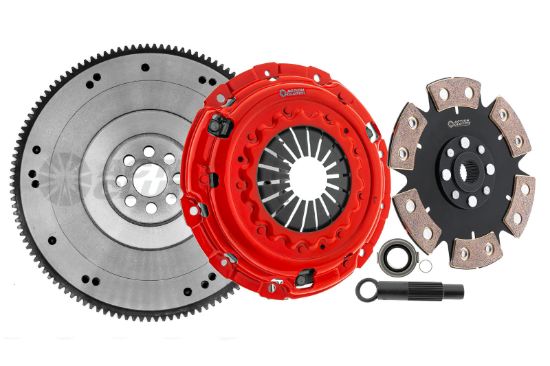

Action Clutch Transmission Clutch Kit - ACR-0670-OEHD

Name: Action Clutch Transmission Clutch Kit - ACR-0670-OEHD
SKU: ACR-0670-OEHD
Price: 869.96 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$869.96

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (2MD) for Honda Civic SI 2012-2015 2.4L (K24Z7) OE HD Flywheel

Products specifications

Attribute name	Attribute value
Prop 65 Yes/No	Yes
Pressure Plate Model	HCC539HD R 9.7KN
Clutch Disk Spline Diameter	1 1/32
Clutch Disk Diameter	215
Alignment Tool Model	AT78
Flywheel Model	AC102-OEHD
Pilot Bearing Model	22103-PNA-004
Release Bearing Model	RB-0313
Clutch Disk Model	ACR-CB6-215 1 1/32X24T-R
Clutch Kit Type	Stage 6 Clutch Kit (2MD)
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Flywheel Style	OEHD Flywheel
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Installation Care	Tuning / Reflash not Required.
Release Style	Conventional Release Bearing
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Clutch Disk Spline Count	24

🚗 Compatible with

4 vehicles are compatible with this product

Year	Make	Model
2012	Honda	Civic
2013	Honda	Civic
2014	Honda	Civic
2015	Honda	Civic
