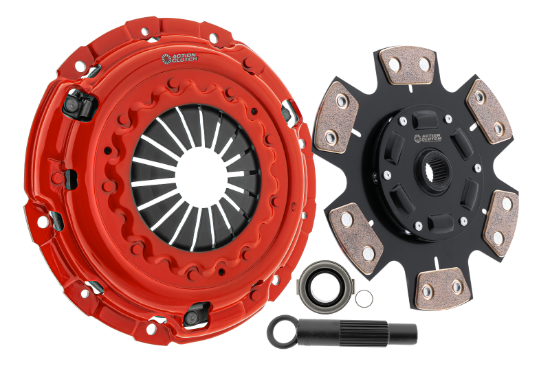

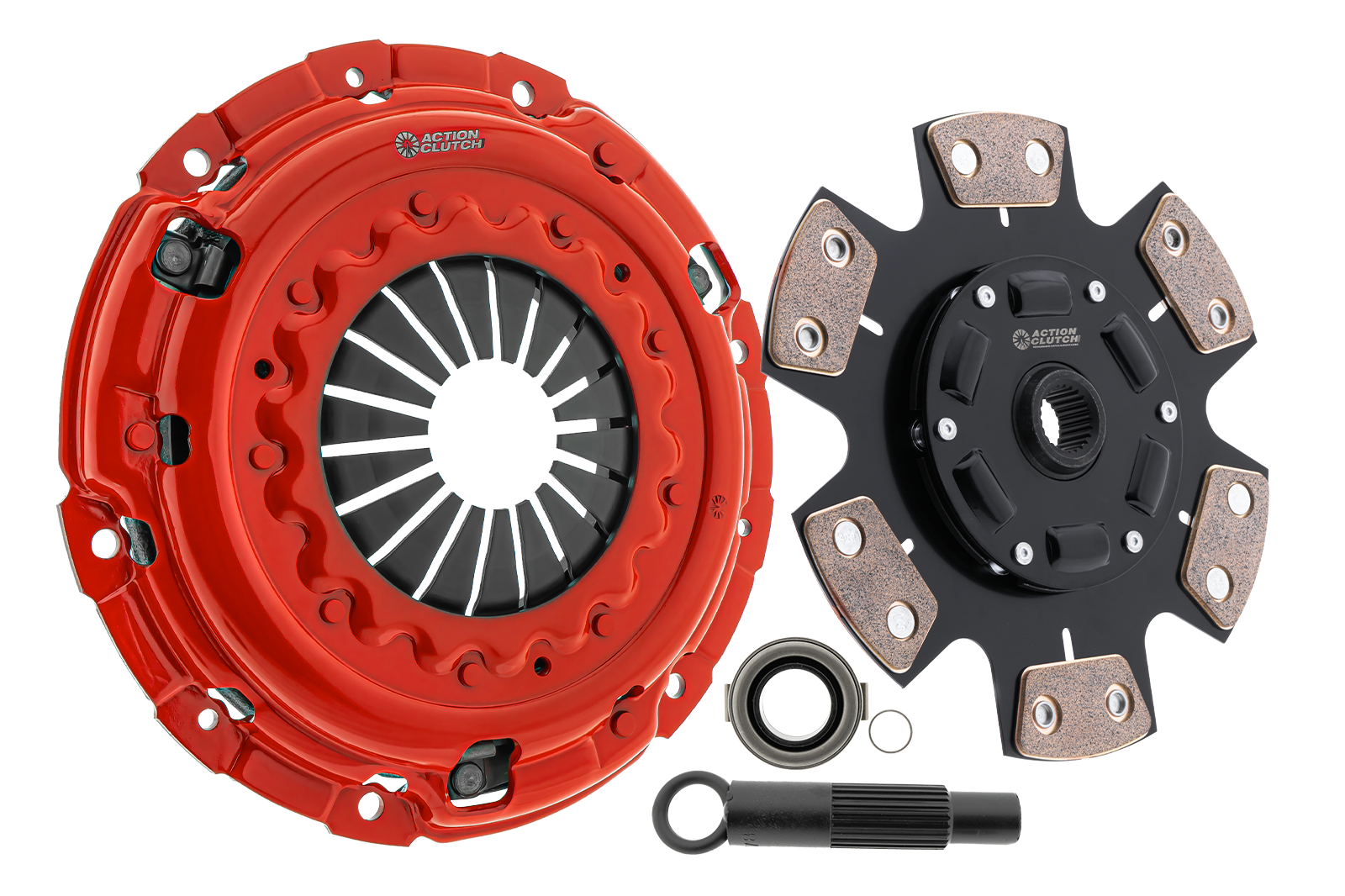

Action Clutch Transmission Clutch Kit - ACR-0788

Name: Action Clutch Transmission Clutch Kit - ACR-0788
SKU: ACR-0788
Price: 536.25 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$536.25

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1MS) for Lexus IS300 2002-2005 3.0L (2JZ-GE) W55

Products specifications

Attribute name	Attribute value
Installation Care	This kit will NOT work with a factory Dual Mass and requires a single mass flywheel.
Clutch Disk Spline Diameter	1 1/8
Clutch Disk Diameter	240
Alignment Tool Model	AT11
Pilot Bearing Model	PB-6201
Release Bearing Model	RB-0213
Pressure Plate Model	TYC908HD 7.5KN R
Clutch Disk Model	ACR-CB6-240 1 1/8X21T-S
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Alignment Tool Included	Yes
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	21
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Weight	21
Clutch Kit Type	Stage 3 Clutch Kit (1MS)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes

🚗 Compatible with

4 vehicles are compatible with this product
