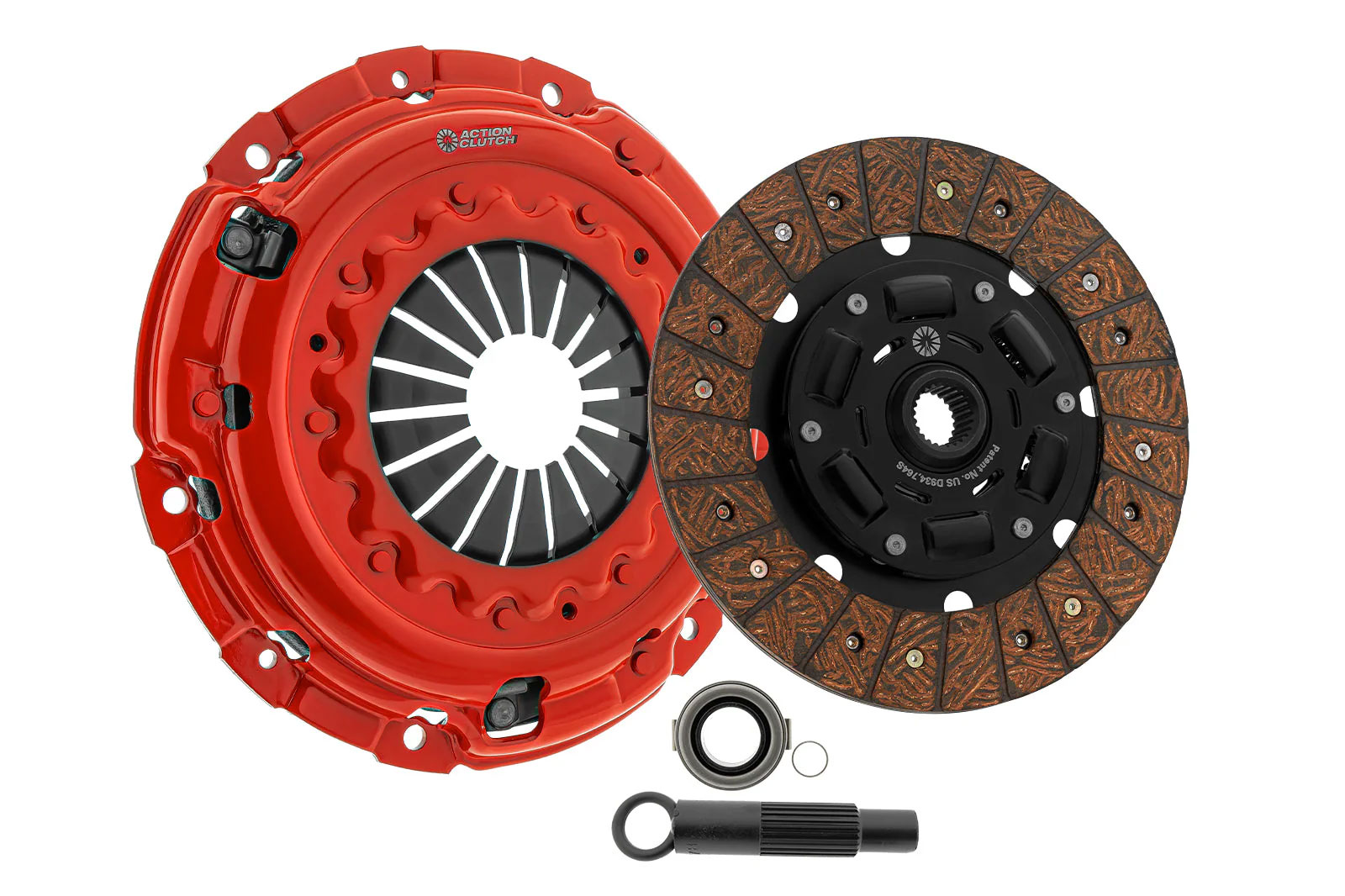

Action Clutch Transmission Clutch Kit - ACR-0822

Name: Action Clutch Transmission Clutch Kit - ACR-0822
SKU: ACR-0822
Price: 566.50 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$566.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1SC) for Mazda 5 2006-2010 2.3L DOHC (23EW)

Products specifications

Attribute name	Attribute value
Release Bearing Model	RAC2260
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Kevlar
Clutch Disk Spline Count	22
Alignment Tool Included	Yes
Release Style	Conventional Release Bearing
Clutch Disk Spline Diameter	15/16
Clutch Disk Diameter	225
Alignment Tool Model	AT05
Pilot Bearing Model	F85265
Clutch Kit Type	Stage 2 Clutch Kit (1SC)
Pressure Plate Model	MZC4HD
Clutch Disk Model	ACR-KS-225 15/16X22T
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Sprung Segmented Kevlar Disc
Counterweight Assist	No
Weight	17

🚗 Compatible with

5 vehicles are compatible with this product
