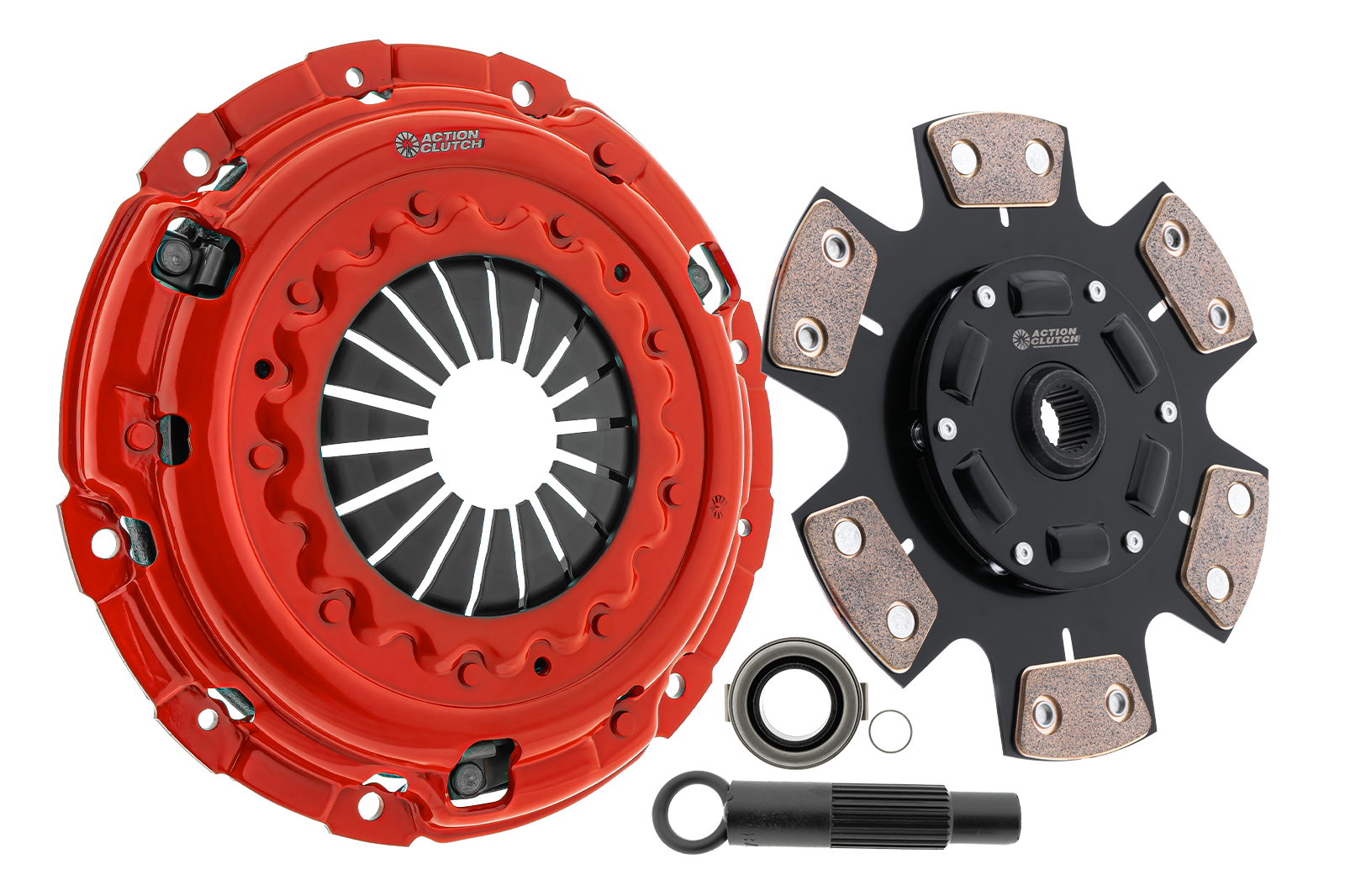

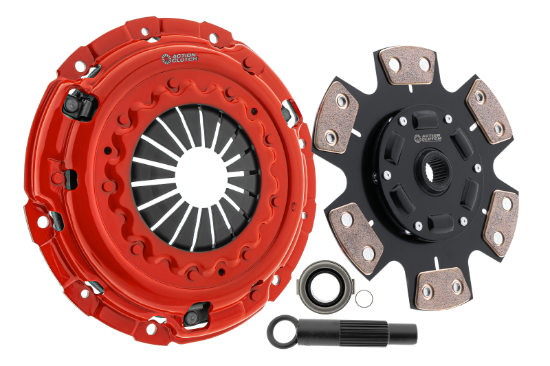

Action Clutch Transmission Clutch Kit - ACR-0872

Name: Action Clutch Transmission Clutch Kit - ACR-0872
SKU: ACR-0872
Price: 481.14 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$481.14

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1MS) for Mazda MX-5 Miata 1994-2005 1.8L DOHC (BP-ZE)

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Clutch Disk Model	ACR-CB6-225 15/16X22T-S
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Counterweight Assist	No
Weight	18
Clutch Kit Type	Stage 3 Clutch Kit (1MS)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	22
Release Style	Conventional Release Bearing
Clutch Disk Spline Diameter	15/16
Clutch Disk Diameter	225
Alignment Tool Model	AT05
Pilot Bearing Model	6202
Release Bearing Model	RB-0507
Pressure Plate Model	MZC610 REGULAR R

🚗 Compatible with

10 vehicles are compatible with this product
