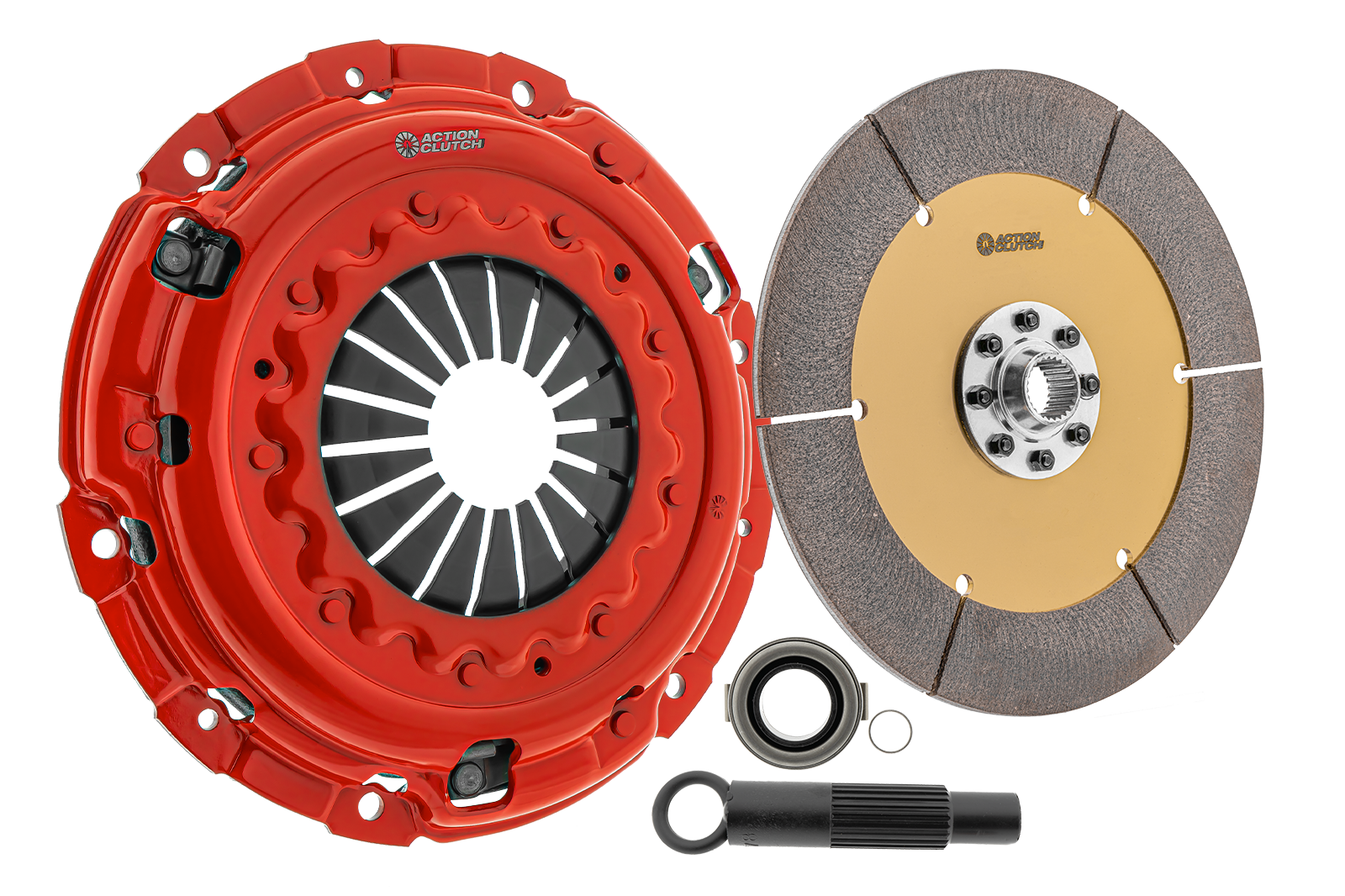

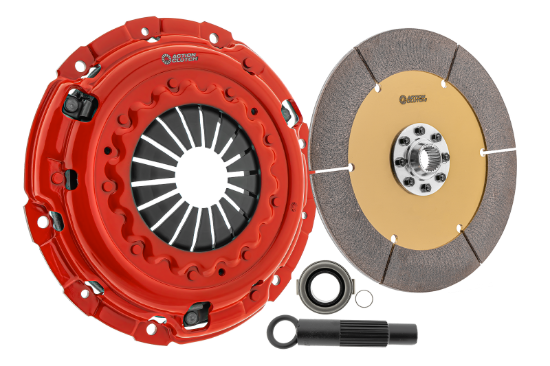

Action Clutch Transmission Clutch Kit - ACR-0876

Name: Action Clutch Transmission Clutch Kit - ACR-0876
SKU: ACR-0876
Price: 649.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$649.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Unsprung Clutch Kit for Mazda MX-5 Miata 1994-2005 1.8L DOHC (BP-ZE)

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Release Style	Conventional Release Bearing
Clutch Disk Spline Diameter	15/16
Clutch Disk Diameter	225
Alignment Tool Model	AT05
Pilot Bearing Model	6202
Release Bearing Model	RB-0507
Pressure Plate Model	MZC610HD R
Clutch Disk Model	ACR-IRN-225 15/16X22T-R
Spring Cover Included	No
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Sintered Iron
Clutch Disk Spline Count	22
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Unsprung American Sintered Iron Disc
Counterweight Assist	No
Weight	18
Clutch Kit Type	Ironman Unsprung Clutch Kit
Prop 65 Yes/No	Yes

🚗 Compatible with

10 vehicles are compatible with this product
