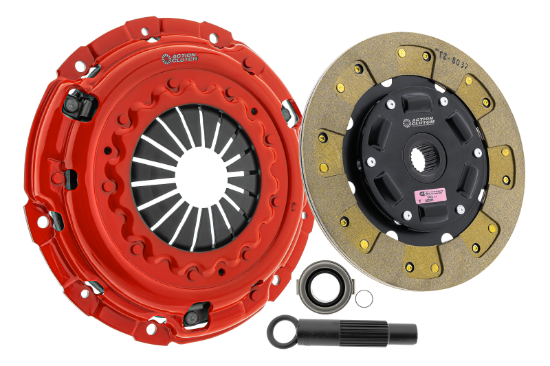

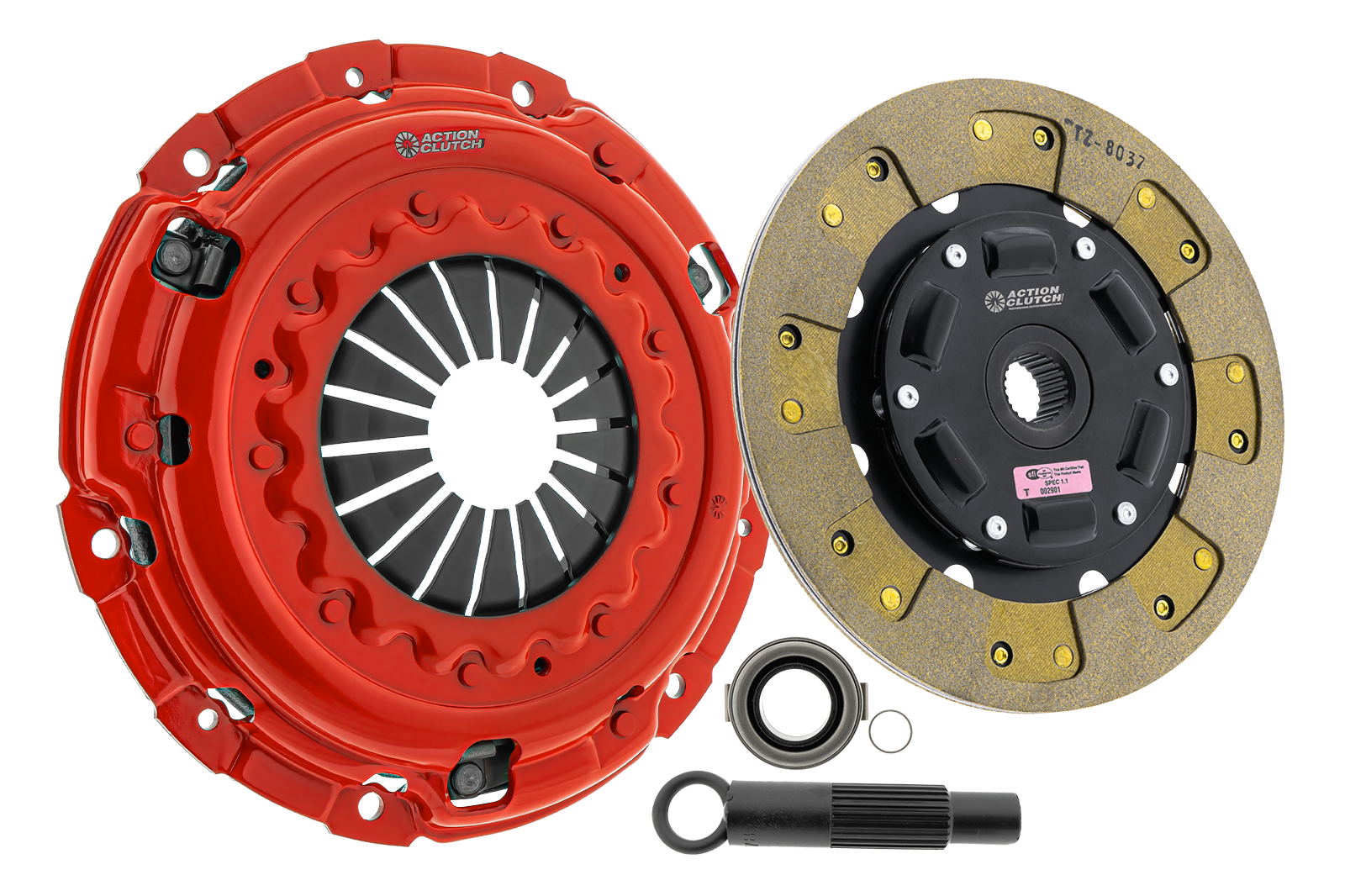

Action Clutch Transmission Clutch Kit - ACR-0878-KS

Name: Action Clutch Transmission Clutch Kit - ACR-0878-KS
SKU: ACR-0878-KS
Price: 574.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$574.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1KS) for Mazda MX-5 Miata 2006-2015 2.0L DOHC (MZR LF-VE) 5 Speed

Products specifications

Attribute name	Attribute value
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Clutch Disk Spline Diameter	15/16
Weight	17
Clutch Disk Spline Count	22
Clutch Disk Diameter	225
Pilot Bearing Model	6202
Clutch Disk Model	ACR-KS-225 15/16X22T
Alignment Tool Model	AT05
Release Style	Conventional Release Bearing
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Friction Material	Kevlar
Pressure Plate Model	MZC619HD R
Counterweight Assist	No
Flywheel Included	No
Mounting Hardware Included	No
Release Bearing Model	RB-0514
Package Contents	Sprung Segmented Kevlar Disc
Clutch Kit Type	Stage 2 Clutch Kit (1KS)
Alignment Tool Included	Yes
Pilot Bearing Included	Yes
Prop 65 Yes/No	Yes
Release Bearing Included	Yes
Spring Cover Included	Yes
