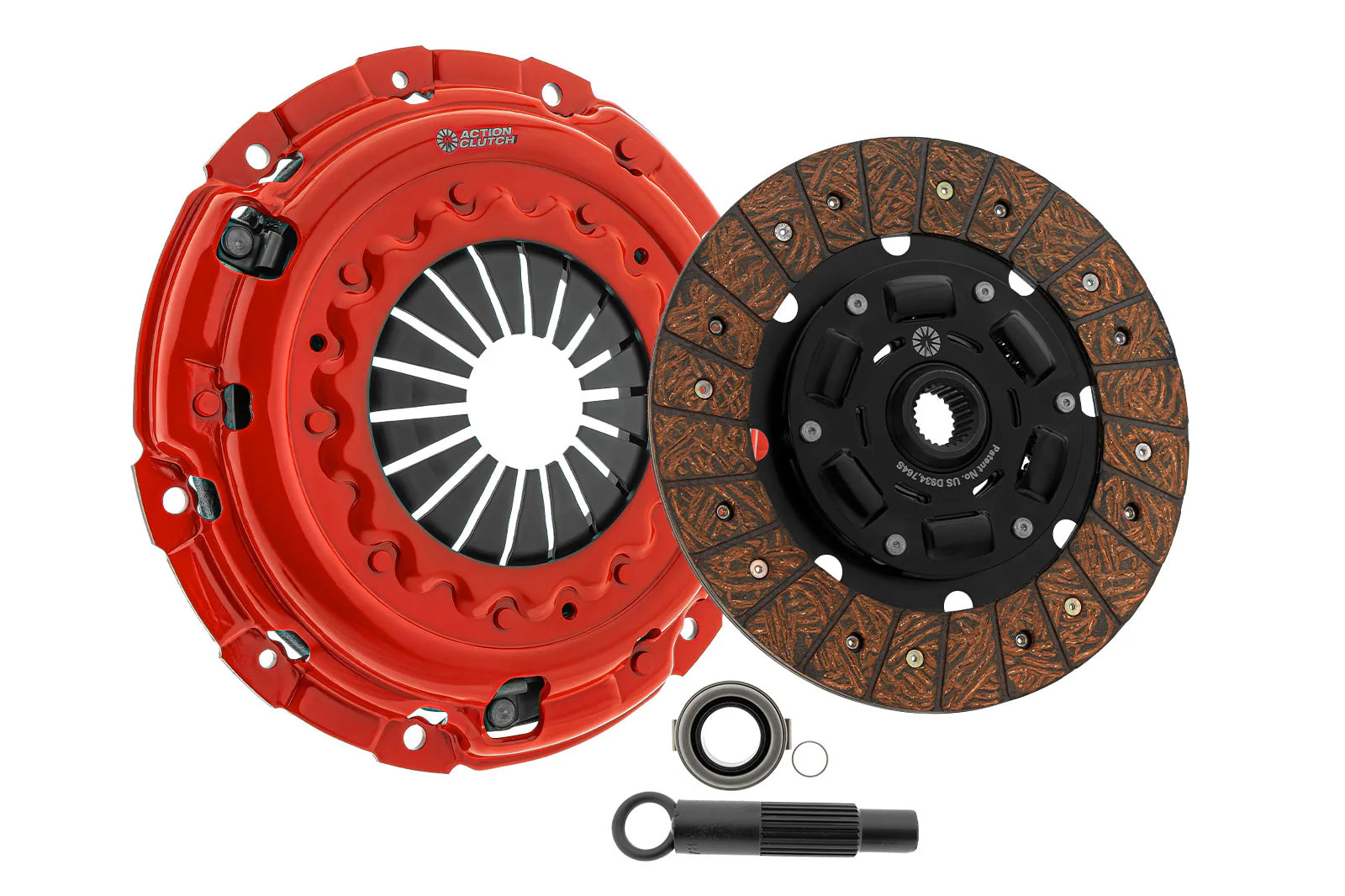

Action Clutch Transmission Clutch Kit - ACR-0941

Name: Action Clutch Transmission Clutch Kit - ACR-0941
SKU: ACR-0941
Price: 526.88 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$526.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1SC) for Mazda RX-3 1972-1978 1.1L (12A, 12B)

Products specifications

Attribute name	Attribute value
Pilot Bearing Model	152016
Release Bearing Model	TK-4548
Pressure Plate Model	MZC508
Clutch Disk Model	ACR-KS-225 15/16X22T
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Sprung Segmented Kevlar Disc
Counterweight Assist	No
Weight	17
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Clutch Kit Type	Stage 2 Clutch Kit (1SC)
Alignment Tool Model	AT05
Clutch Disk Diameter	225
Clutch Disk Spline Diameter	15/16
Release Style	Conventional Release Bearing
Alignment Tool Included	Yes
Clutch Disk Spline Count	22
Friction Material	Kevlar

🚗 Compatible with

7 vehicles are compatible with this product
