Action Clutch Transmission Clutch Kit - ACR-0969

Name: Action Clutch Transmission Clutch Kit - ACR-0969
SKU: ACR-0969
Price: 574.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$574.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

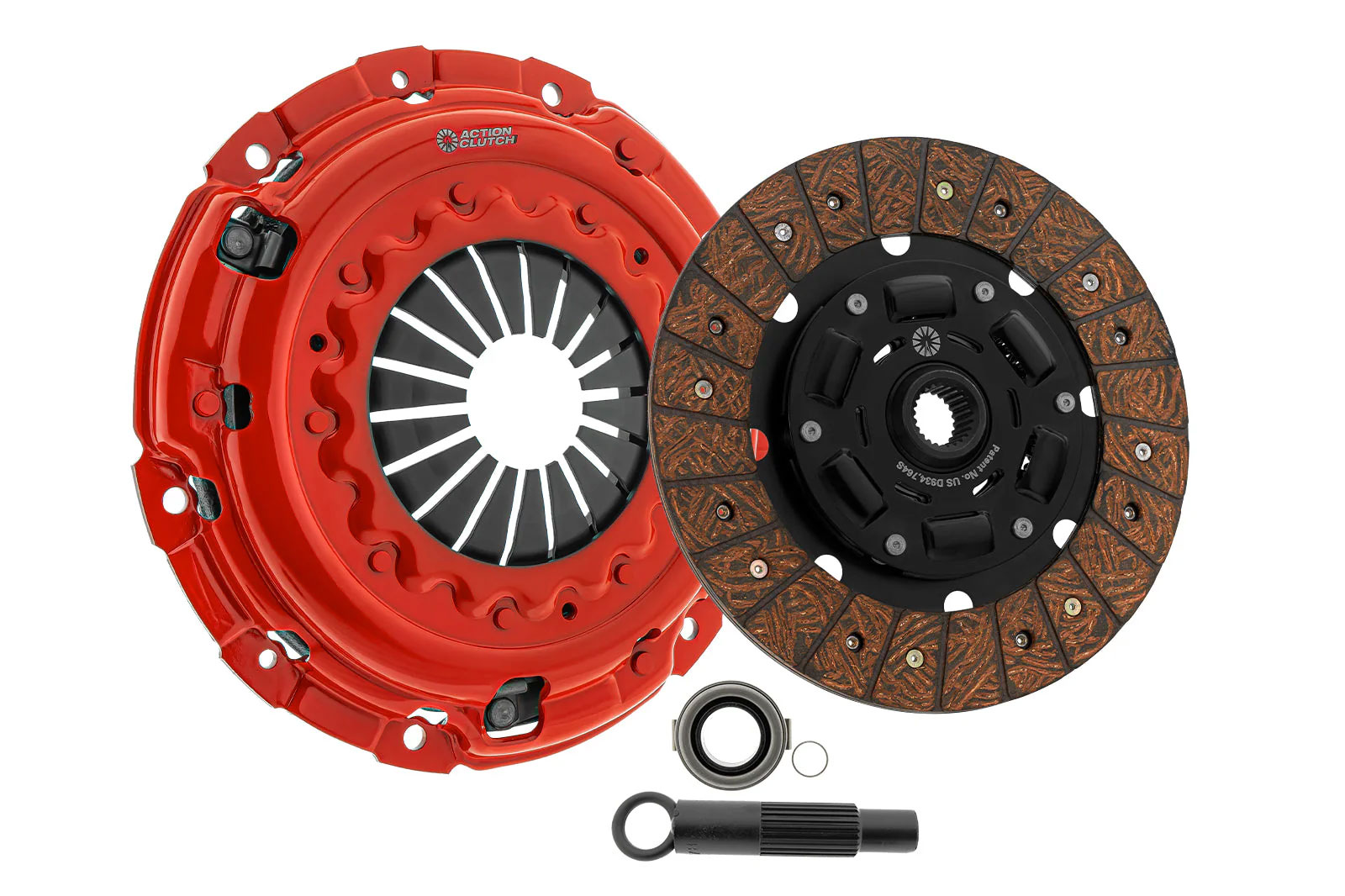

Clutch Kit (1SC) for Mazda RX-7 1986-1988 1.3L (13B-RE)

Products specifications

Attribute name	Attribute value
Pressure Plate Model	MZC544HD 7.0KN R
Clutch Disk Model	ACR-KS-235/240 1X23T
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Sprung Segmented Kevlar Disc
Counterweight Assist	No
Weight	17
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Kevlar
Clutch Disk Spline Count	23
Clutch Kit Type	Stage 2 Clutch Kit (1SC)
Release Bearing Model	RB-0514
Pilot Bearing Model	152016
Alignment Tool Model	AT03
Clutch Disk Diameter	235/240
Clutch Disk Spline Diameter	1
Release Style	Conventional Release Bearing
Alignment Tool Included	Yes

🚗 Compatible with

3 vehicles are compatible with this product
