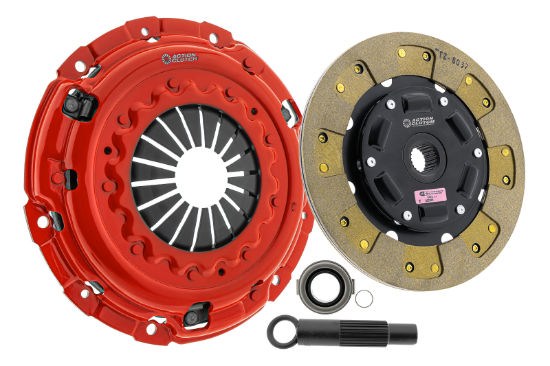

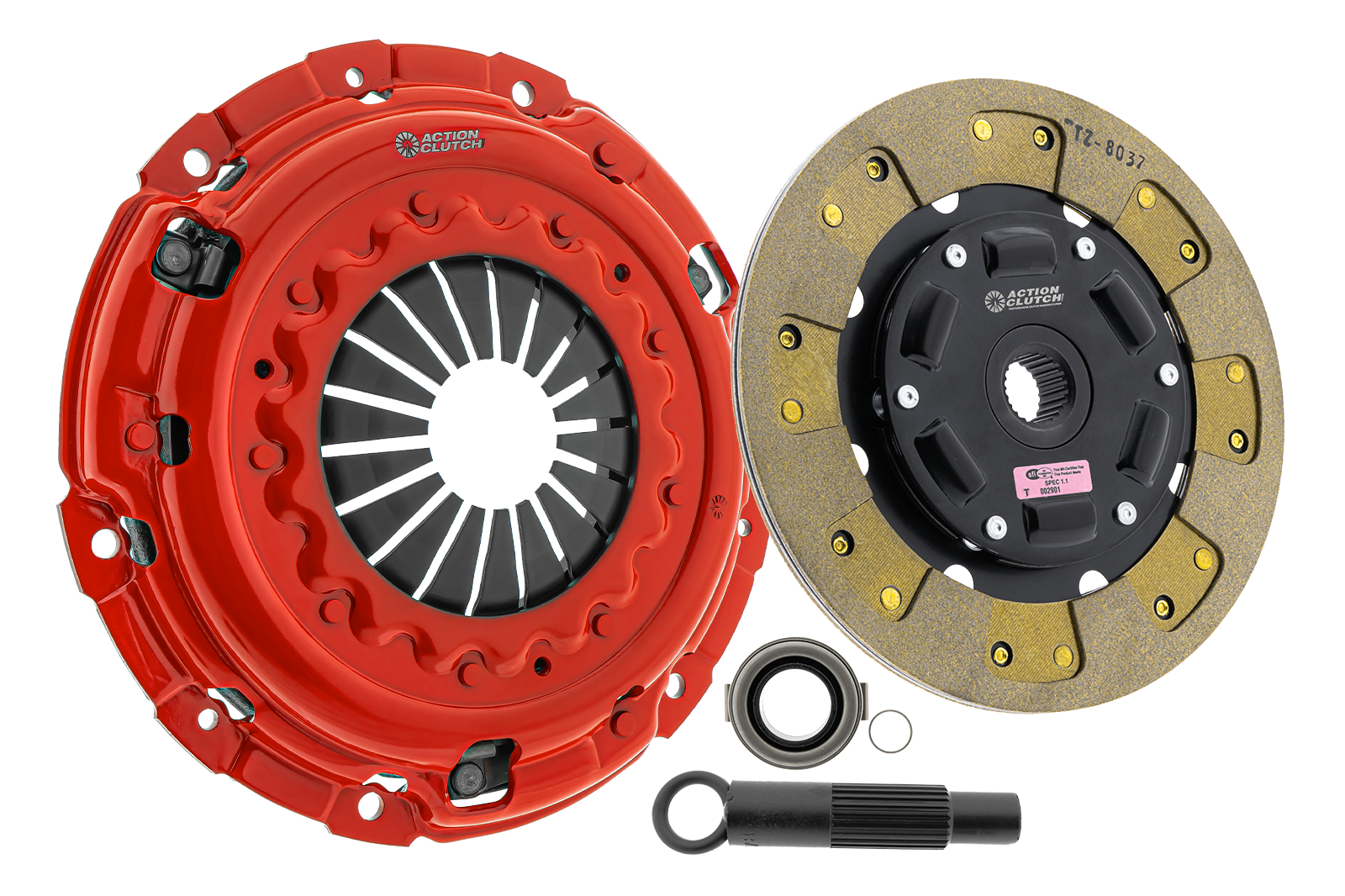

Action Clutch Transmission Clutch Kit - ACR-0969-KS

Name: Action Clutch Transmission Clutch Kit - ACR-0969-KS
SKU: ACR-0969-KS
Price: 574.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$574.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1KS) for Mazda RX-7 1986-1988 1.3L (13B-RE)

Products specifications

Attribute name	Attribute value
Clutch Disk Spline Diameter	1
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Pilot Bearing Model	152016
Weight	17
Clutch Disk Spline Count	23
Clutch Disk Diameter	235/240
Clutch Disk Model	ACR-KS-235/240 1X23T
Alignment Tool Model	AT03
Release Style	Conventional Release Bearing
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Friction Material	Kevlar
Pressure Plate Model	MZC544HD 7.0KN R
Counterweight Assist	No
Flywheel Included	No
Mounting Hardware Included	No
Release Bearing Model	RB-0514
Package Contents	Sprung Segmented Kevlar Disc
Clutch Kit Type	Stage 2 Clutch Kit (1KS)
Alignment Tool Included	Yes
Pilot Bearing Included	Yes
Prop 65 Yes/No	Yes
Release Bearing Included	Yes
Spring Cover Included	Yes
