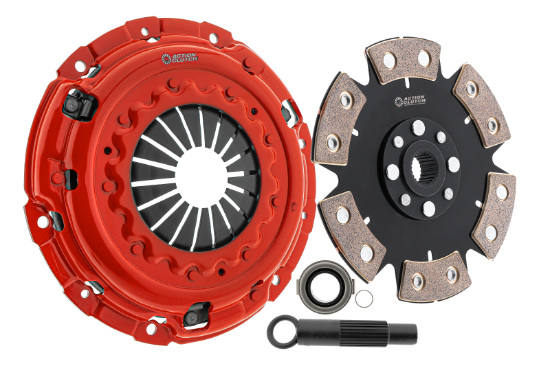

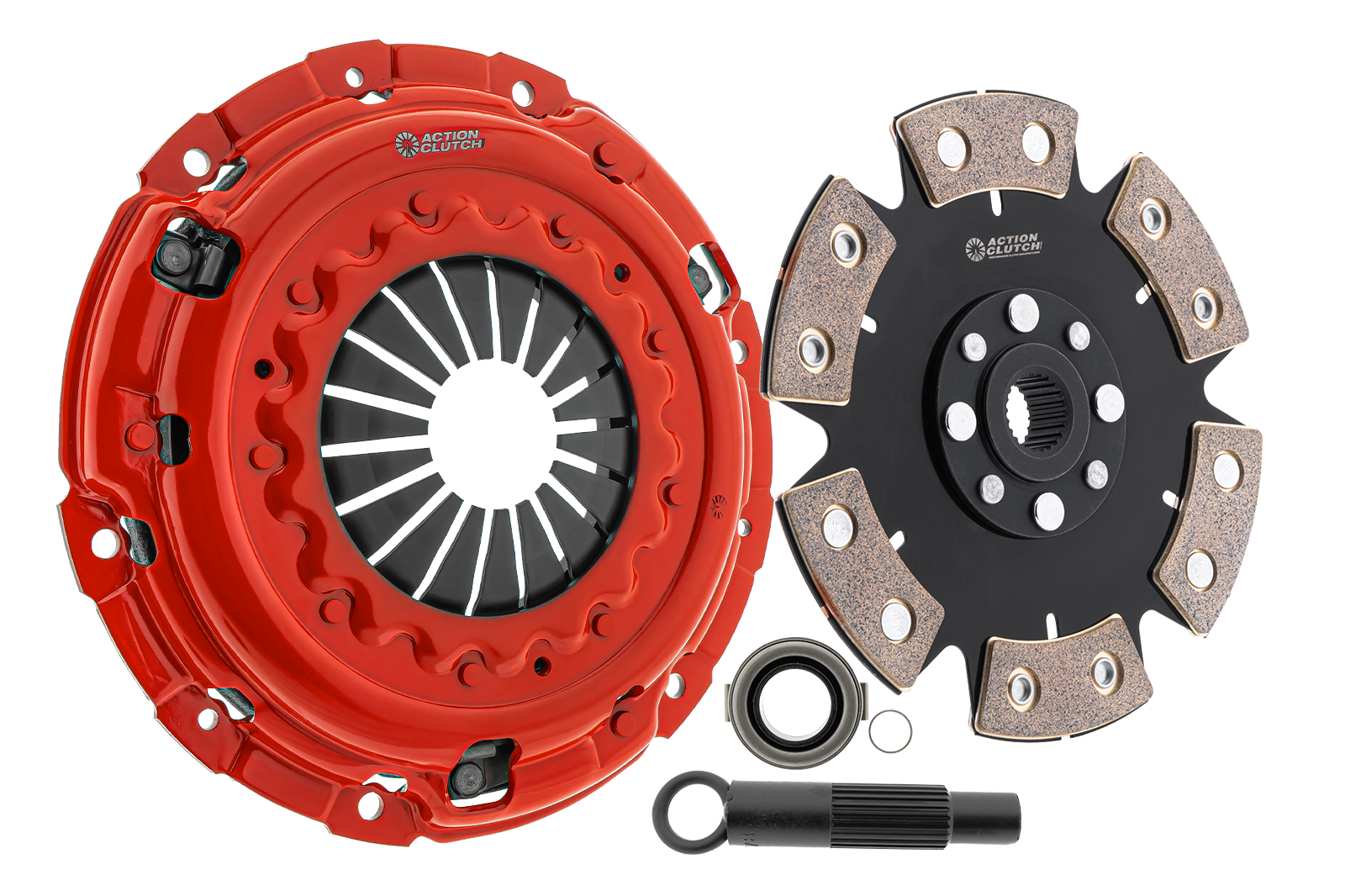

Action Clutch Transmission Clutch Kit - ACR-1057

Name: Action Clutch Transmission Clutch Kit - ACR-1057
SKU: ACR-1057
Price: 536.25 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$536.25

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (2MD) for Mitsubishi Eclipse 1990-1994 2.0L (4G63) 2WD

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Release Style	Conventional Release Bearing
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	215
Alignment Tool Model	AT59
Release Bearing Model	RB-0402
Pressure Plate Model	MBC516
Clutch Disk Model	ACR-CB6-215 7/8X20T-R
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Counterweight Assist	No
Weight	17
Clutch Kit Type	Stage 6 Clutch Kit (2MD)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	20

🚗 Compatible with

5 vehicles are compatible with this product

Year	Make	Model
1990	Mitsubishi	Eclipse
1991	Mitsubishi	Eclipse
1992	Mitsubishi	Eclipse
1993	Mitsubishi	Eclipse
1994	Mitsubishi	Eclipse
