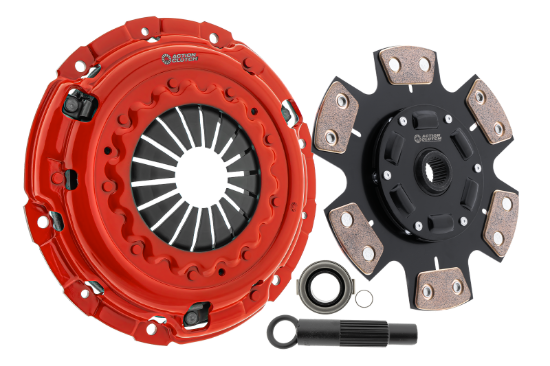

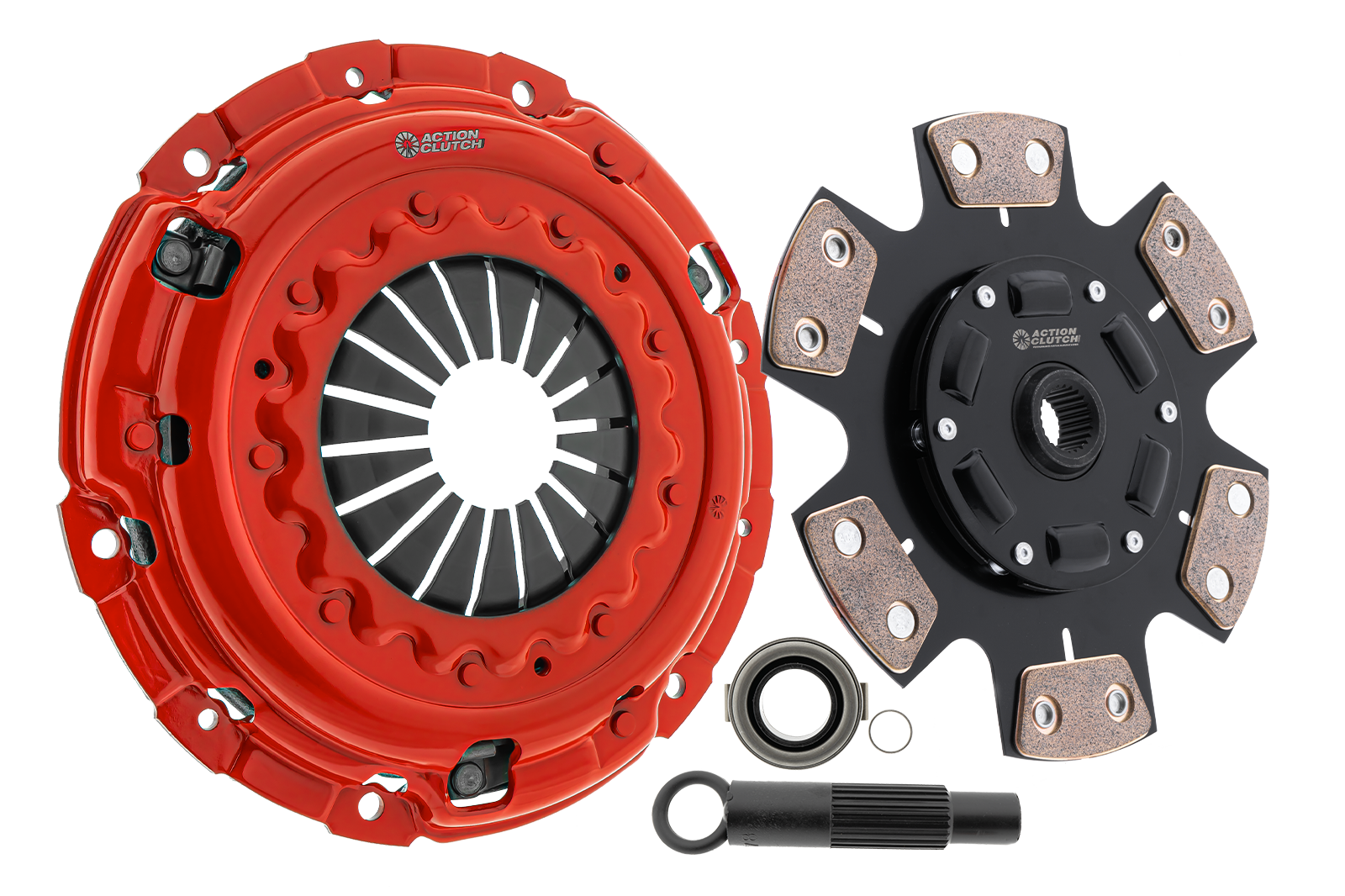

Action Clutch Transmission Clutch Kit - ACR-1075

Name: Action Clutch Transmission Clutch Kit - ACR-1075
SKU: ACR-1075
Price: 445.50 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$445.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1MS) for Mitsubishi Eclipse 2000-2005 2.4L SOHC (4G64) FWD

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	225
Alignment Tool Model	AT59
Release Bearing Model	RB-0402
Pressure Plate Model	MBC536HD 9.0KN R
Clutch Disk Model	ACR-CB6-225 7/8X20T-NOSE DOWN-S
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Weight	19
Counterweight Assist	No
Clutch Kit Type	Stage 3 Clutch Kit (1MS)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	20

🚗 Compatible with

6 vehicles are compatible with this product
