Action Clutch Transmission Clutch Kit - ACR-1139

Name: Action Clutch Transmission Clutch Kit - ACR-1139
SKU: ACR-1139
Price: 717.25 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$717.25

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

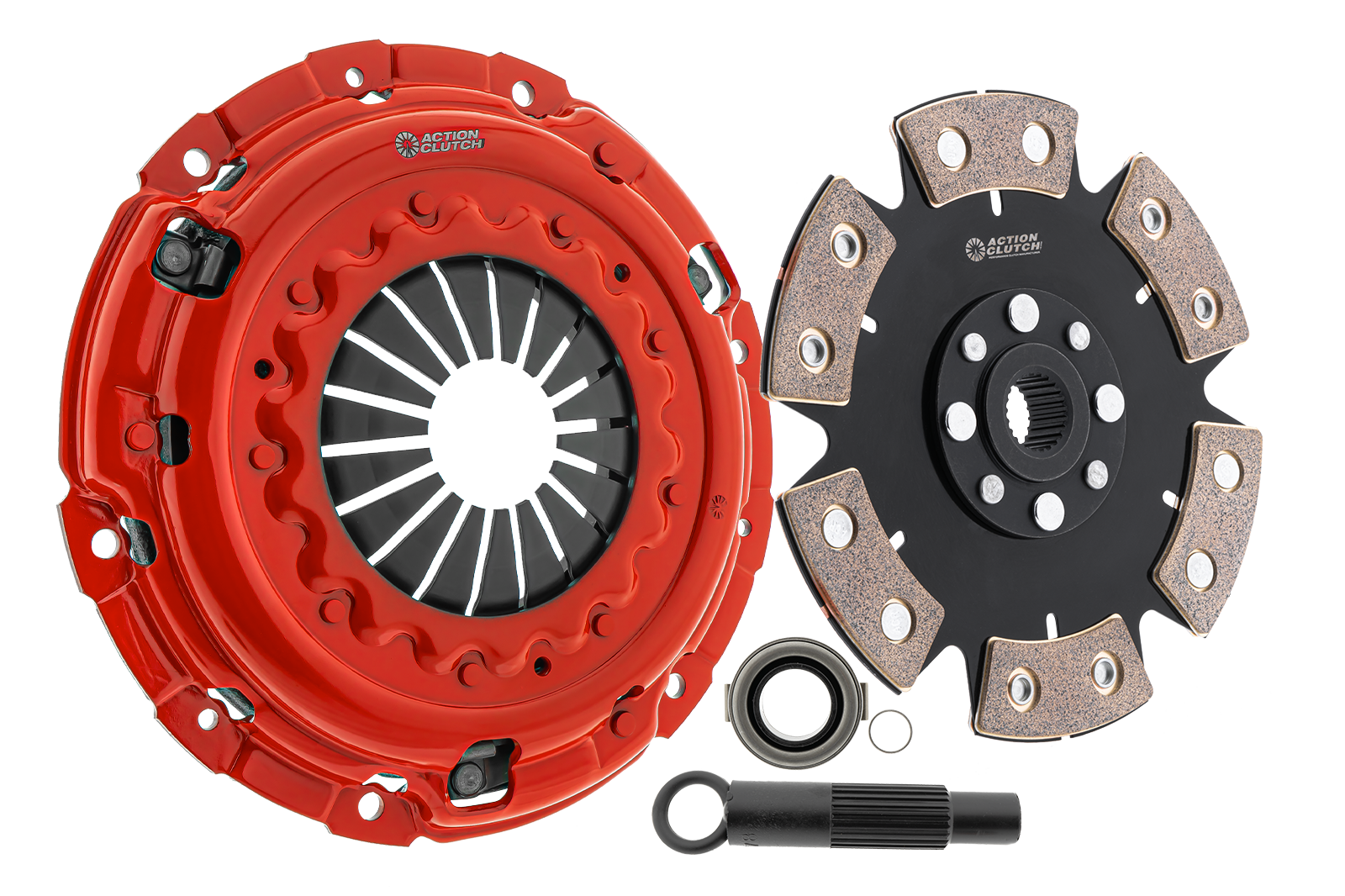

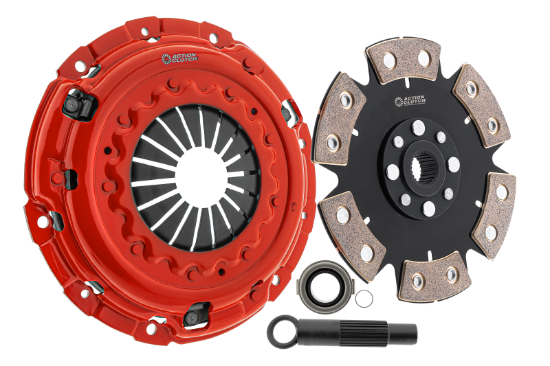

Clutch Kit (1MD) for Mitsubishi Lancer Evo 4-6 1996-2001 2.0L DOHC (4G63)

Products specifications

Attribute name	Attribute value
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon in sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Clutch Disk Model	ACR-CB6-240 1X23T-R
Pressure Plate Model	MBC618 REGULAR R
Release Bearing Model	BRG601
Alignment Tool Model	AT03
Clutch Disk Diameter	240
Clutch Disk Spline Diameter	1
Clutch Disk Spline Count	23
Prop 65 Yes/No	Yes
Clutch Kit Type	Stage 4 Clutch Kit (1MD)
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Release Style	Conventional Release Bearing
Installation Care	Must use ACR Racing Flywheel AC112FW
