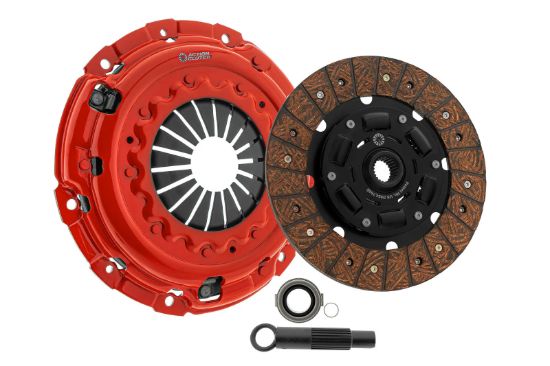

Action Clutch Transmission Clutch Kit - ACR-1228

Name: Action Clutch Transmission Clutch Kit - ACR-1228
SKU: ACR-1228
Price: 499.95 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$499.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (1SC) for Mitsubishi Mirage 1993-2002 1.8L SOHC (4G93)

Products specifications

Attribute name	Attribute value
Counterweight Assist	No
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Kevlar
Clutch Disk Spline Count	20
Alignment Tool Included	Yes
Release Style	Conventional Release Bearing
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	215
Alignment Tool Model	AT59
Release Bearing Model	RB-0402
Pressure Plate Model	NSC573 (2200-2400 LBS)
Clutch Disk Model	ACR-KS-215 7/8X20T
Break-in Care	1,000 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents	Sprung Segmented Kevlar Disc
Clutch Kit Type	Stage 2 Clutch Kit (1SC)

🚗 Compatible with

10 vehicles are compatible with this product
