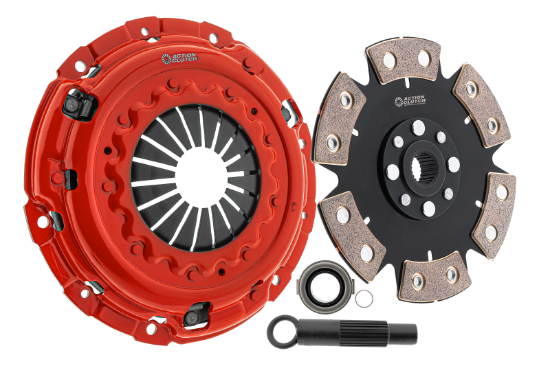

Action Clutch Transmission Clutch Kit - ACR-1253

Name: Action Clutch Transmission Clutch Kit - ACR-1253
SKU: ACR-1253
Price: 566.50 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$566.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

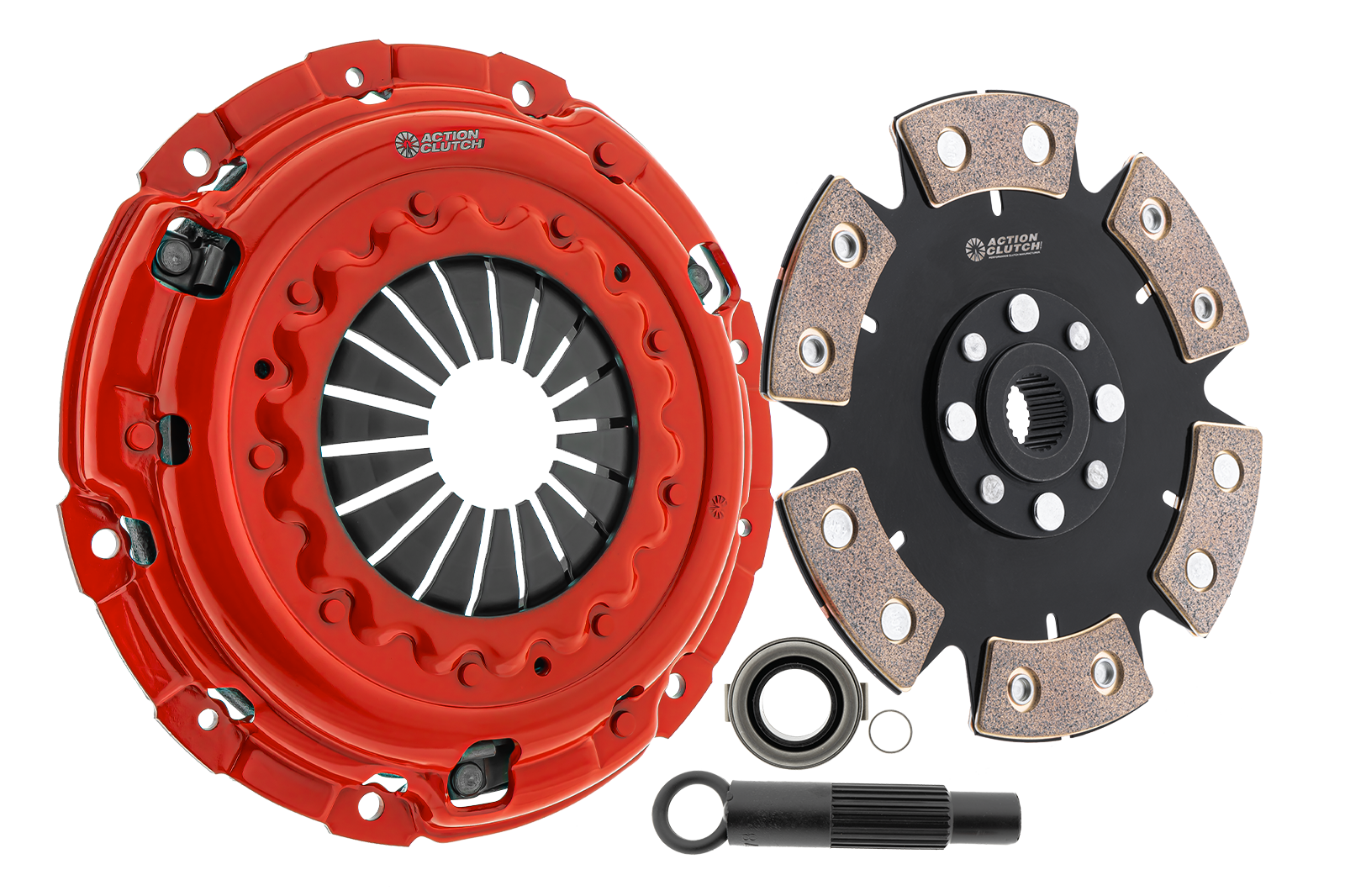

Clutch Kit (2MD) for Nissan 200SX 1995-1998 1.6L DOHC (GA16DE)

Products specifications

Attribute name	Attribute value
Clutch Disk Model	ACR-CB6-190 13/16X18T-R
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Clutch Kit Type	Stage 6 Clutch Kit (2MD)
Prop 65 Yes/No	Yes
Spring Cover Included	No
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	18
Alignment Tool Included	Yes
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	13/16
Clutch Disk Diameter	190
Alignment Tool Model	AT21
Pilot Bearing Model	PB22
Release Bearing Model	RB-0106
Pressure Plate Model	NSC541

🚗 Compatible with

4 vehicles are compatible with this product

Year	Make	Model
1995	Nissan	200SX
1996	Nissan	200SX
1997	Nissan	200SX
1998	Nissan	200SX
