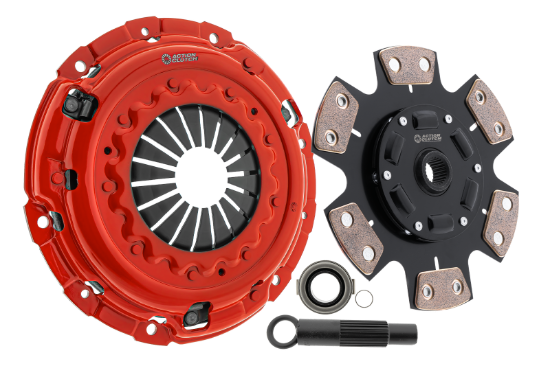

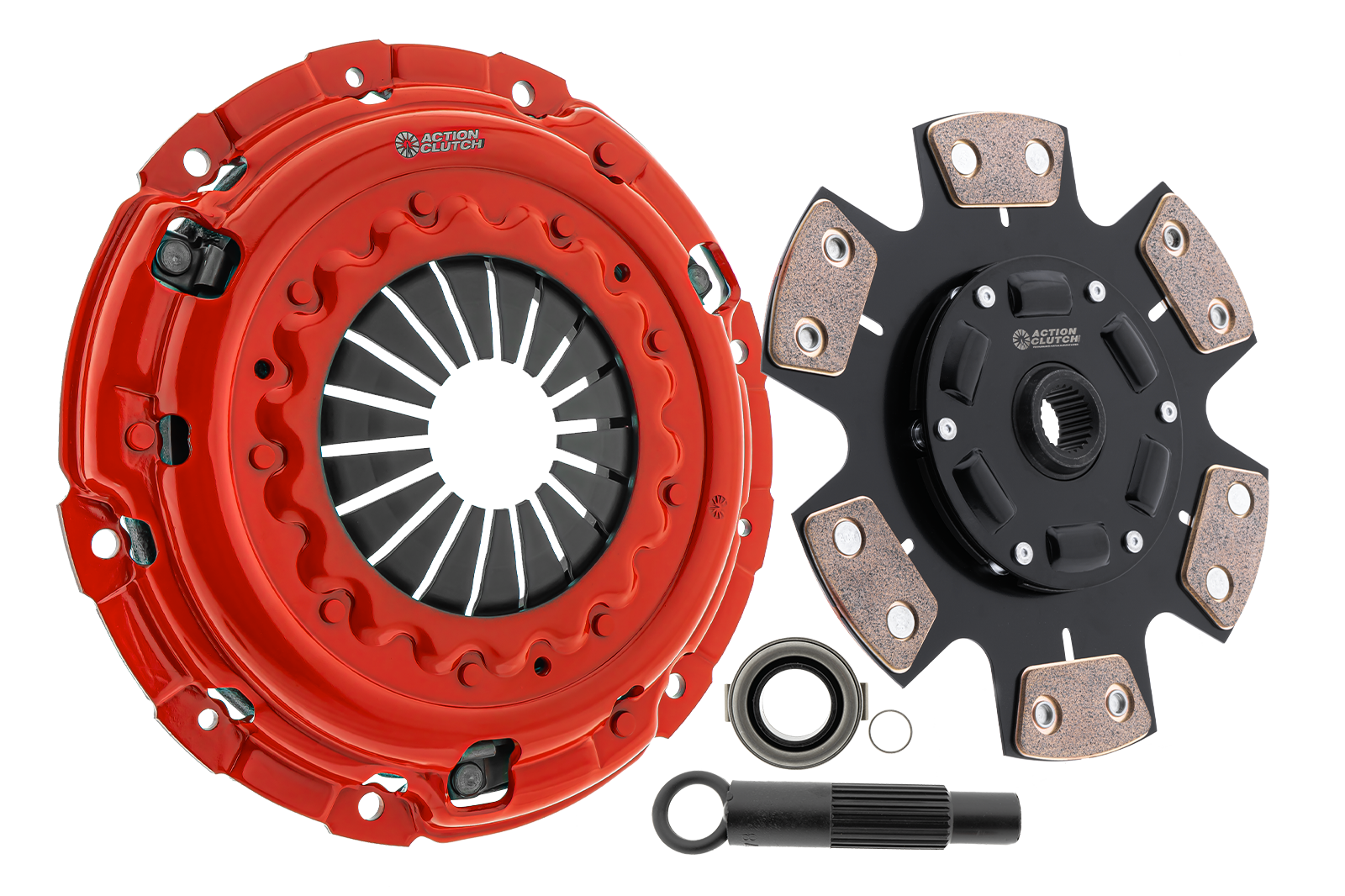

Action Clutch Transmission Clutch Kit - ACR-1268

Name: Action Clutch Transmission Clutch Kit - ACR-1268
SKU: ACR-1268
Price: 506.00 USD
Availability: InStock

Clutch Kit

Manufacturer: Action Clutch

$506.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Clutch Kit (2MS) for Nissan 200SX 1977-1981 2.0L (L20B)

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	1
Clutch Disk Diameter	200
Alignment Tool Model	AT01
Pilot Bearing Model	PB22
Release Bearing Model	BRG016
Pressure Plate Model	NSC511
Clutch Disk Model	ACR-CB6-200 1X24T-S
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Clutch Kit Type	Stage 5 Clutch Kit (2MS)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Release Bearing Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	24

🚗 Compatible with

5 vehicles are compatible with this product
