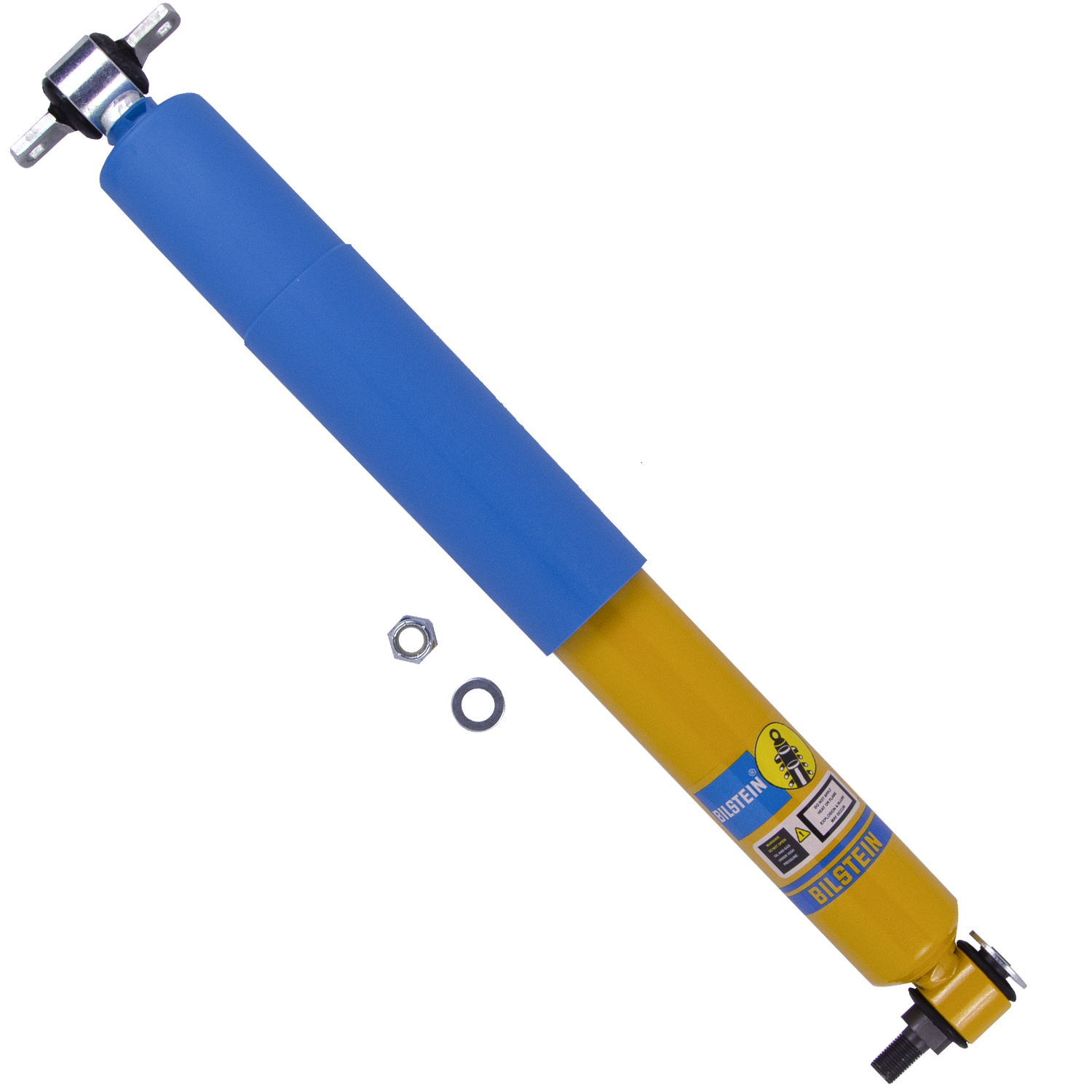

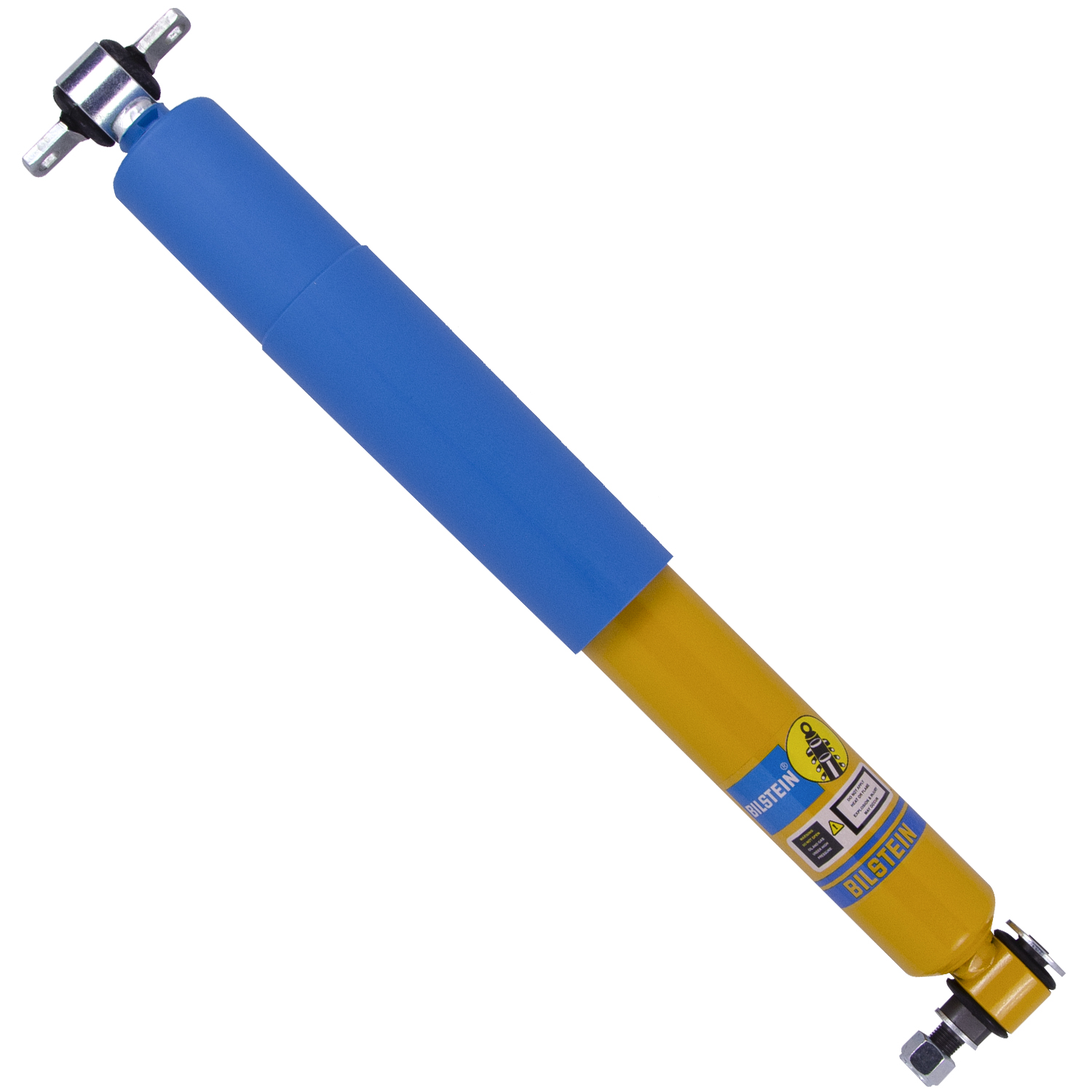

Bilstein Suspension Shock Absorber - 24-291699

Name: Bilstein Suspension Shock Absorber - 24-291699
SKU: 24-291699
Price: 92.49 USD
Availability: OutOfStock

AK Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: 24-291699

$92.49

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Products specifications

Attribute name	Attribute value
Upper Mount Type	Bar Pin
Extended Length (IN)	20.28
Body Design	Stock Mount Smooth Body
Piston Type	Linear
Rebound @0.26m/s	1130
Collapsed Length (IN)	13.11
Internal Design	Monotube
Finish	Yellow Paint
Series	AK Series
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @0.52m/s	1035
Rebound @0.52m/s	2135
Spring Hardware	N/A
Piston Diameter	46mm
Collapsed Length (mm)	333.0
Shaft Diameter	11mm
Stroke/Travel Length (mm)	182.1
Stroke/Travel Length (IN)	7.17
Lower Mount Type	Cantilever
Body Material	Steel
Adjustable Damping	Non-Adjustable
Boot Included	Blue Straight
Extended Length (mm)	515.0
Compression @0.26m/s	630
Country of Origin	MX
Condition	New
Quantity per Application	2
