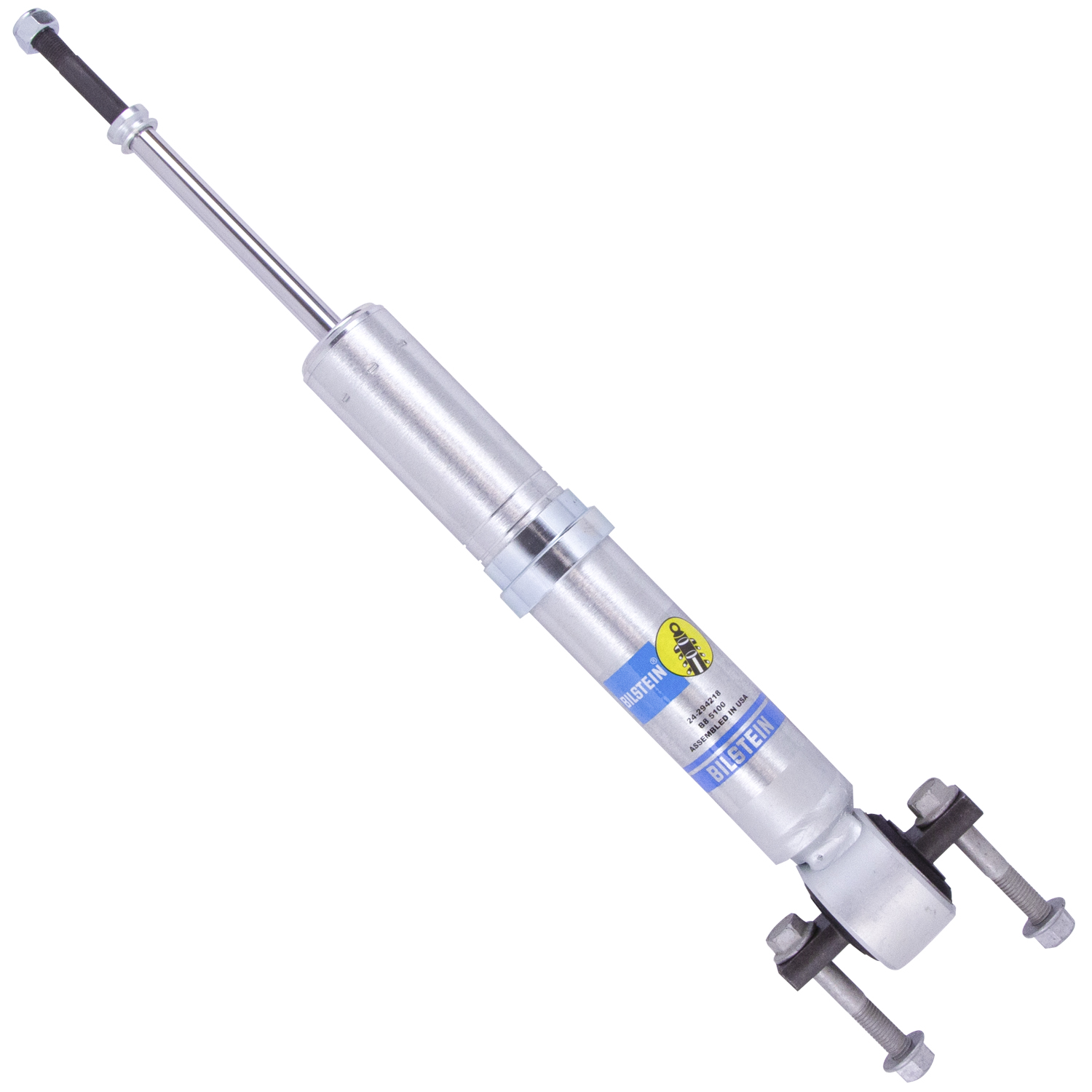

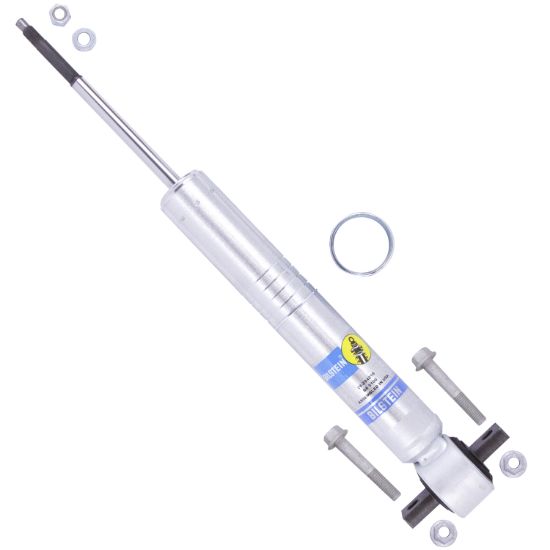

Bilstein Suspension Shock Absorber - 24-294218

Name: Bilstein Suspension Shock Absorber - 24-294218
SKU: 24-294218
Price: 168.00 USD
Availability: OutOfStock

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: 24-294218

Old price: $235.00

Price: $168.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Products specifications

Attribute name	Attribute value
Finish	Zinc Plated
Upper Mount Type	Stem
Reservoir	No
Internal Design	Monotube
Lower Mount Type	Crossbar
Collapsed Length (mm)	370.5
Boot Included	No
Extended Length (IN)	19.26
Body Design	Snap Ring Grooved Body (Coilover)
Extended Length (mm)	489.2
Adjustable Damping	Non-Adjustable
Spring Seat Included	No - Reuse OEM
Segment	Light Truck
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	46mm
Stroke/Travel Length (mm)	118.6
Shaft Diameter	14mm
Stroke/Travel Length (IN)	4.67
Series	B8 5100 (Ride Height Adjustable)
Collapsed Length (IN)	14.59
Country of Origin	US
Condition	New
Quantity per Application	2
