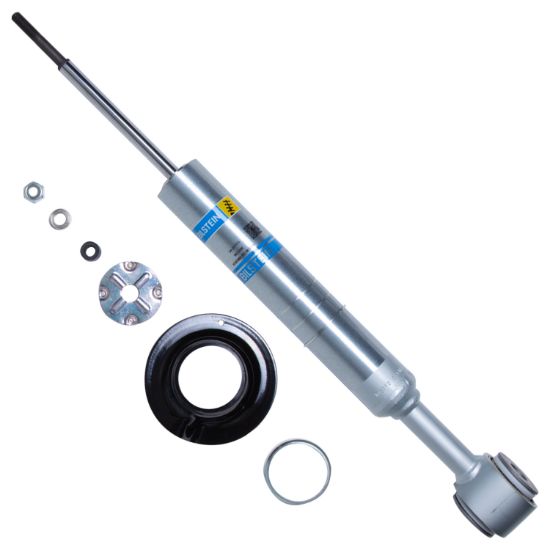

Bilstein Suspension Shock Absorber - 24-317771

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-317771
Old price: $235.00
$168.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Products specifications

Attribute name Attribute value
Segment Light Truck
Extended Length (mm) 556.7
Body Design Snap Ring Grooved Body (Coilover)
Upper Mount Type Stem
Series B8 5100 (Ride Height Adjustable)
Extended Length (IN) 21.92
Lower Mount Type Eye 20.3mm
PartType Shocks / Struts
Internal Design Monotube
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 16.34
Reservoir No
Finish Zinc Plated
Adjustable Damping Non-Adjustable
Spring Seat Included Yes
Boot Included No
Piston Diameter 46mm
Collapsed Length (mm) 415.0
Stroke/Travel Length (mm) 141.7
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.58
Country of Origin US
Condition New
Quantity per Application 2
