Bilstein Suspension Shock Absorber - 24-323680

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-323680
Old price: $241.00
$173.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

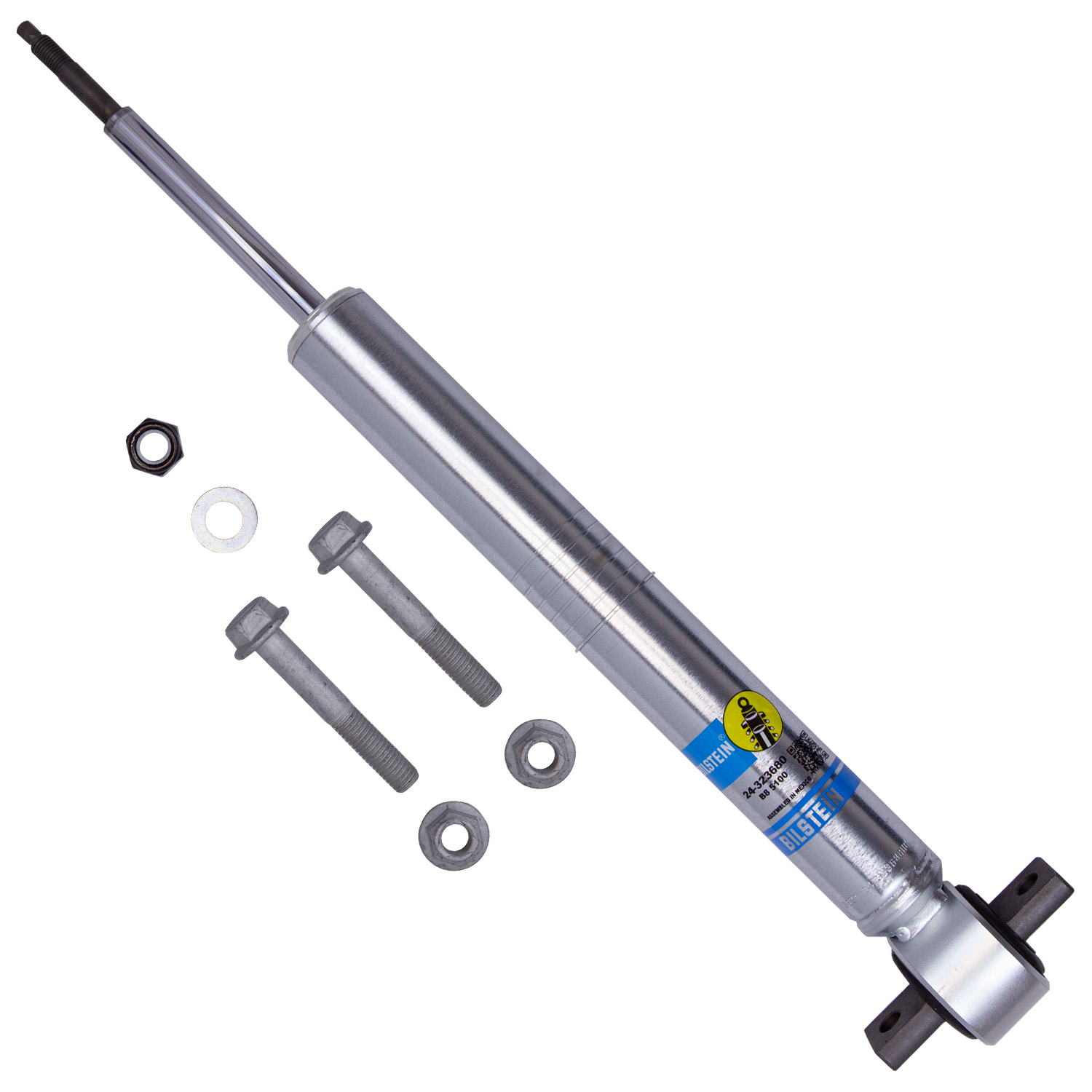

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Products specifications

Attribute name Attribute value
Body Design Snap Ring Grooved Body (Coilover)
Internal Design Monotube
Adjustable Damping Non-Adjustable
Collapsed Length (IN) 16.85
Finish Zinc Plated
Series B8 5100 (Ride Height Adjustable)
Upper Mount Type Stem
Boot Included No
Extended Length (mm) 564.5
Reservoir No
Extended Length (IN) 22.22
Lower Mount Type Crossbar
Spring Seat Included No - Reuse OEM
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (mm) 428.0
Stroke/Travel Length (mm) 136.4
Shaft Diameter 18mm
Stroke/Travel Length (IN) 5.37
Country of Origin MX
Condition New
Quantity per Application 2
