Bilstein Suspension Shock Absorber - 25-176230

B8 5165 Classic - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-176230
Old price: $237.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

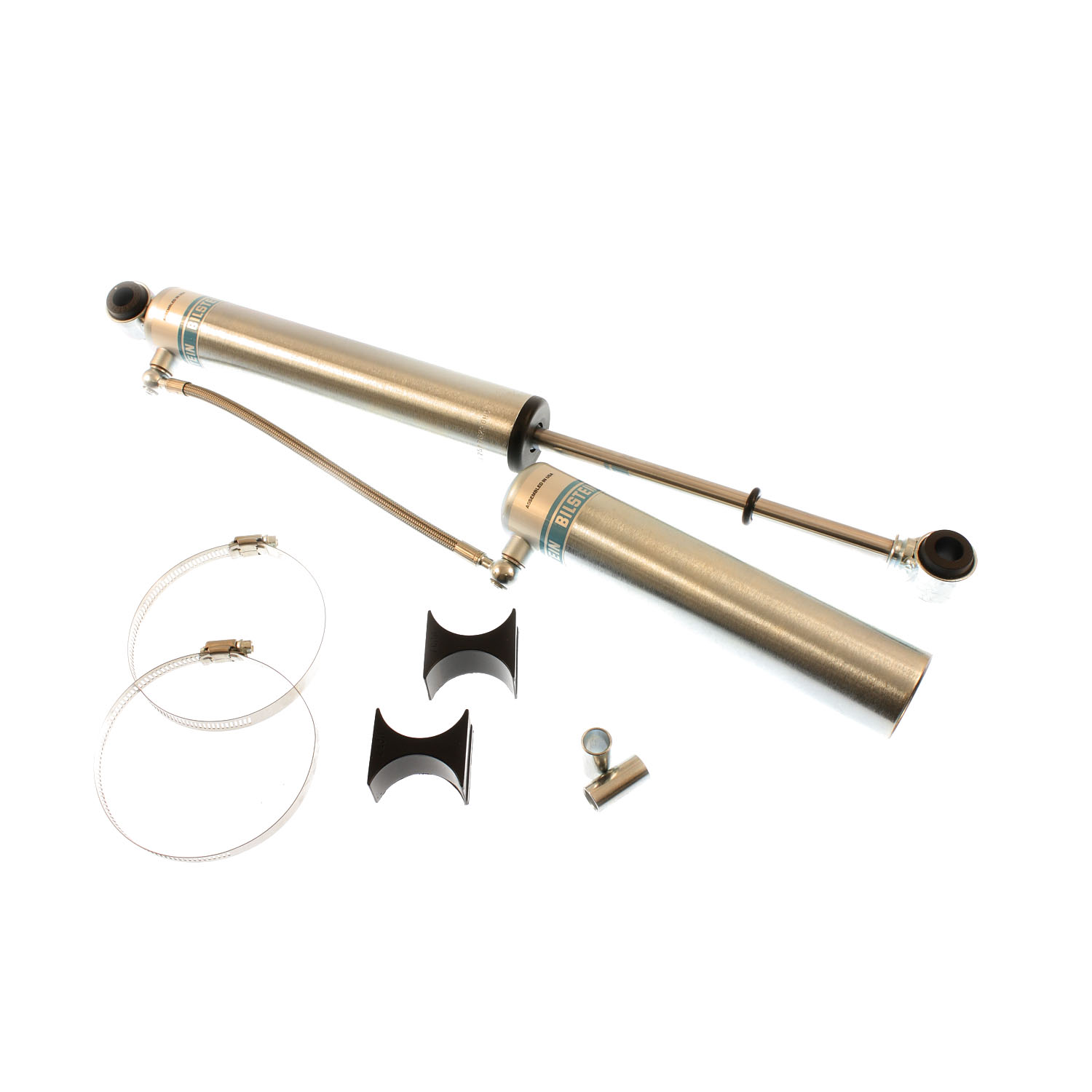

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value
Upper Mount Type Eye 5/8in
Compression @0.52m/s 700
Finish Zinc Plated
Rebound @0.52m/s 2550
Extended Length (IN) 22.40
Mount Type Eye-to-Eye
Collapsed Length (mm) 346.5
Internal Design Monotube
Extended Length (mm) 569.0
Boot Included No
Reservoir Yes
Series B8 5165
Body Design Smooth Body (Non-Coilover)
Lower Mount Type Eye 5/8in
Optional Reservoir Clamp 11-176015
Collapsed Length (IN) 13.64
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 222.5
Stroke/Travel Length (IN) 8.76
Country of Origin US
Condition New
Quantity per Application 2
