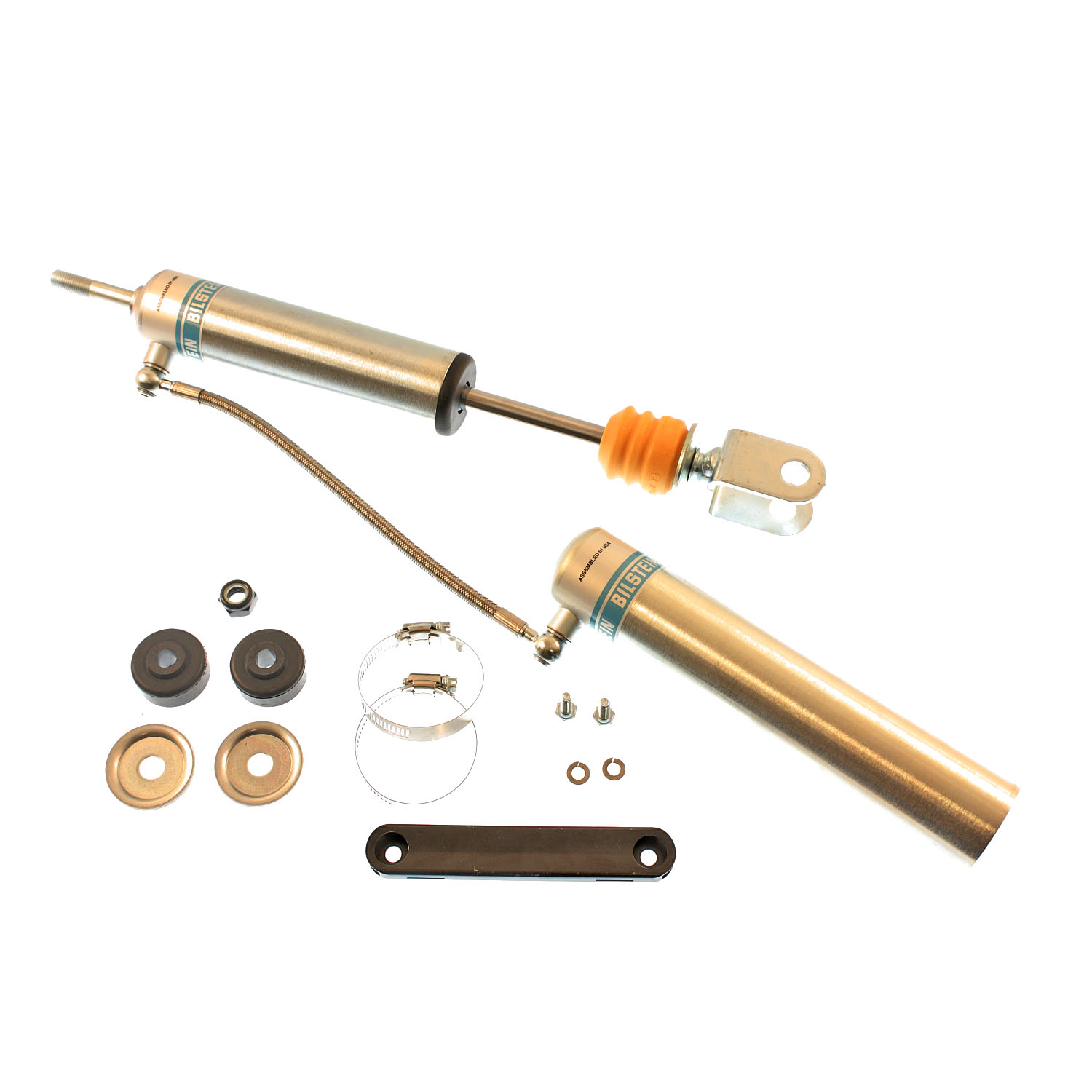

Bilstein Suspension Shock Absorber - 25-176407

B8 5160 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-176407
Old price: $225.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value
Finish Zinc Plated
Body Design Smooth Body (Non-Coilover)
Boot Included No
Upper Mount Type Stem
Internal Design Monotube
Optional Reservoir Clamp N/A
Extended Length (IN) 16.30
Series B8 5160
Lower Mount Type Clevis
Collapsed Length (IN) 12.83
Extended Length (mm) 414.0
Billet Reservoir Clamp Included No
Reservoir Yes
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (mm) 326.0
Shaft Diameter 14mm
Stroke/Travel Length (IN) 3.47
Stroke/Travel Length (mm) 88.1
Country of Origin US
Condition New
Quantity per Application 2
