Bilstein Suspension Shock Absorber - 25-187649

B8 5160 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-187649
Old price: $225.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

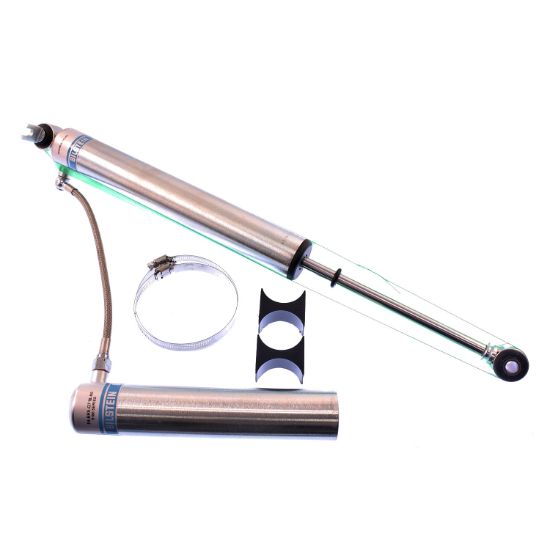

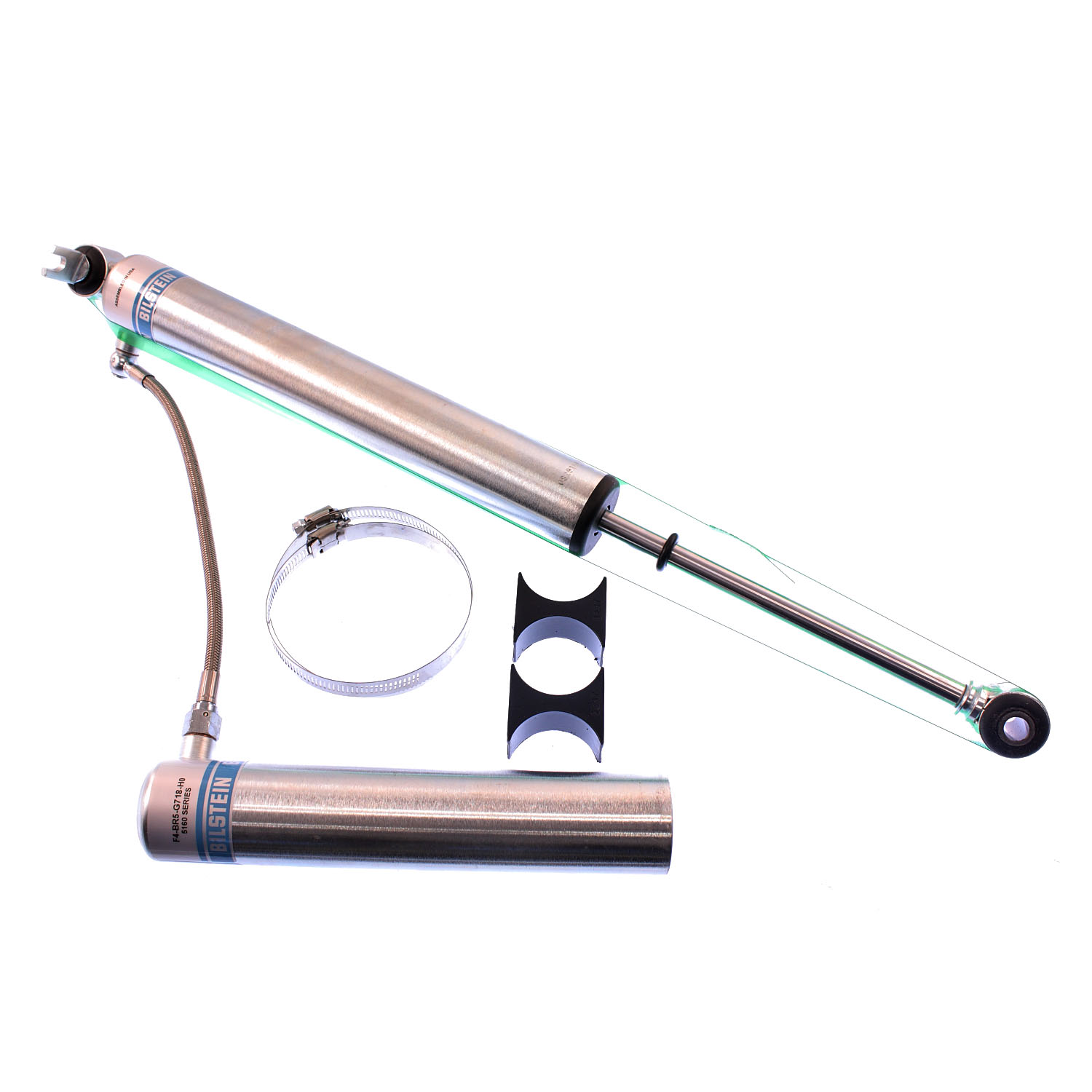

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value
Finish Zinc Plated
Collapsed Length (mm) 409.5
Billet Reservoir Clamp Included No
Extended Length (mm) 696.5
Collapsed Length (IN) 16.12
Internal Design Monotube
Upper Mount Type Bar Pin
Lower Mount Type Eye 12.1mm

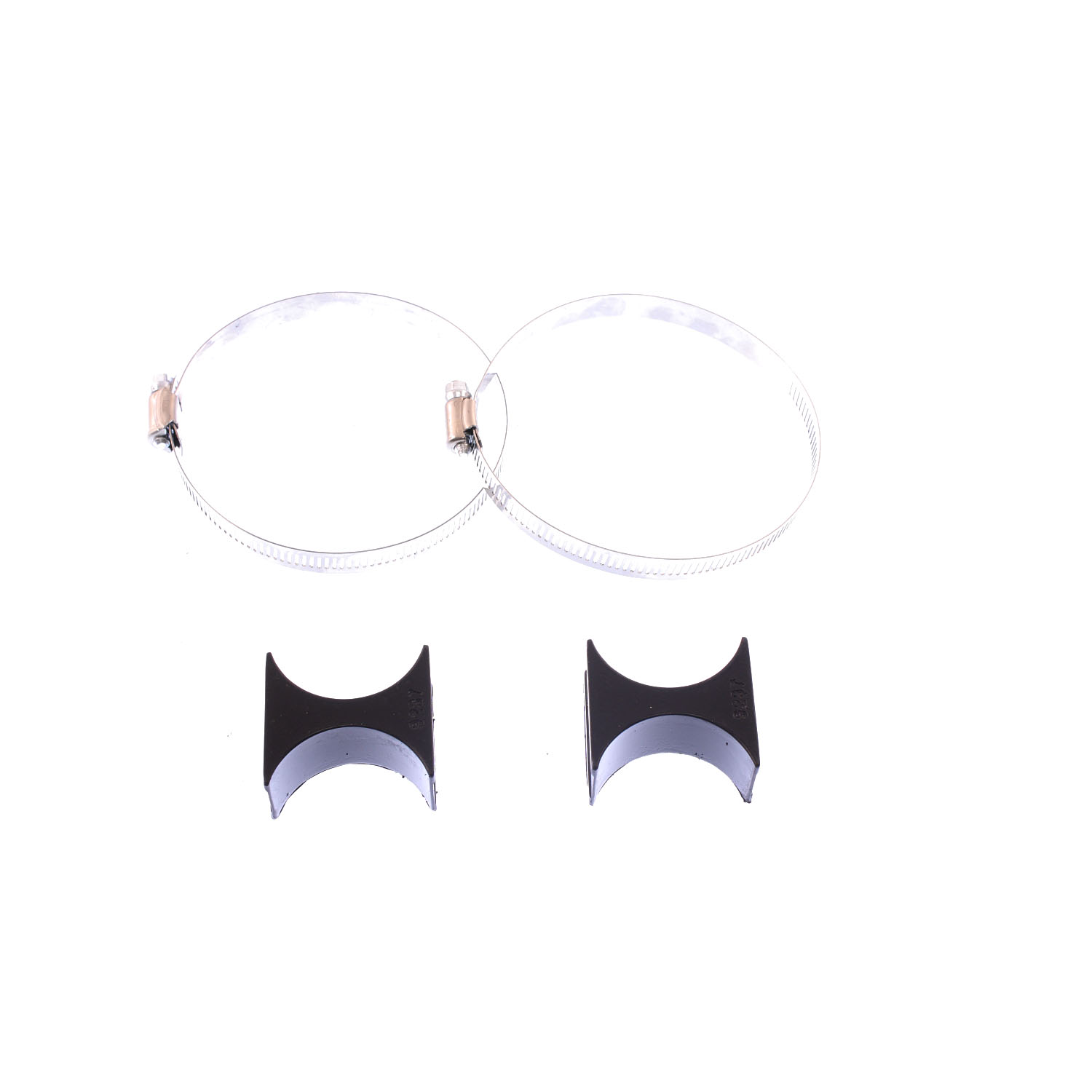

Optional Reservoir Clamp 11-176015
Boot Included No
Reservoir Yes
Body Design Smooth Body (Non-Coilover)
Extended Length (IN) 27.42
Series B8 5160
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Stroke/Travel Length (IN) 11.30
Shaft Diameter 14mm
Stroke/Travel Length (mm) 287.0
Country of Origin US
Condition New
Quantity per Application 2
