Bilstein Suspension Shock Absorber - 25-285338

B8 5160 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-285338
Old price: $270.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

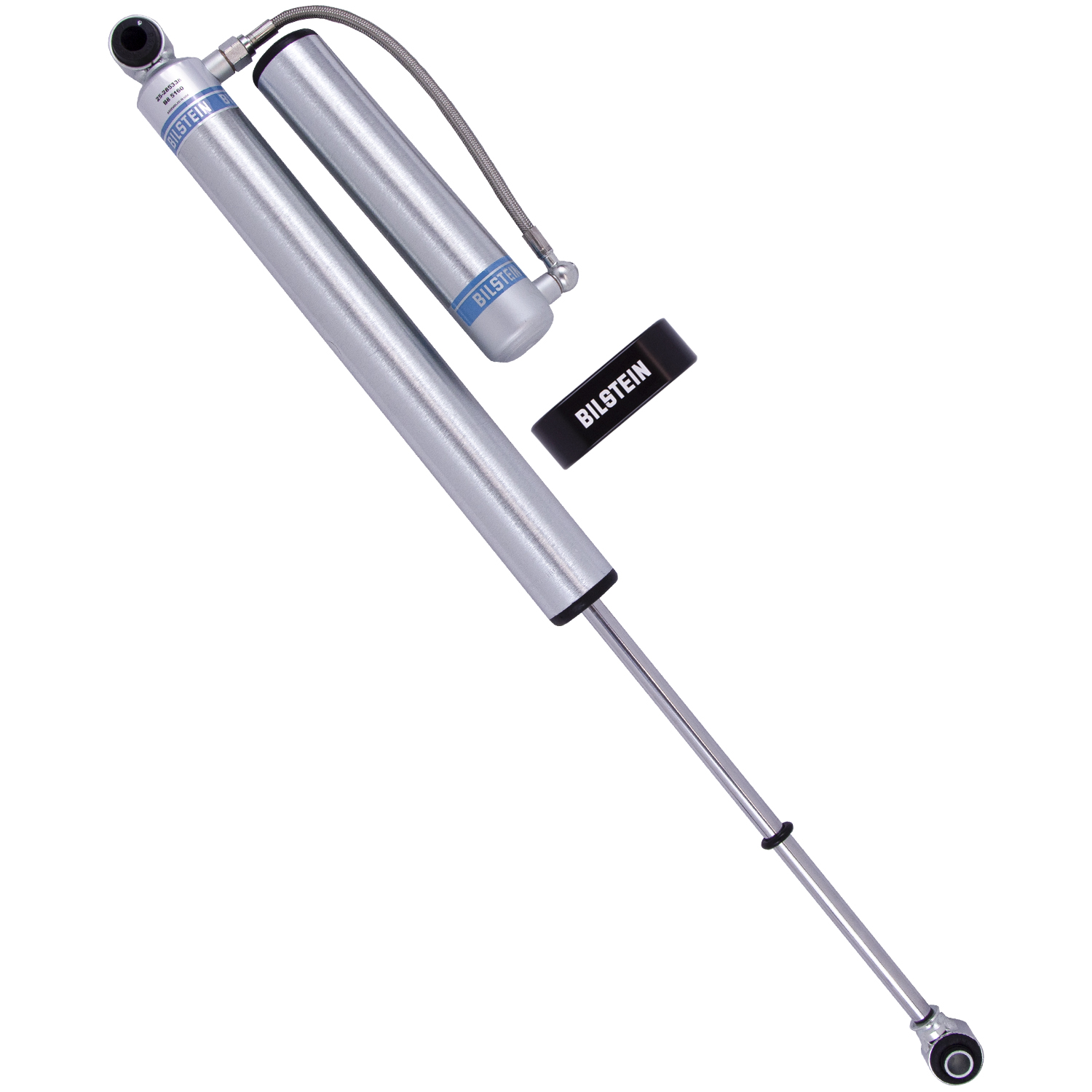

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value
Series B8 5160
Optional Reservoir Clamp N/A
Collapsed Length (mm) 469.3
Body Design Smooth Body (Non-Coilover)

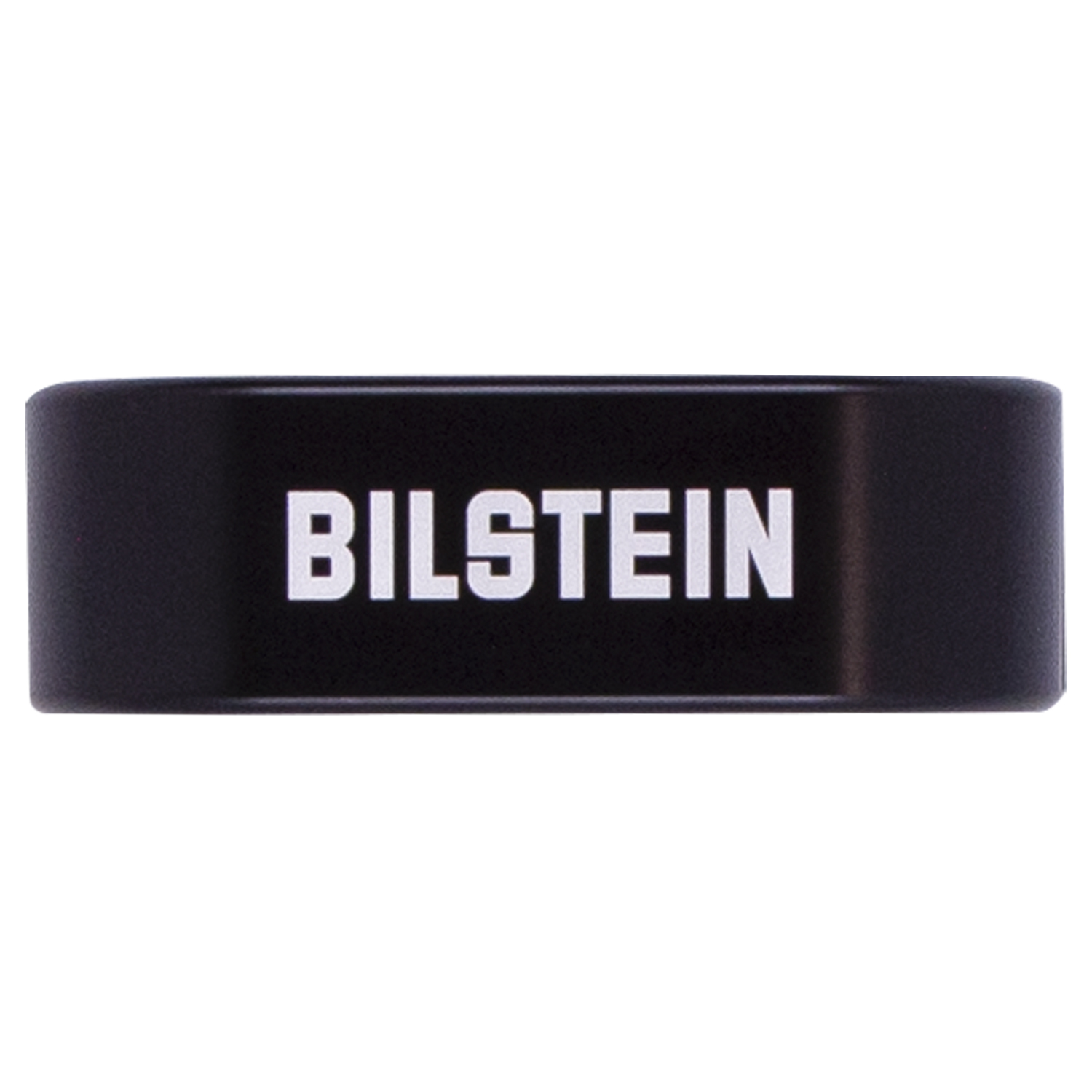

Billet Reservoir Clamp Included Yes
Finish Zinc Plated
Reservoir Yes
Collapsed Length (IN) 18.48
Upper Mount Type Eye 16mm
Adjustable Damping Non-Adjustable
Spring Seat Included No
Boot Included No
Extended Length (mm) 803.0
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Stroke/Travel Length (IN) 13.13
Shaft Diameter 14mm
Stroke/Travel Length (mm) 333.5
Extended Length (IN) 31.61
Internal Design Monotube
Lower Mount Type Eye 14.1mm
PartType Shocks / Struts
Segment Light Truck
Country of Origin US
Condition New
Quantity per Application 2
