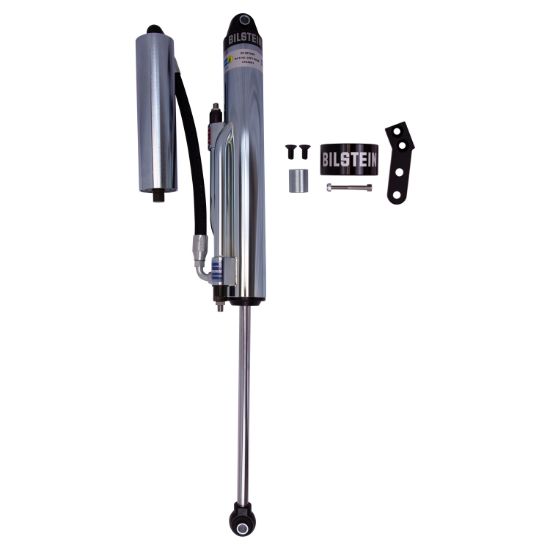

Bilstein Suspension Shock Absorber - 25-287820

B8 8100 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-287820
Old price: $1,189.90
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

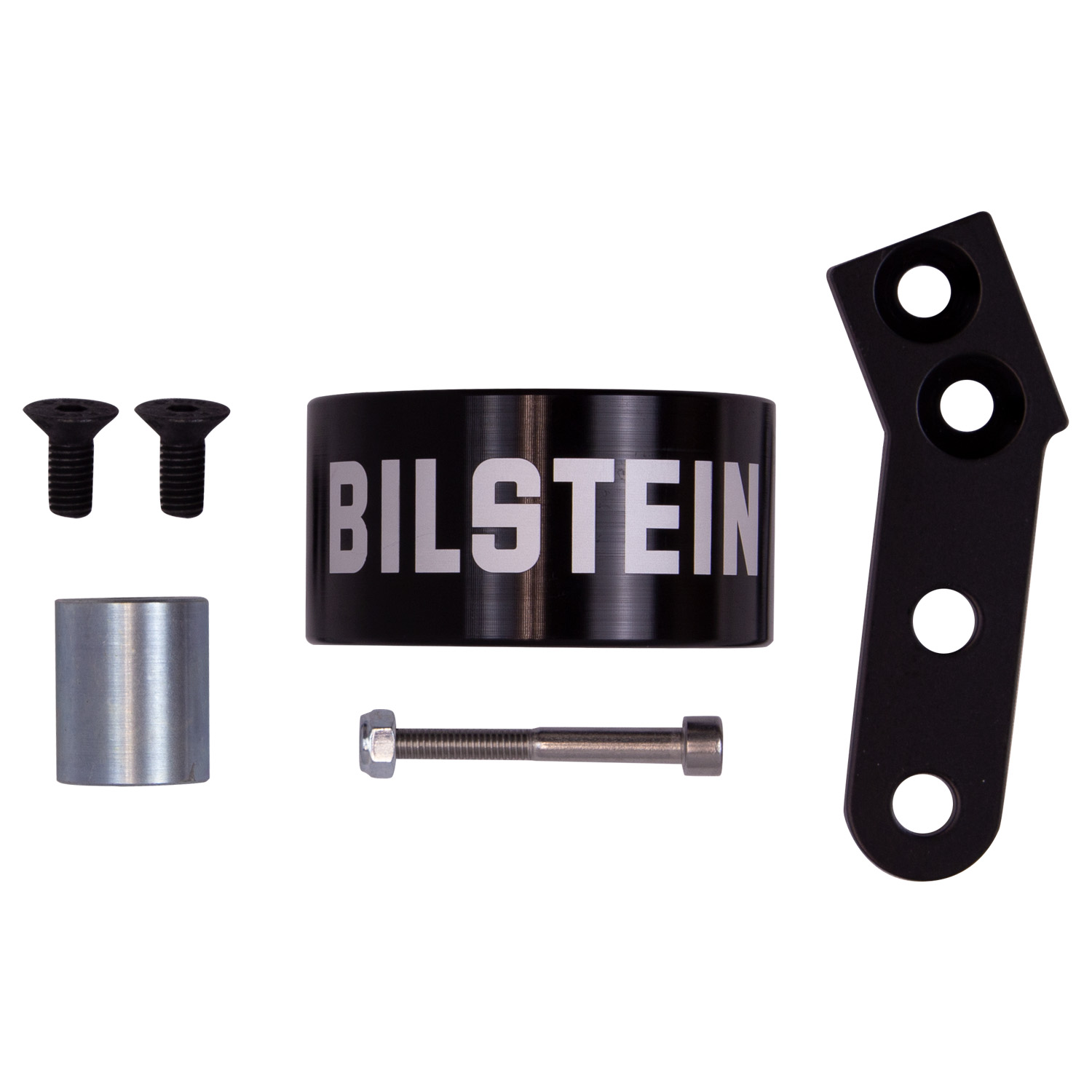

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Products specifications

Attribute name Attribute value
Series B8 8100 (Bypass)
Upper Mount Type Eye 12.8mm
Boot Included No
Extended Length (mm) 813.0
Collapsed Length (IN) 19.49
Body Design Bypass Body (Non-Coilover)
Finish Zinc Plated
Lower Mount Type Eye 12.8mm
Reservoir Yes
Adjustable Damping Double Adjustable – Compression and Rebound
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 495.0
Piston Diameter 60mm
Shaft Diameter 18mm
Internal Design Monotube
Extended Length (IN) 32.01
Country of Origin US
Condition New
