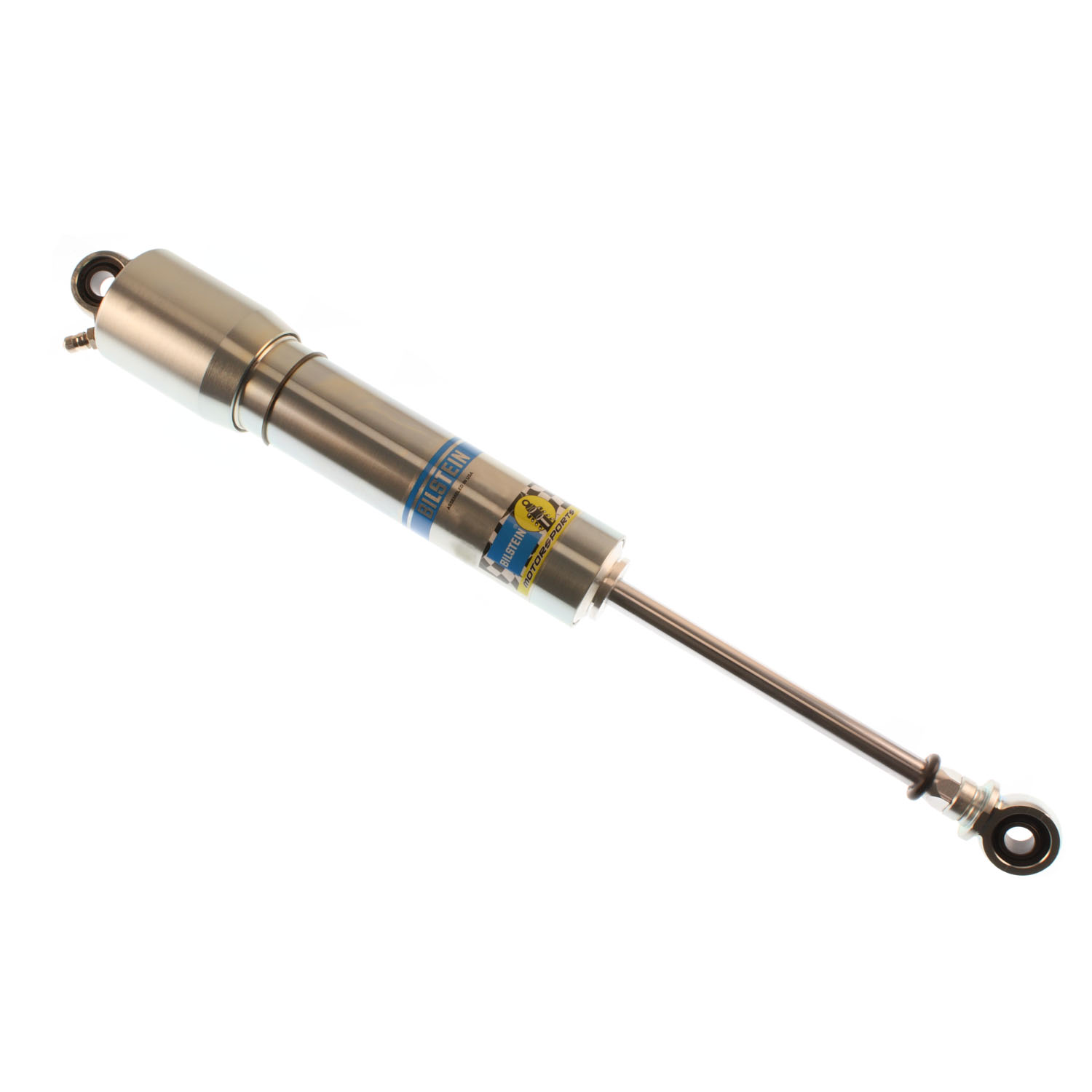

Bilstein Suspension Shock Absorber - 33-233444

XVS-S Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-233444
Old price: $367.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

Products specifications

Attribute name Attribute value
Valving Identifier 3-7M
Extended Length (mm) 600.5
Position Rear Left
Finish Zinc Plated
Upper Mount Type 1/2in Heim
Boot Included No
Collapsed Length (IN) 15.24
Series XVS-S Series
Compression @0.52m/s 2645
Internal Design Monotube
Extended Length (IN) 23.64
Lower Mount Type 1/2in Heim
Rebound @0.52m/s 1465
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 387.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 213.6
Stroke/Travel Length (IN) 8.41
Country of Origin US
Condition New
