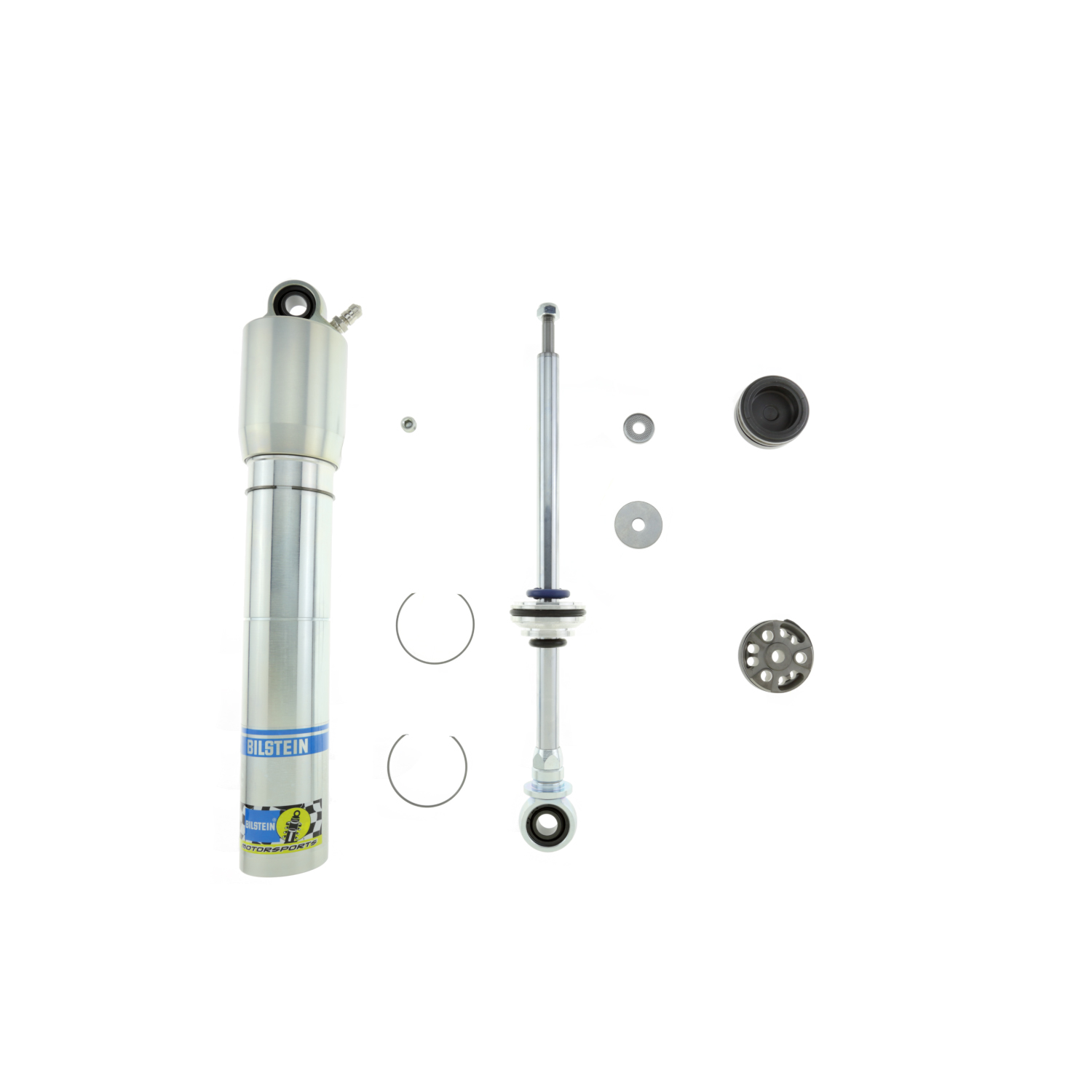

Bilstein Suspension Shock Absorber - 33-237756

XVS Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-237756
Old price: $339.67
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

Products specifications

Attribute name Attribute value
Extended Length (IN) 23.64
Adjustable Damping Non-Adjustable
Lower Mount Type 1/2in Heim
Body Material Steel
Valving Identifier Linear Dry Kit (no valving)
Piston Type Linear
Body Design Smooth Body (Non-Coilover)
Upper Mount Type 1/2in Heim
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 387.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 213.4
Stroke/Travel Length (IN) 8.40
Series XVS Series
Extended Length (mm) 600.5
Internal Design Monotube
Boot Included No
Finish Zinc Plated
Collapsed Length (IN) 15.24
Country of Origin US
Condition New
