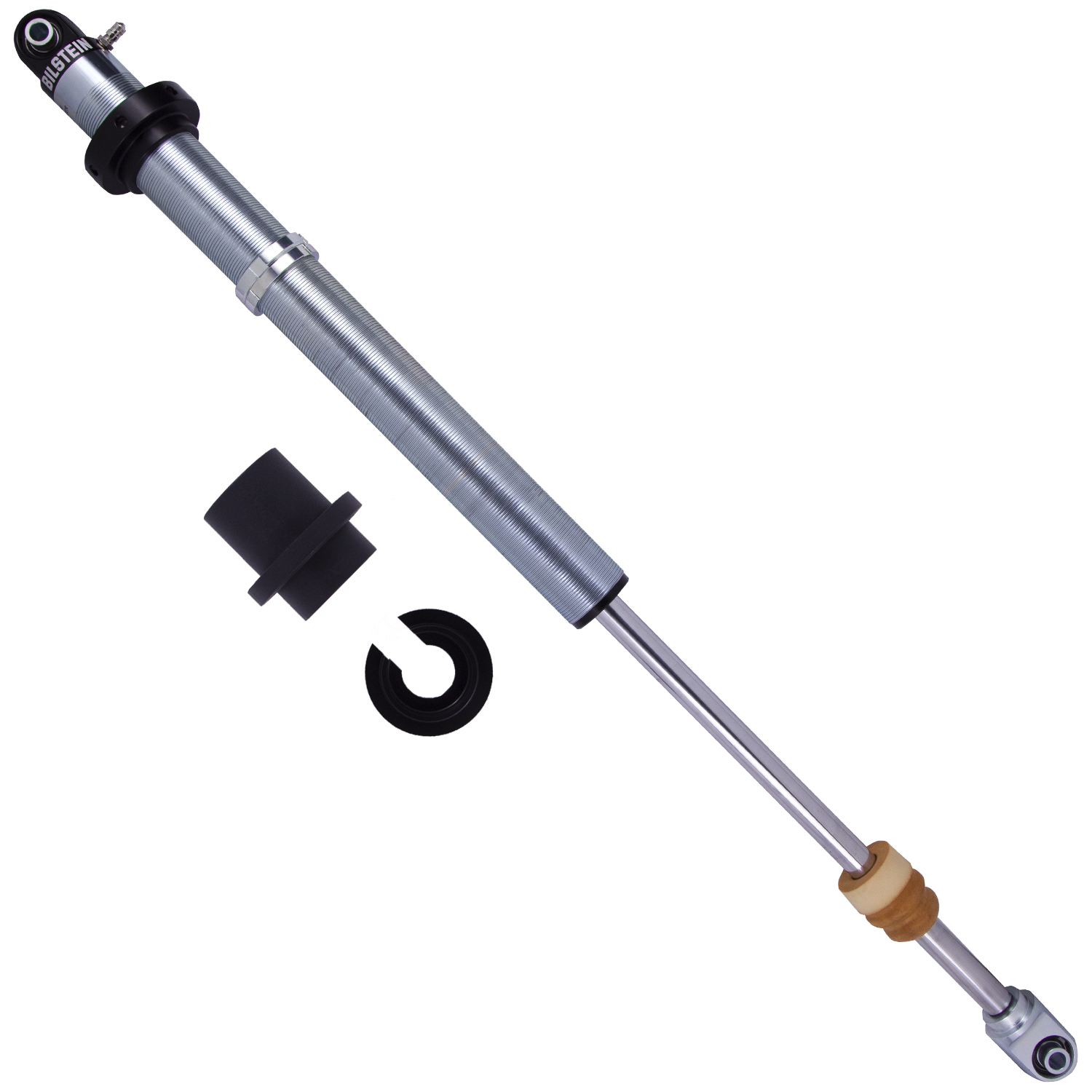

Bilstein Suspension Shock Absorber - 33-243566

M 9200 (Coil Carrier) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-243566
$524.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Mount Type Eye-to-Eye
Finish Zinc Plated
Optional Reservoir Clamp N/A
Boot Included N/A
Series M 9200 (Coil Carrier)
Extended Length (IN) 39.50
Lower Mount Type Eye .5x1.5in
Reservoir Yes
Body Design Threaded Body (Coilover)
Upper Mount Type Eye .5x1.5in
Internal Design Monotube
Collapsed Length (mm) 596.9
Extended Length (mm) 1003.3
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @0.52m/s Coil Carrier No Valving
Rebound @0.52m/s Coil Carrier No Valving
Collapsed Length (IN) 23.50
Piston Diameter 46mm
Stroke/Travel Length (IN) 16.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 406.4
Country of Origin US
Condition New
