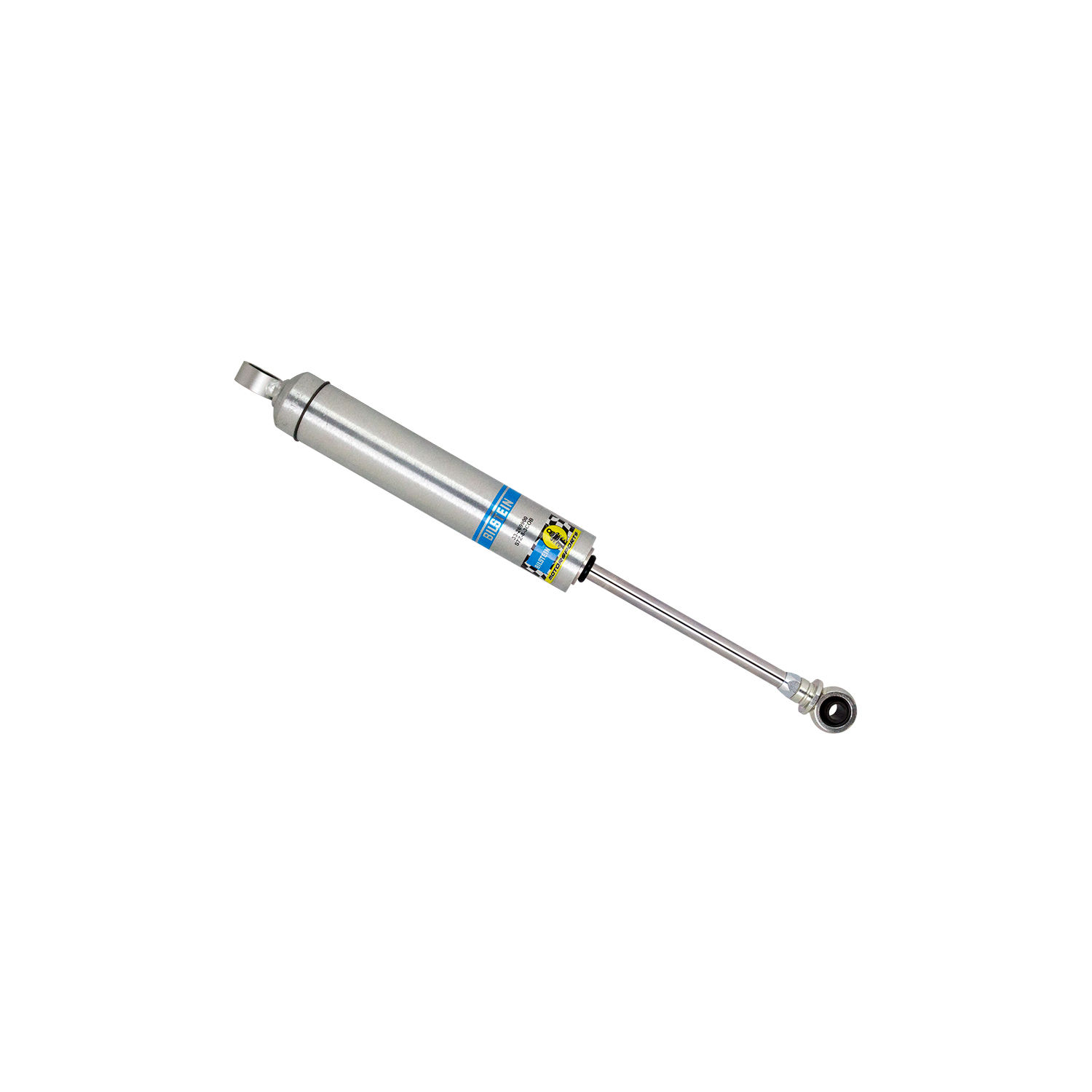

Bilstein Suspension Shock Absorber - 33-269900

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-269900
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Series SZ Series
Internal Design Monotube
Compression @0.26m/s 885
Rebound @0.26m/s 1715
Valving Identifier 8-3COB
Extended Length (mm) 510.0
Upper Mount Type 1/2in Heim
Collapsed Length (IN) 13.19
Piston Type Digressive
Body Material Steel
Adjustable Damping Non-Adjustable
Extended Length (IN) 20.08
Finish Zinc Plated
Lower Mount Type 1/2in Heim
Body Design Smooth Body (Non-Coilover)
Boot Included No
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 335.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 176.0
Stroke/Travel Length (IN) 6.93
Country of Origin US
Condition New
