Bilstein Suspension Shock Absorber - 33-273518

SNS2 Series (BV) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-273518
Old price: $299.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

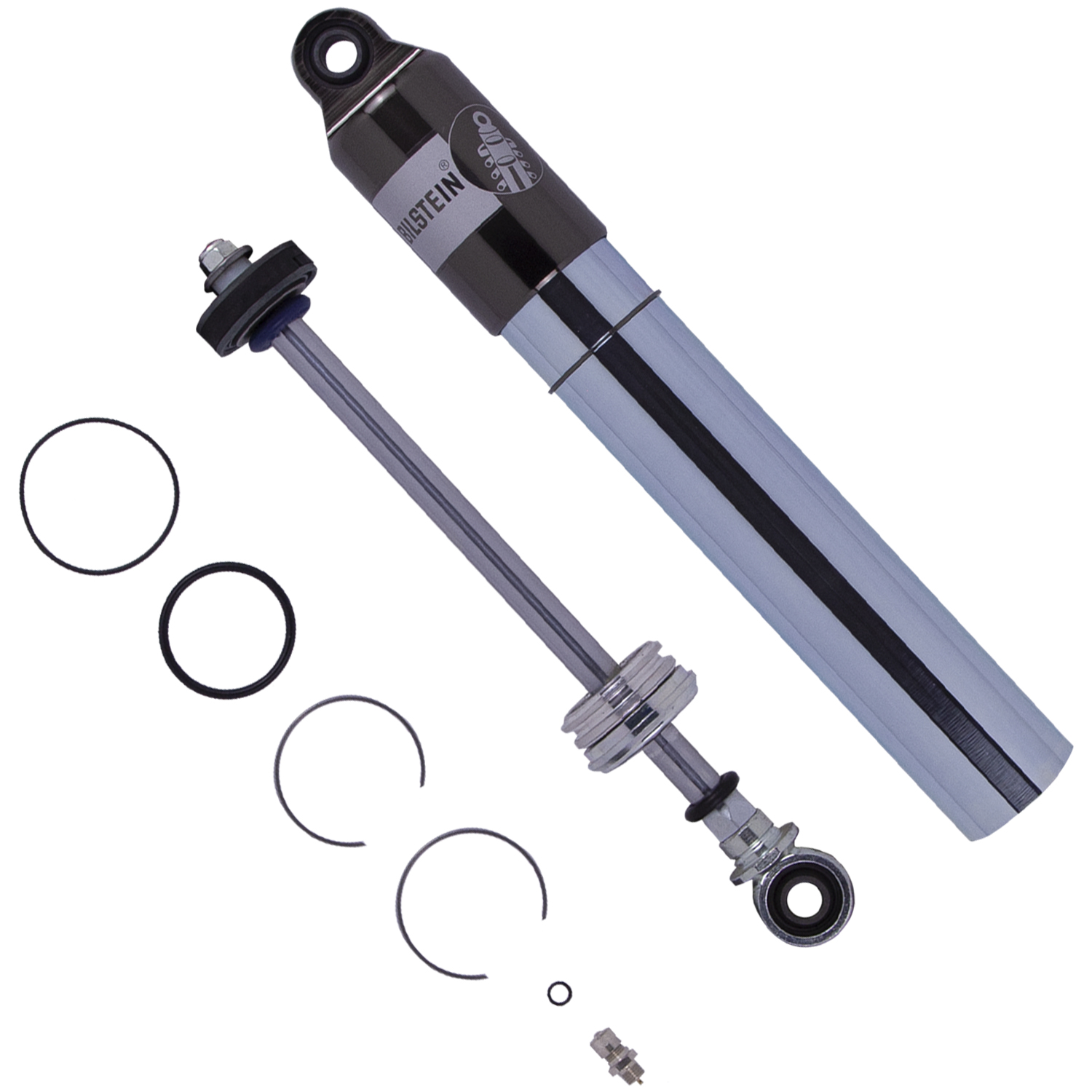

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

Products specifications

Attribute name Attribute value
Piston Type Linear
Collapsed Length (IN) 15.87
Finish Zinc Plated
Upper Mount Type 1/2in Heim
Body Design Smooth Body Screw Top (Non-coilover)
Boot Included No
Body Material Steel
Series SNS2 Series (BV)
Lower Mount Type 1/2in Heim
Extended Length (IN) 23.79
Adjustable Damping Non-Adjustable
Internal Design Monotube
Valving Identifier Linear Dry Kit (no valving)
Collapsed Length (mm) 403.2
Extended Length (mm) 604.4
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 201.2
Stroke/Travel Length (IN) 7.92
Country of Origin US
Condition New
Quantity per Application 2
