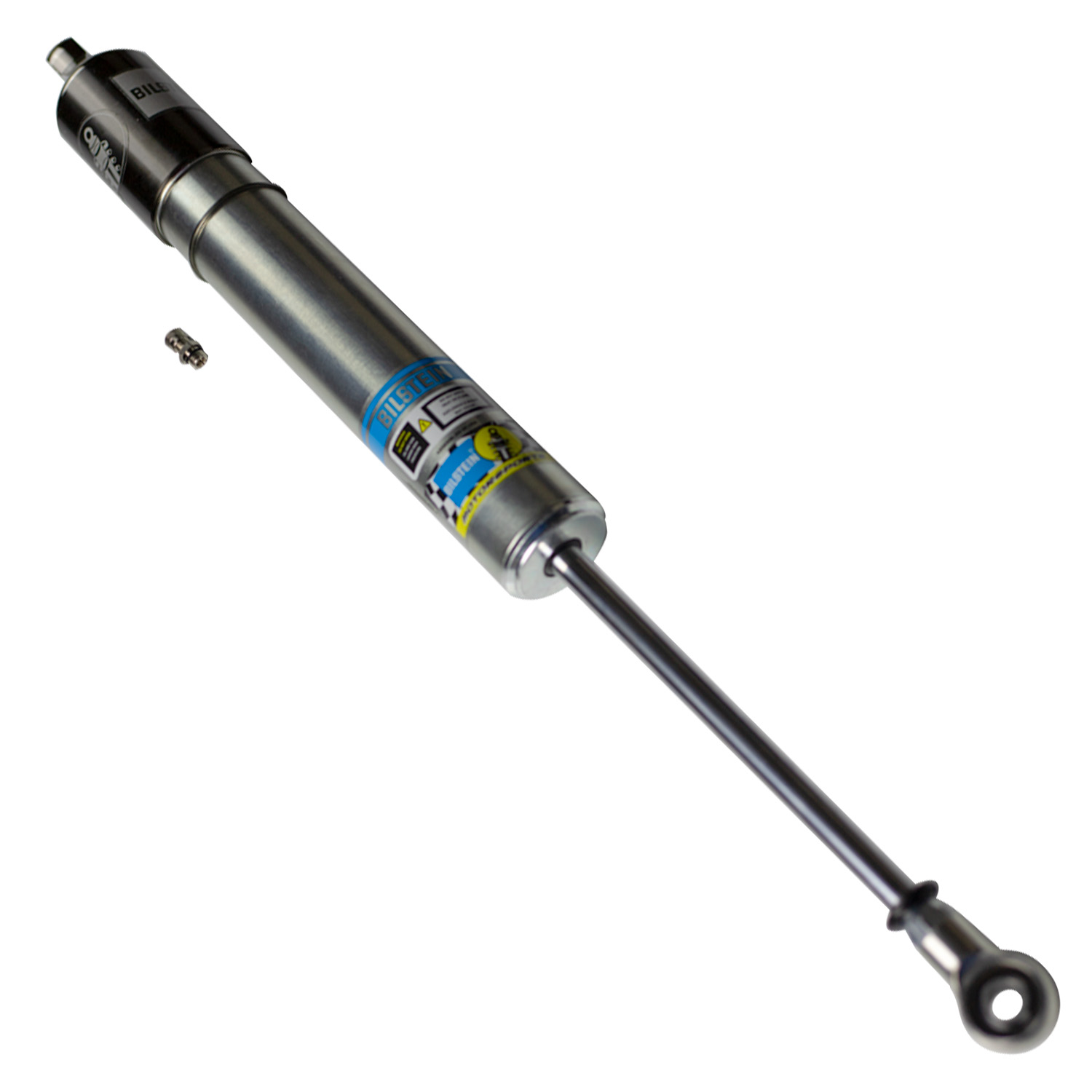

Bilstein Suspension Shock Absorber - 33-298009

SNS2 Series (BV) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-298009
$377.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

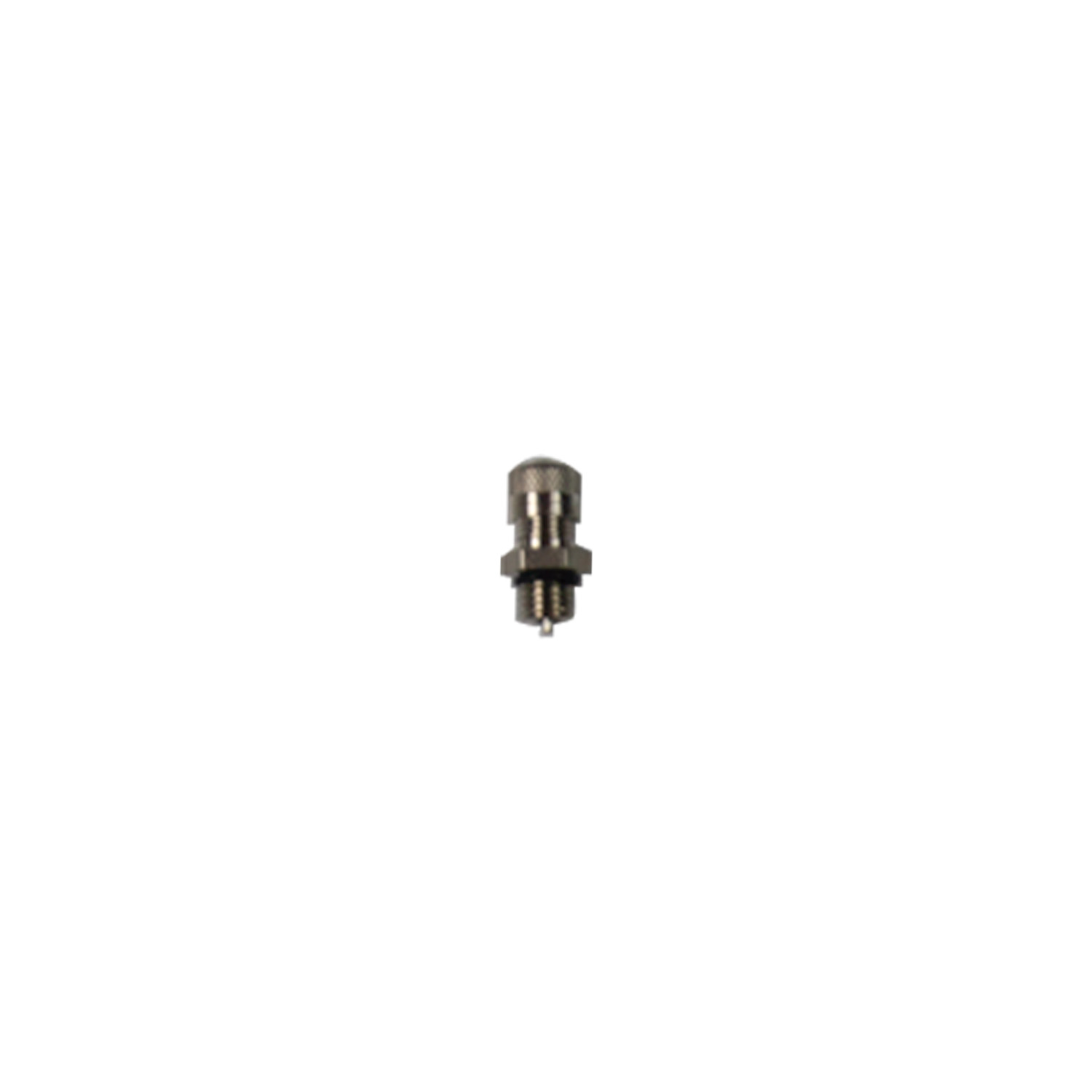

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

Application: No Applications

Products specifications

Attribute name Attribute value
Boot Included No
Finish Zinc Plated
Collapsed Length (IN) 13.35
Body Material Steel
Lower Mount Type 1/2in Heim
Extended Length (mm) 486.8
Internal Design Monotube
Extended Length (IN) 19.16
Upper Mount Type 1/2in Heim
Piston Type Digressive
Series SNS2 Series (BV)
Body Design Smooth Body Screw Top (Non-coilover)
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 339.0
Stroke/Travel Length (mm) 147.8
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.82
Country of Origin US
Condition New
