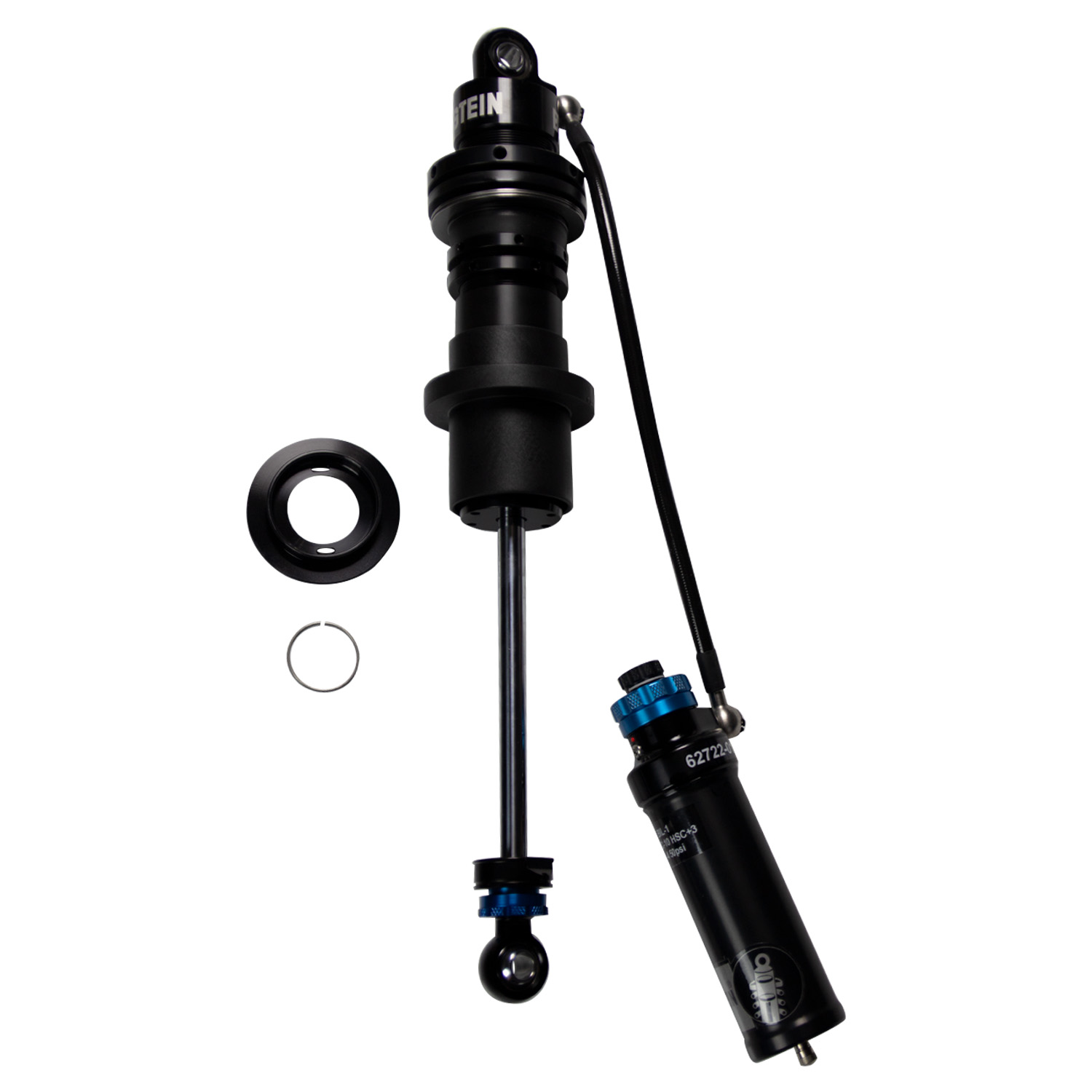

Bilstein Suspension Shock Absorber - 33-311579

AS2-R Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-311579
$1,260.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein’s AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.

Application: No Applications

Products specifications

Attribute name Attribute value
Series AS2-R Series
Boot Included No
Extended Length (IN) 19.29
Body Material Aluminum
Adjustable Damping Triple Adjustable - Rebound and High and Low Speed Compression
Internal Design Monotube
Extended Length (mm) 490.0
Body Design Threaded Body Screw Top (Coilover)

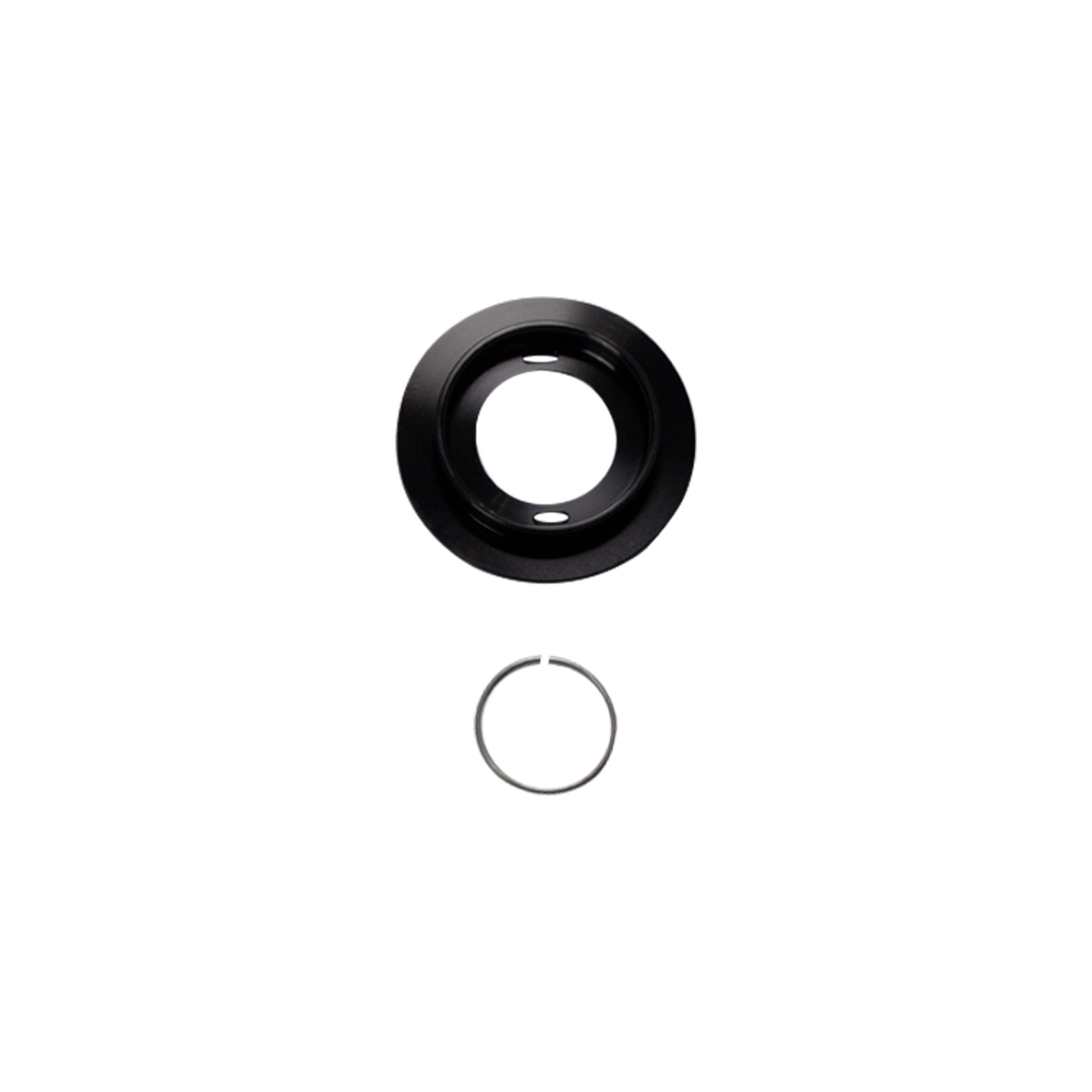

Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware 2 B4-MKT-0004A00
Spring Hardware B4-MKT-0008A00
Spring Hardware 3 E4-FT4-Z060A00
Spring Hardware 4 E4-MSG-0096A00
Piston Diameter 46mm
Collapsed Length (mm) 323.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 167.1
Stroke/Travel Length (IN) 6.58
Finish Clear Anodized
Upper Mount Type 1/2in Heim
Piston Type Digressive
Collapsed Length (IN) 12.71
Lower Mount Type 1/2in Heim
Country of Origin US
Condition New
