Bilstein Suspension Shock Absorber - 33-314785

XVA Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-314785
$767.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

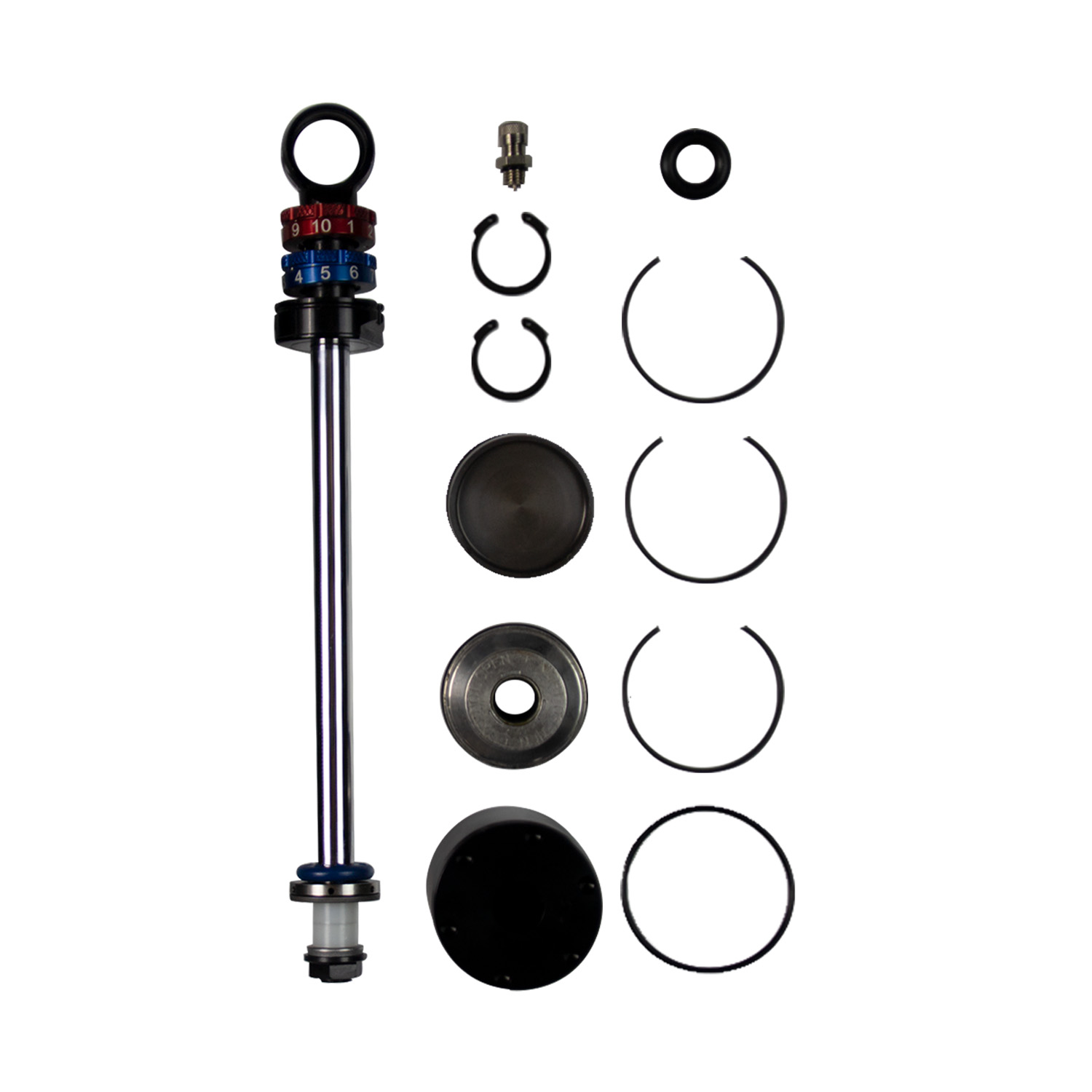

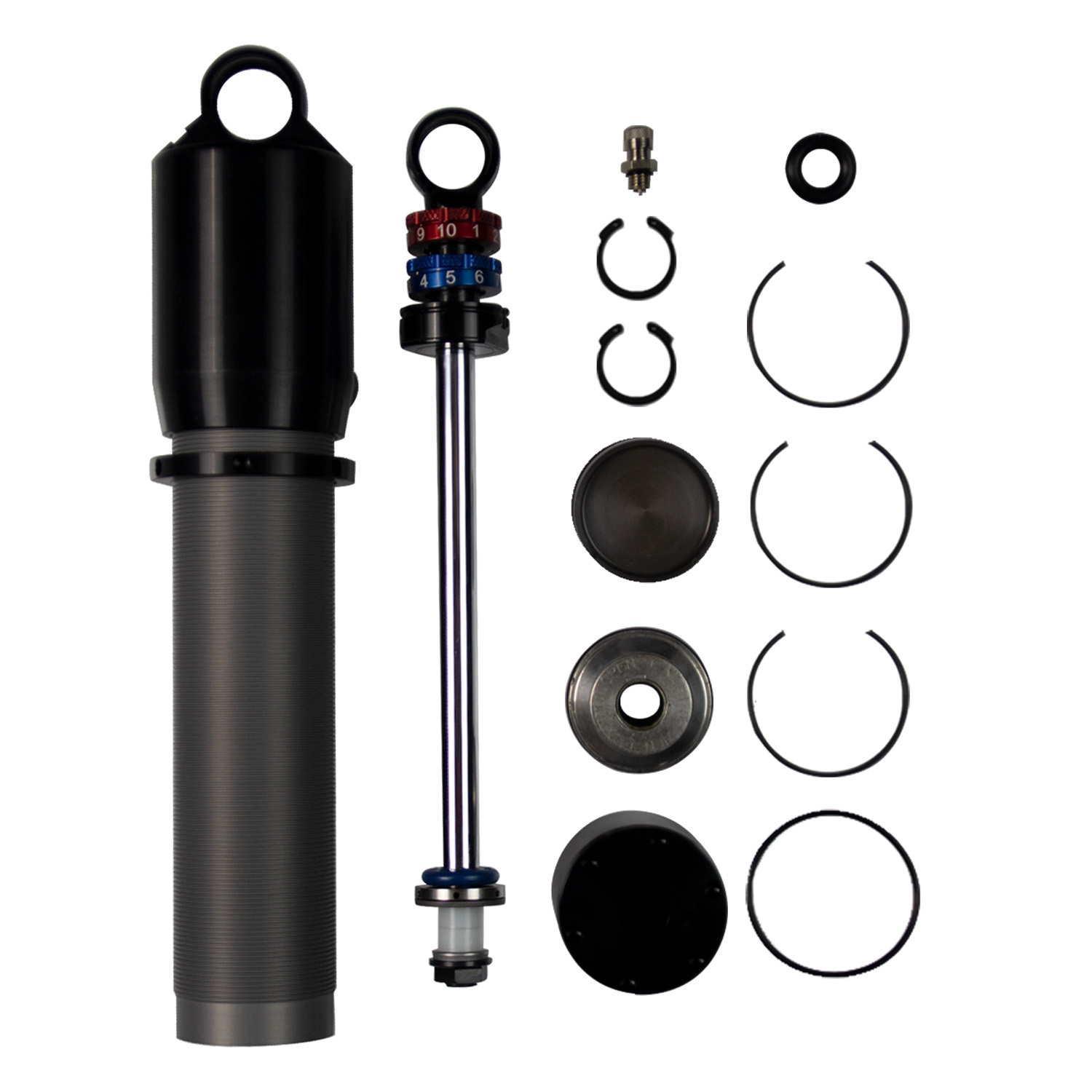

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Extended Length (IN) 16.93
Finish Clear Anodized
Body Design Threaded Body Large Bulb Screw Top (Coilover)
Adjustable Damping Double Adjustable – Compression and Rebound
Piston Type Sold Separately
Body Material Aluminum
Collapsed Length (IN) 12.74
Collapsed Length (mm) 323.5
Series XVA Series
Boot Included No
Extended Length (mm) 429.9
Internal Design Monotube
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Lower Mount Type 1/2in Heim
Upper Mount Type 1/2in Heim
Piston Diameter 46mm
Stroke/Travel Length (mm) 106.4
Shaft Diameter 14mm
Stroke/Travel Length (IN) 4.19
Country of Origin US
Condition New
