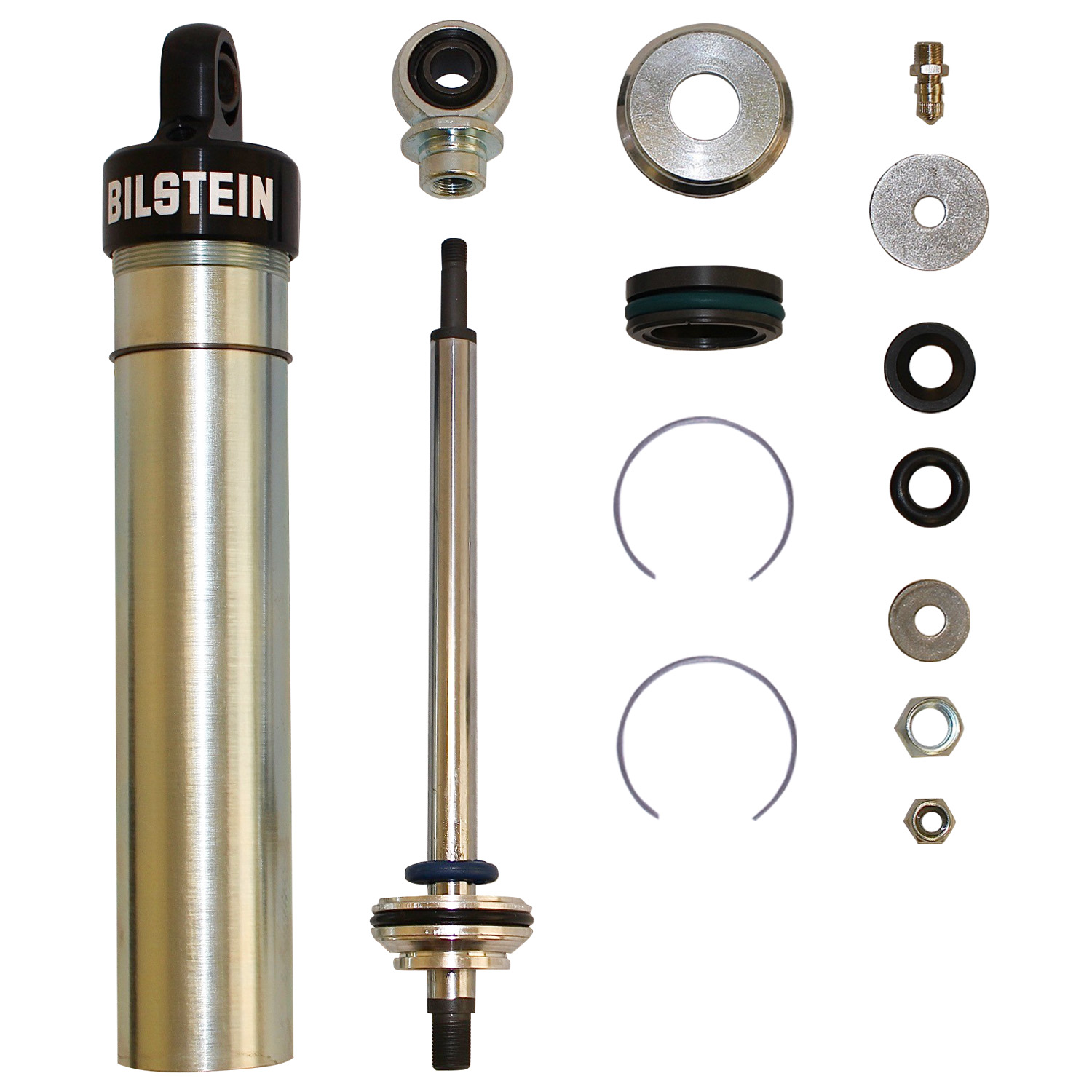

Bilstein Suspension Shock Absorber - 33-316420

SN2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-316420
$212.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

Application: No Applications

Products specifications

Attribute name Attribute value
Piston Type Sold Separately
Internal Design Monotube
Extended Length (IN) 15.82
Boot Included No
Body Material Steel
Adjustable Damping Non-Adjustable
Upper Mount Type 1/2in Heim
Collapsed Length (mm) 279.4
Body Design Smooth Body Screw Top (Non-coilover)
Lower Mount Type 1/2in Heim
Finish Zinc Plated
Extended Length (mm) 401.9
Series SN2 Series
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 11.00
Piston Diameter 46mm
Stroke/Travel Length (mm) 122.4
Shaft Diameter 14mm
Stroke/Travel Length (IN) 4.82
Country of Origin US
Condition New
