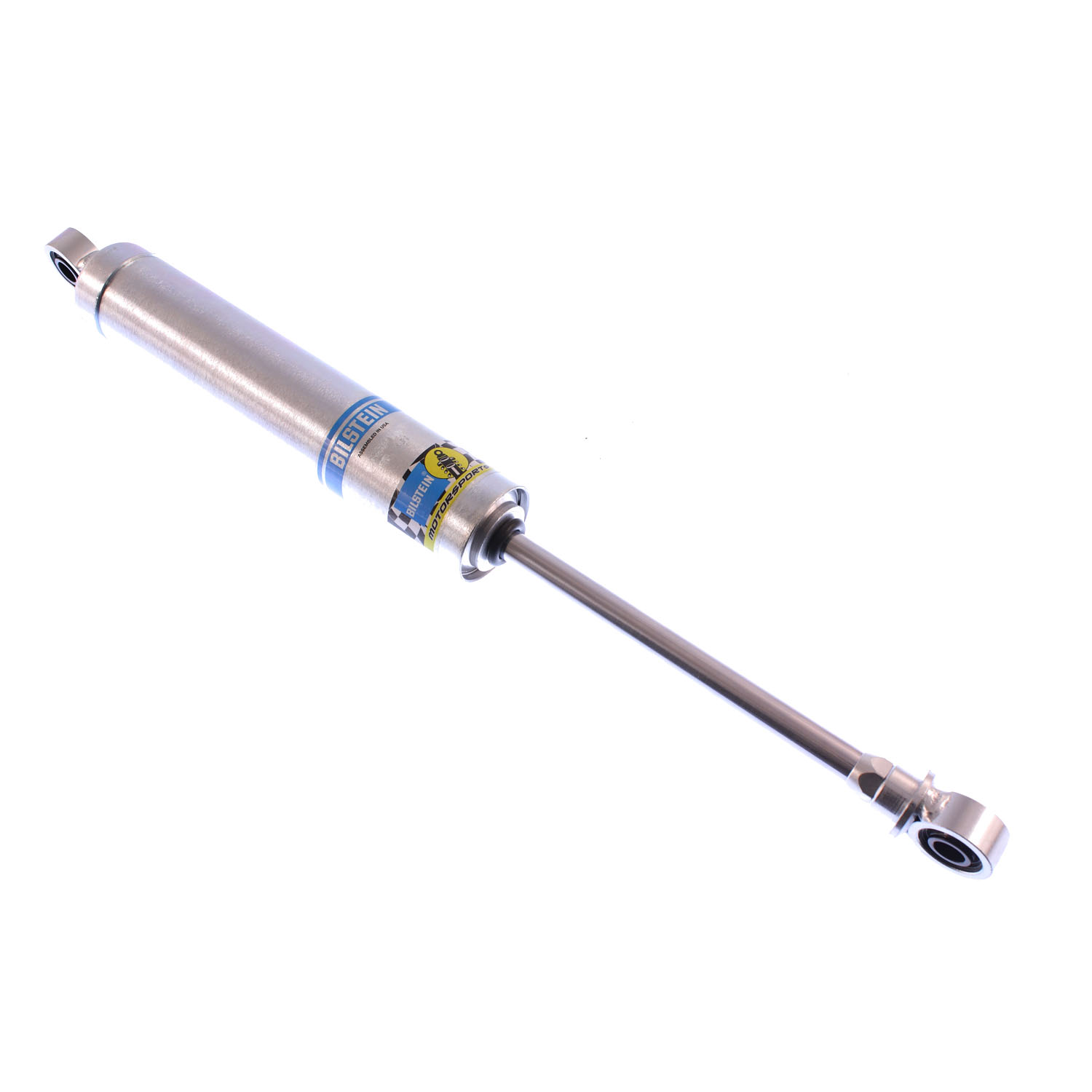

Bilstein Suspension Shock Absorber - 33-321905

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-321905
$150.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Application: No Applications

Products specifications

Attribute name Attribute value
Body Design Smooth Body (Non-Coilover)
Adjustable Damping Non-Adjustable
Upper Mount Type 1/2in Heim
Extended Length (IN) 23.52
Body Material Steel
Internal Design Monotube
Collapsed Length (IN) 14.88
Spring Seat Included No
Piston Type Digressive
Series SZ Series
Extended Length (mm) 597.5
Finish Zinc Plated
Lower Mount Type 1/2in Heim
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @ 10"/sec 425
Rebound @ 10"/sec 75
Boot Included No
Piston Diameter 46mm
Collapsed Length (mm) 378.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
Country of Origin US
Condition New
