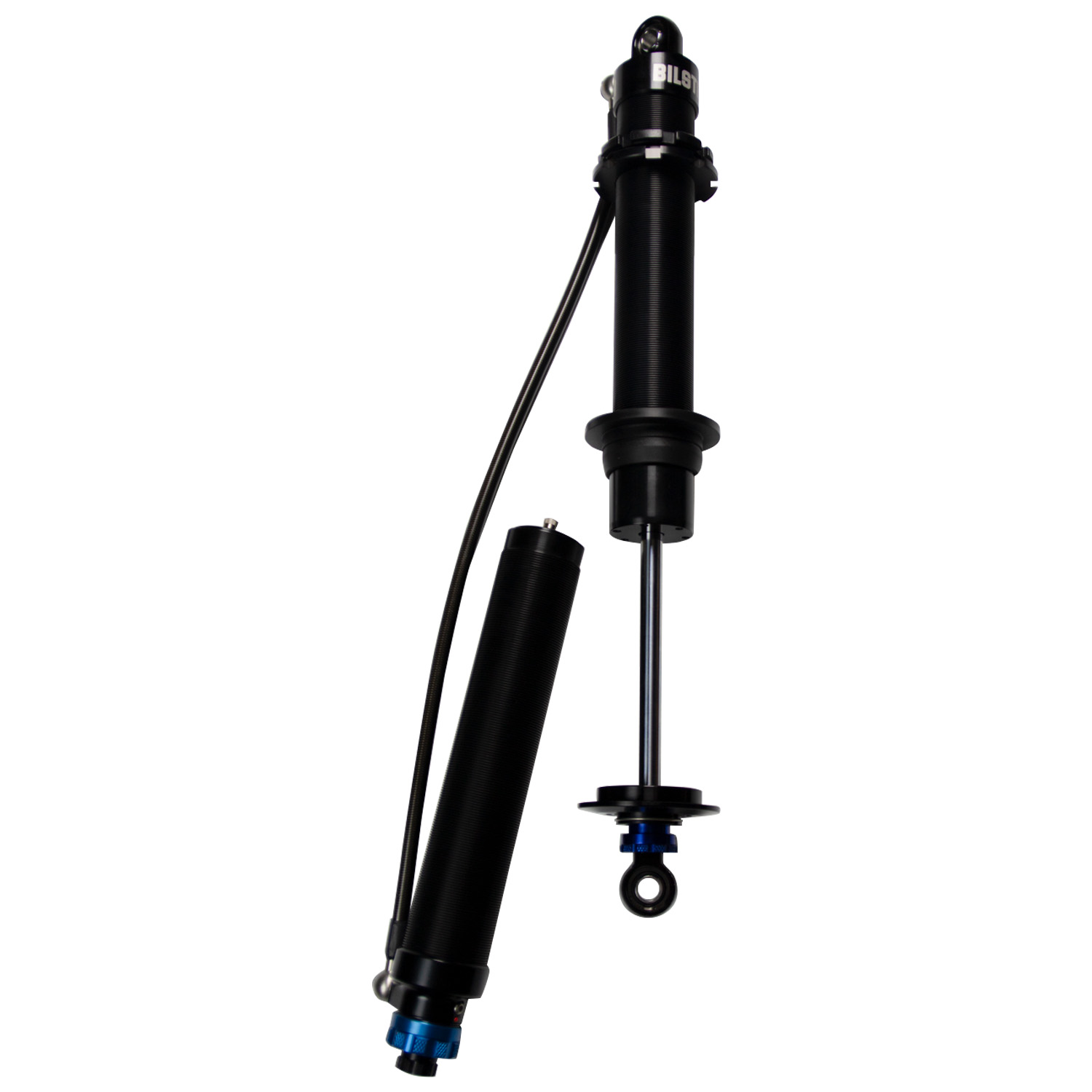

Bilstein Suspension Shock Absorber - 33-327747

AS2-R Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-327747
$1,187.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein AS2-R Series Suspension Shock Absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein’s AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series Suspension Shock Absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.

Application: No Applications

Products specifications

Attribute name Attribute value
Lower Mount Type 1/2in Heim
Upper Mount Type 1/2in Heim
Collapsed Length (IN) 15.33
Piston Type 2 Port Linear
Extended Length (IN) 23.18
Collapsed Length (mm) 389.4
Extended Length (mm) 588.8
Body Material Aluminum
Series AS2-R Series
Finish Clear Anodized
Internal Design Monotube
Boot Included No
Body Design Threaded Body Screw Top (Coilover)
Adjustable Damping Triple Adjustable - Rebound and High and Low Speed Compression
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware 2 B4-MKT-0001A00
Spring Seat Included Yes
Spring Hardware E4-MSG-0096A00
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 199.4
Stroke/Travel Length (IN) 7.85
Country of Origin US
Condition New
