Bilstein Suspension Shock Absorber - A511152010

CA5 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: A511152010
Old price: $316.33
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

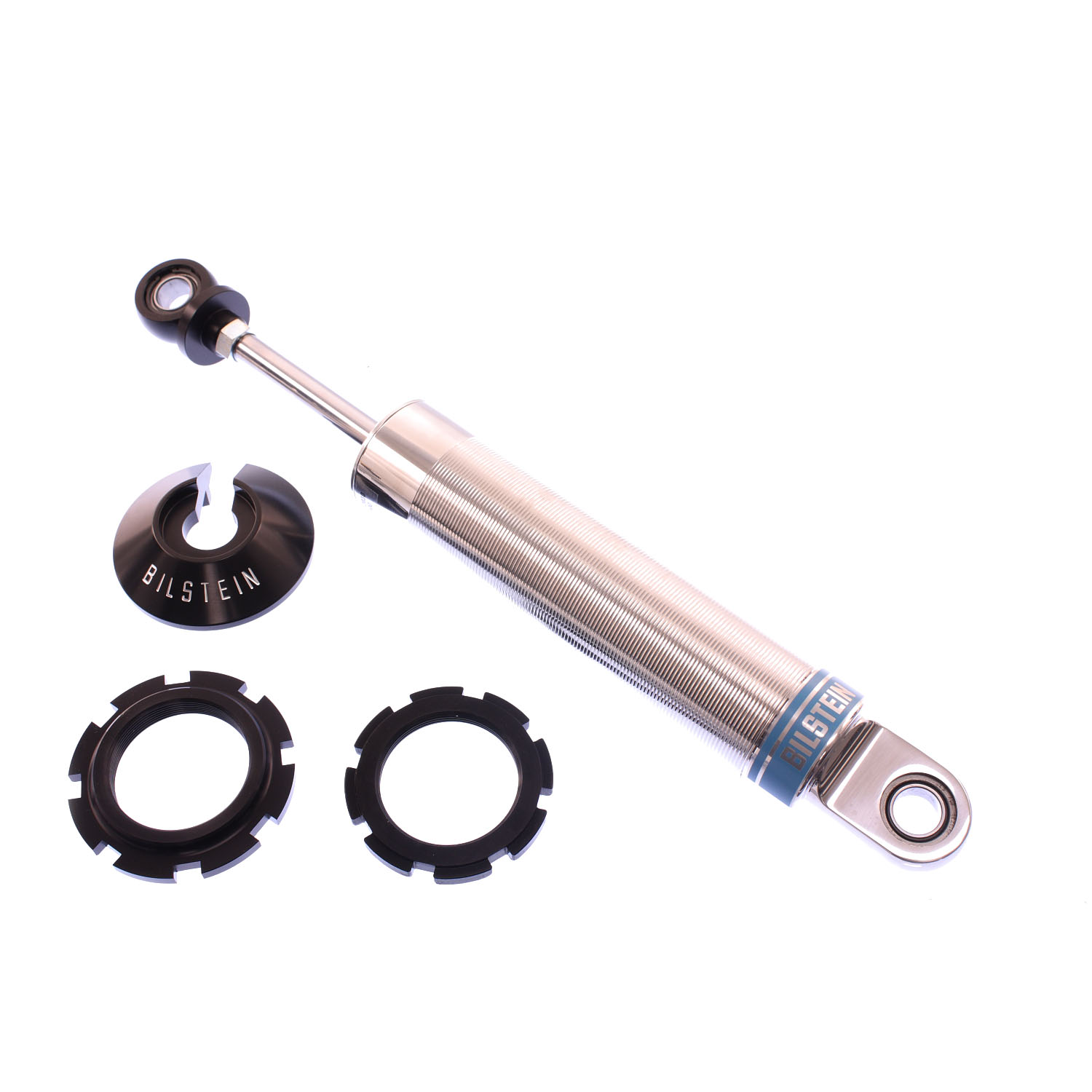

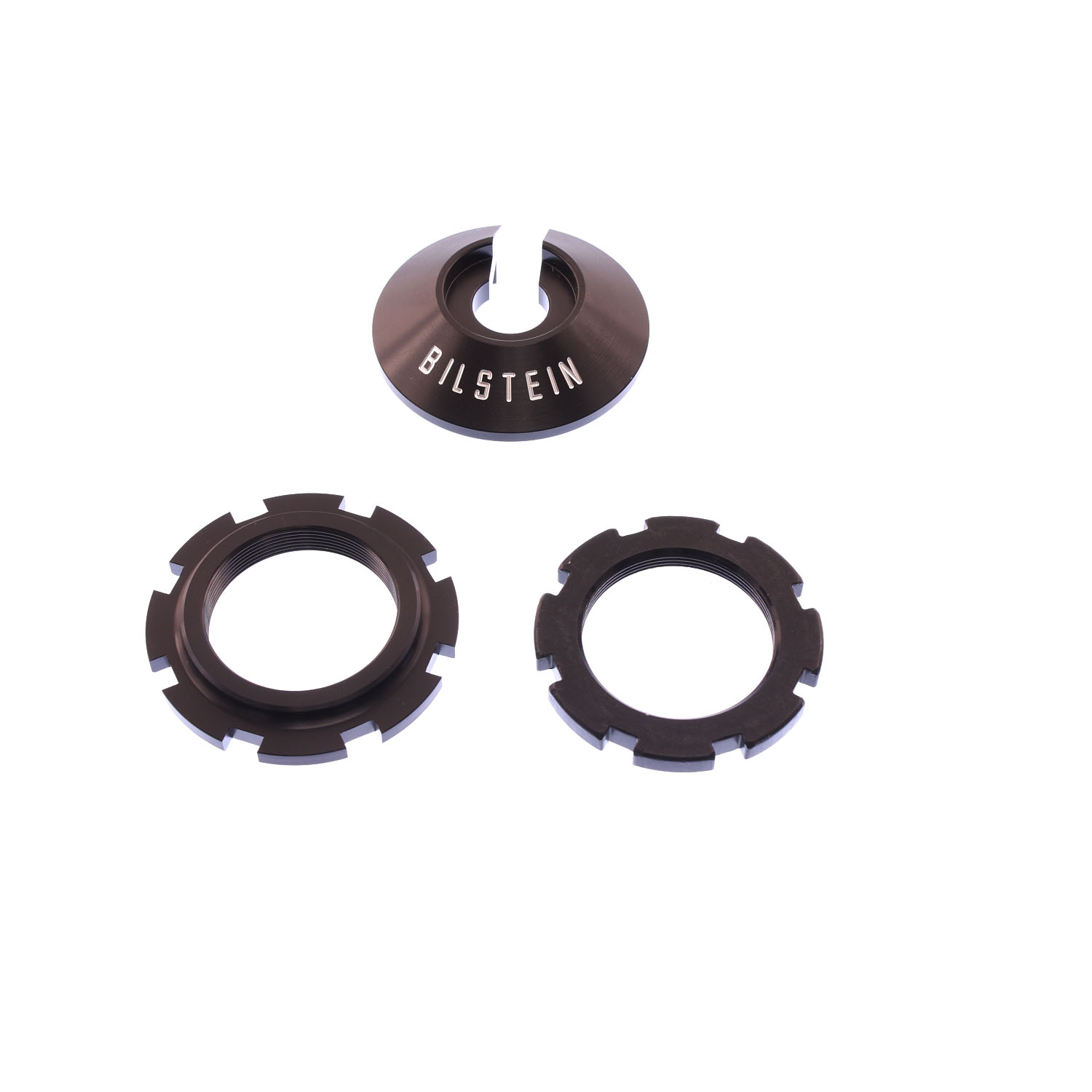

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.

Products specifications

Attribute name Attribute value
Finish Polished Aluminum
Boot Included No
Recommended Mounting Length (IN) 12.50
Series CA5 Series
Compression @0.52m/s 720
Collapsed Length (mm) 296.5
Lower Mount Type 15.9mm Heim
Spring Seat Included Yes
PartType Shocks / Struts
Segment Tuning
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Position Front
Extended Length (IN) 15.16
Upper Mount Type 15.9mm Heim
Internal Design Monotube
Rebound @0.52m/s 1300
Extended Length (mm) 385.0
Collapsed Length (IN) 11.67
Country of Origin US
Condition New
Quantity per Application 2
