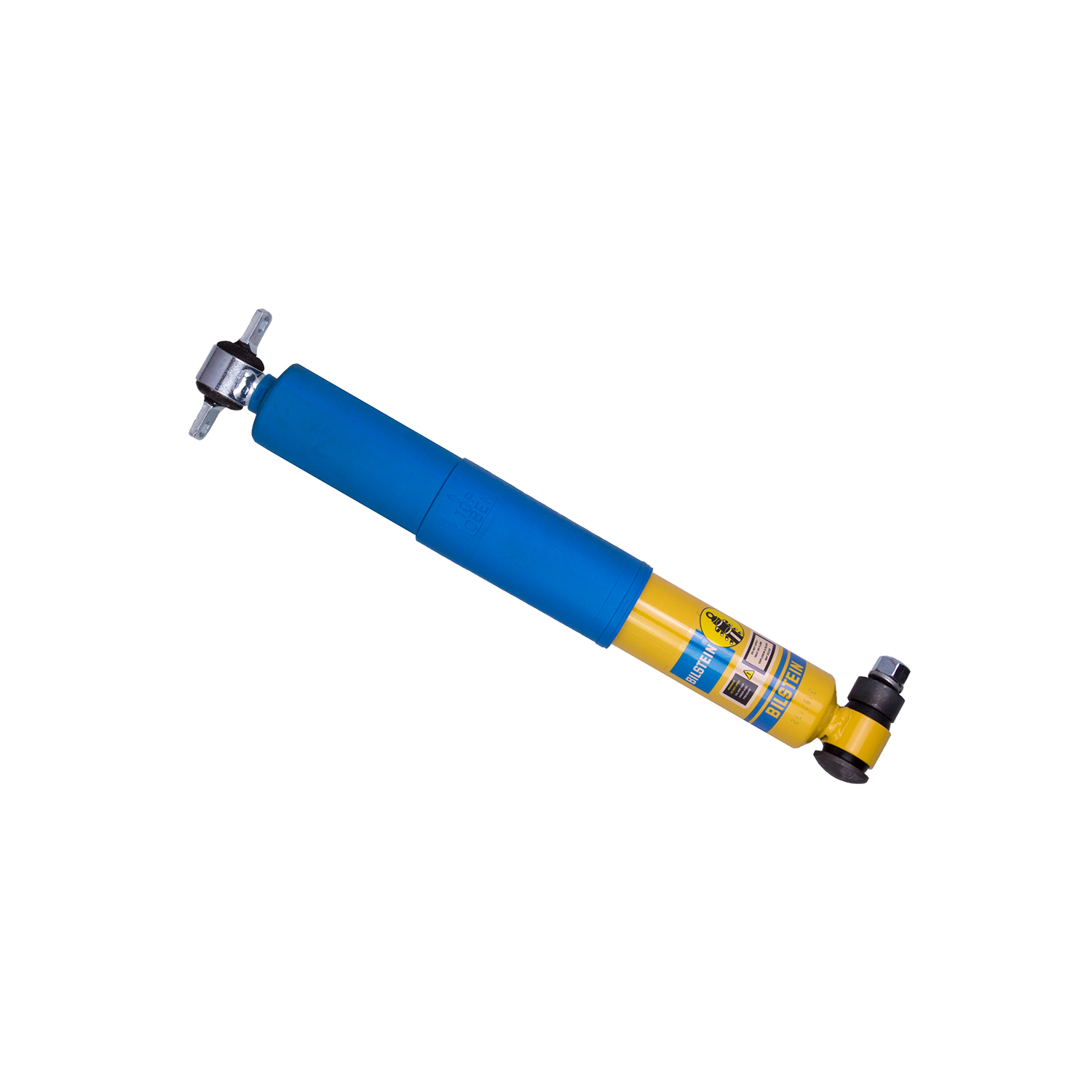

Bilstein Suspension Shock Absorber - AK1052

Name: Bilstein Suspension Shock Absorber - AK1052
SKU: AK1052
Price: 112.93 USD
Availability: OutOfStock

AK Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: AK1052

$112.93

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Application: No Applications

Products specifications

Attribute name	Attribute value
Body Design	Stock Mount Smooth Body
Compression @0.26m/s	500
Series	AK Series
Boot Included	Blue Straight
Collapsed Length (IN)	11.28
Finish	Yellow Paint
Collapsed Length (mm)	286.5
Rebound @0.26m/s	1445
Extended Length (mm)	437.0
Internal Design	Monotube
Piston Type	Linear
Extended Length (IN)	17.20
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s	2710
Compression @0.52m/s	905
Piston Diameter	46mm
Shaft Diameter	11mm
Stroke/Travel Length (mm)	186.4
Stroke/Travel Length (IN)	7.34
Body Material	Steel
Upper Mount Type	Bar Pin
Adjustable Damping	Non-Adjustable
Lower Mount Type	Cantilever
Country of Origin	US
Condition	New
Quantity per Application	2
