Bilstein Suspension Shock Absorber - AK7110R04

M 7100 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: AK7110R04
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

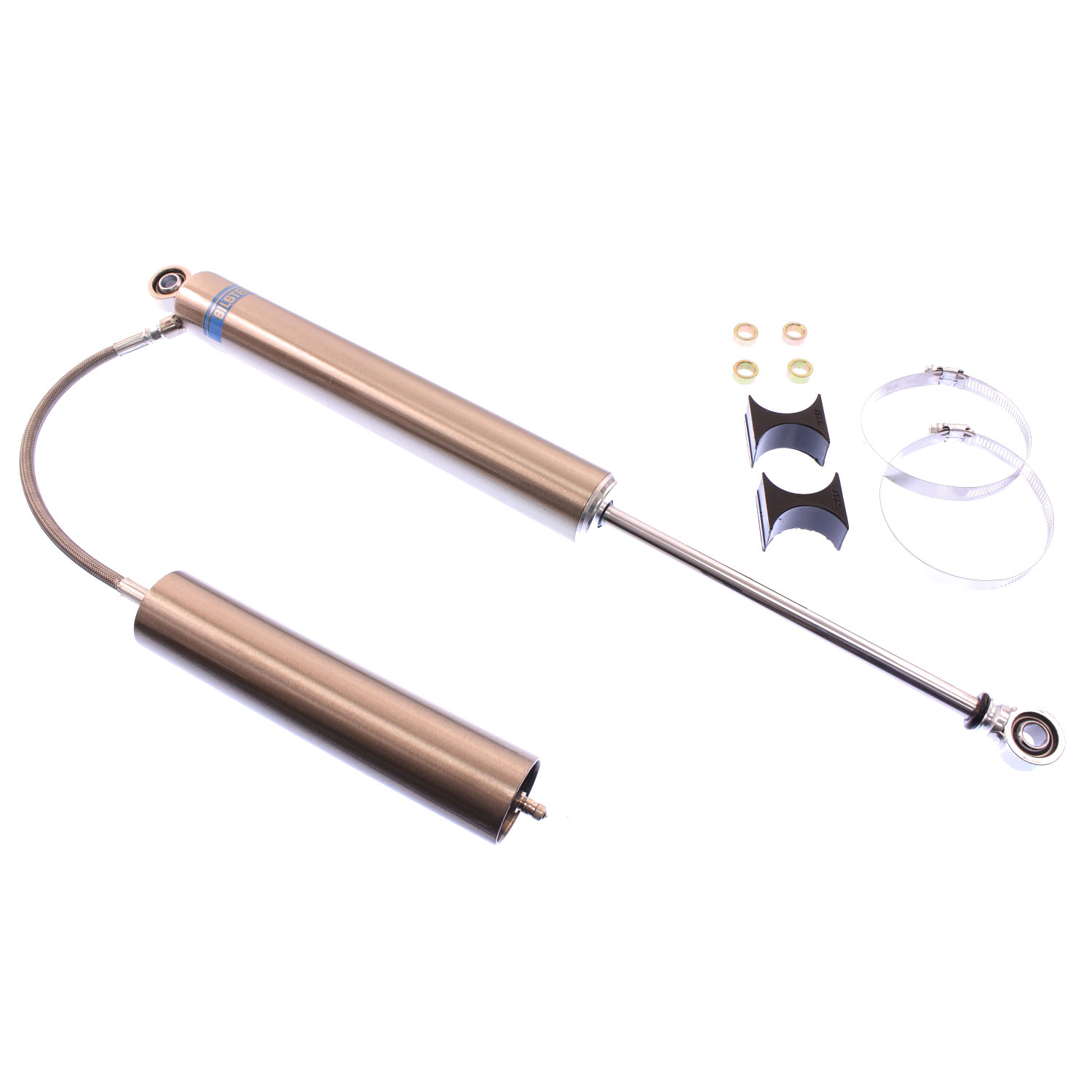

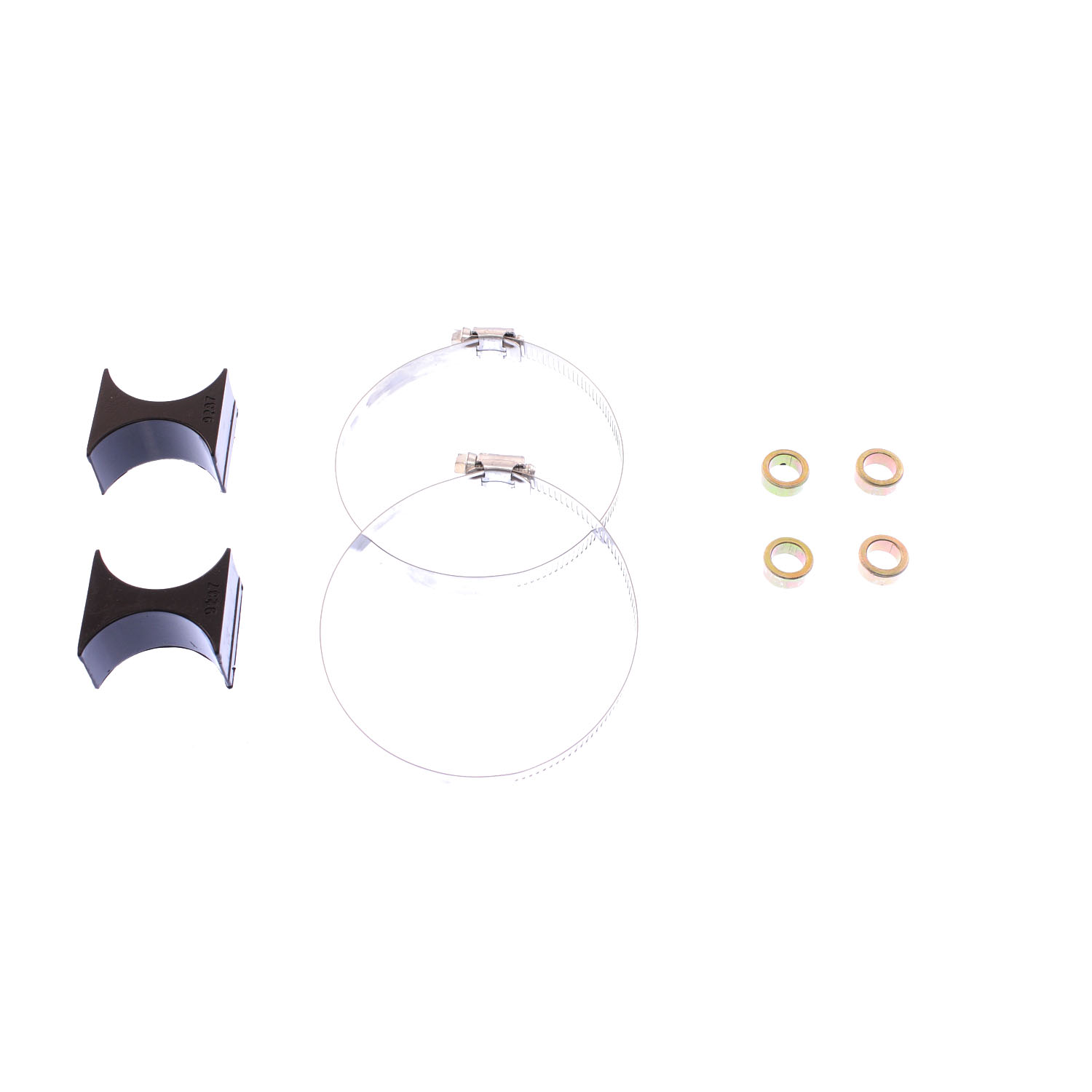

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Products specifications

Attribute name Attribute value
Reservoir Yes
Internal Design Monotube
Extended Length (IN) 25.77
Mount Type Eye-to-Eye
Compression @0.52m/s 700
Optional Reservoir Clamp N/A
Series M 7100
Rebound @0.52m/s 2550
Finish Nickel Plated with Clear Powder Coat
Upper Mount Type 1/2in Heim
Collapsed Length (mm) 408.9
Extended Length (mm) 654.6
Lower Mount Type 1/2in Heim
Body Design Smooth Body (Non-Coilover)
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 16.10
Piston Diameter 46mm
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 245.6
Stroke/Travel Length (IN) 9.67
Country of Origin US
Condition New
Quantity per Application 2
