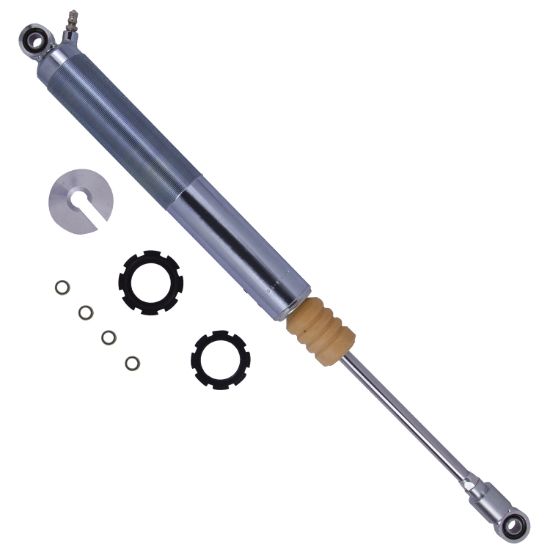

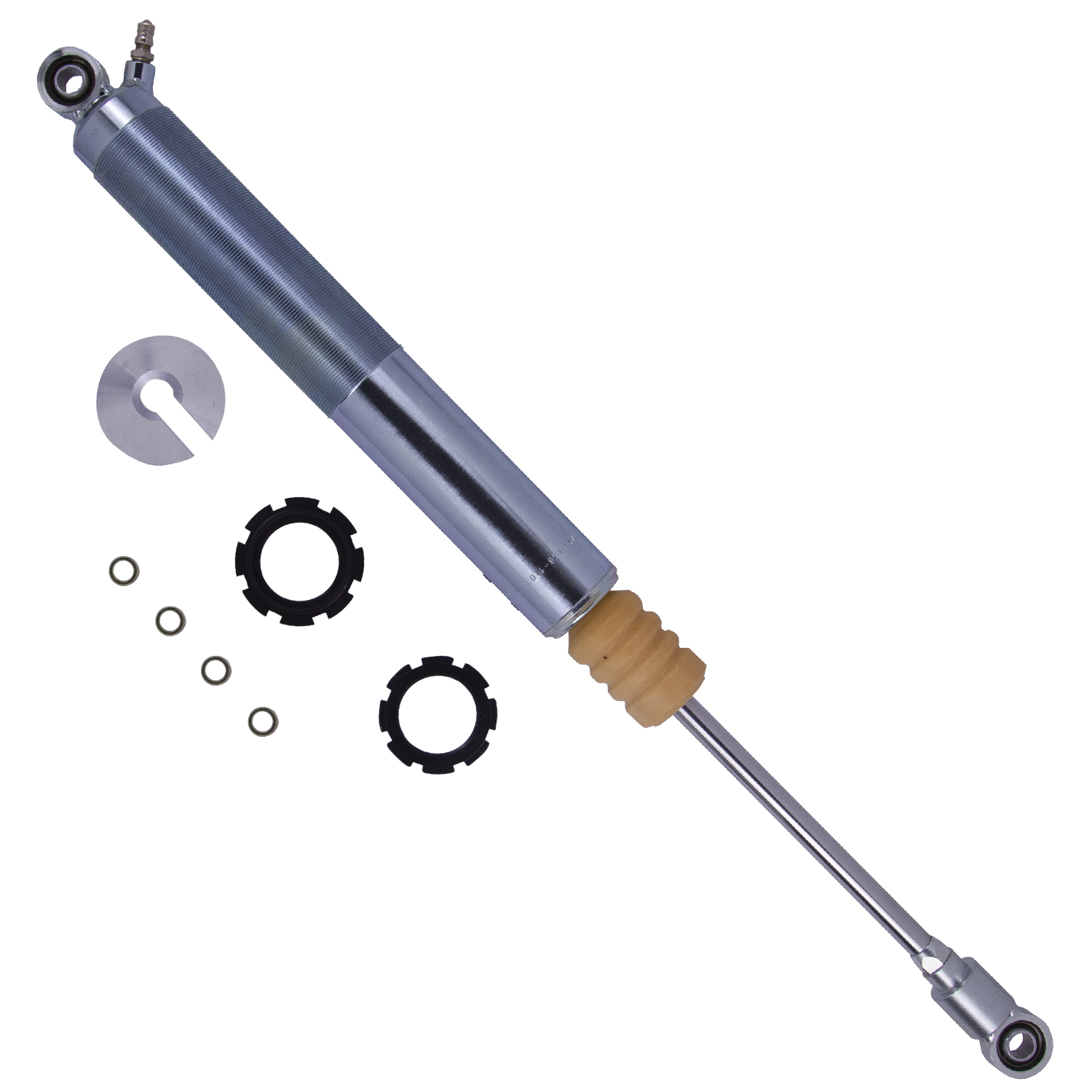

Bilstein Suspension Shock Absorber - B46-1103S

M 7100 (Coilover) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: B46-1103S
$204.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

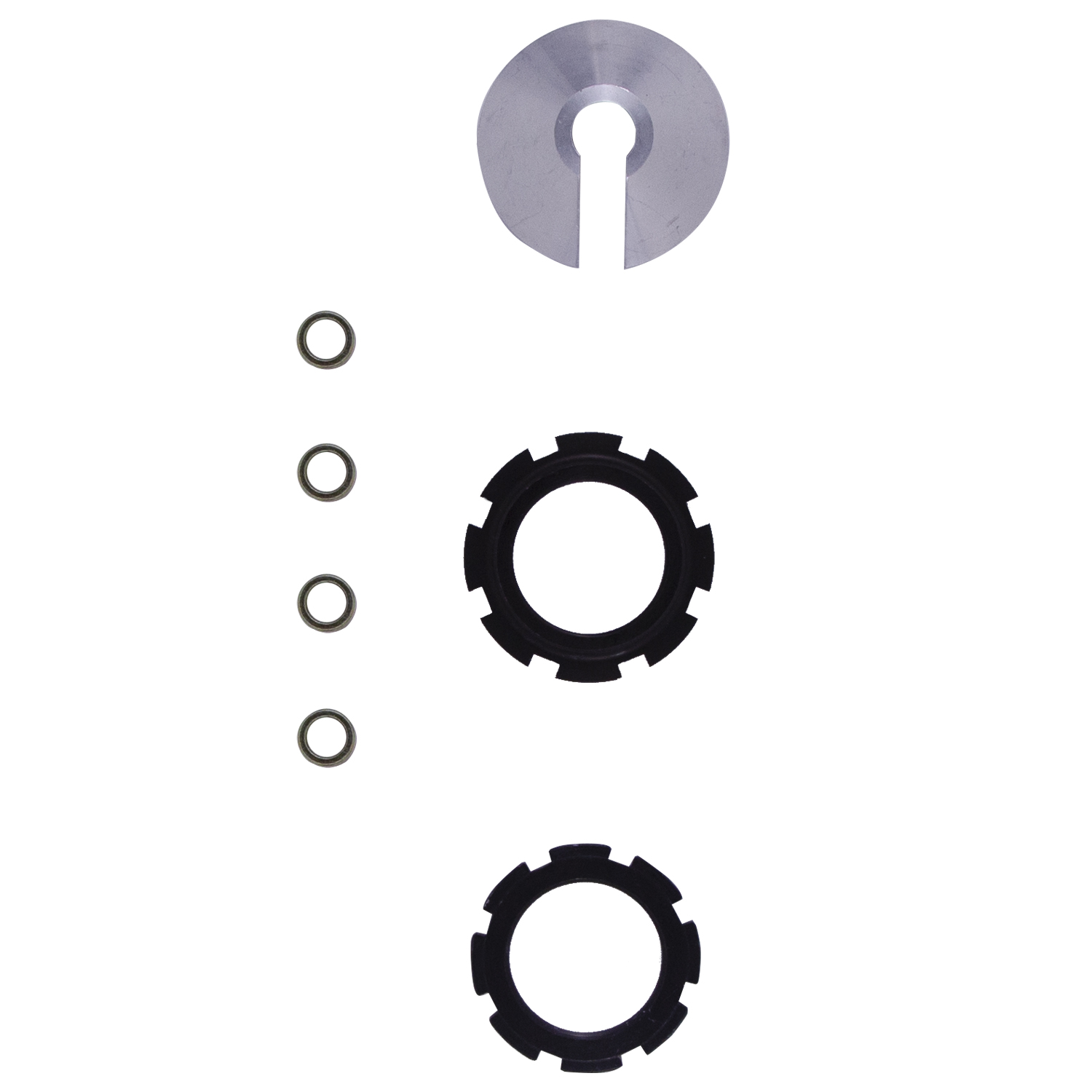

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.

Application: No Applications

Products specifications

Attribute name Attribute value
Upper Mount Type 1/2in Heim
Lower Mount Type 1/2in Heim
Reservoir No
Extended Length (IN) 26.65
Internal Design Monotube
Series M 7100 (Coilover)
Mount Type Eye-to-Eye
Finish Nickel Plated with Clear Powder Coat
Compression @0.52m/s 1000
Rebound @0.52m/s 2550
Extended Length (mm) 676.9
Collapsed Length (IN) 17.44
Body Design Threaded Body (Coilover)
Optional Reservoir Clamp N/A
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware Single Rate (2.5in)
Piston Diameter 46mm
Collapsed Length (mm) 443.0
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 233.9
Stroke/Travel Length (IN) 9.21
Country of Origin US
Condition New
Quantity per Application 2
