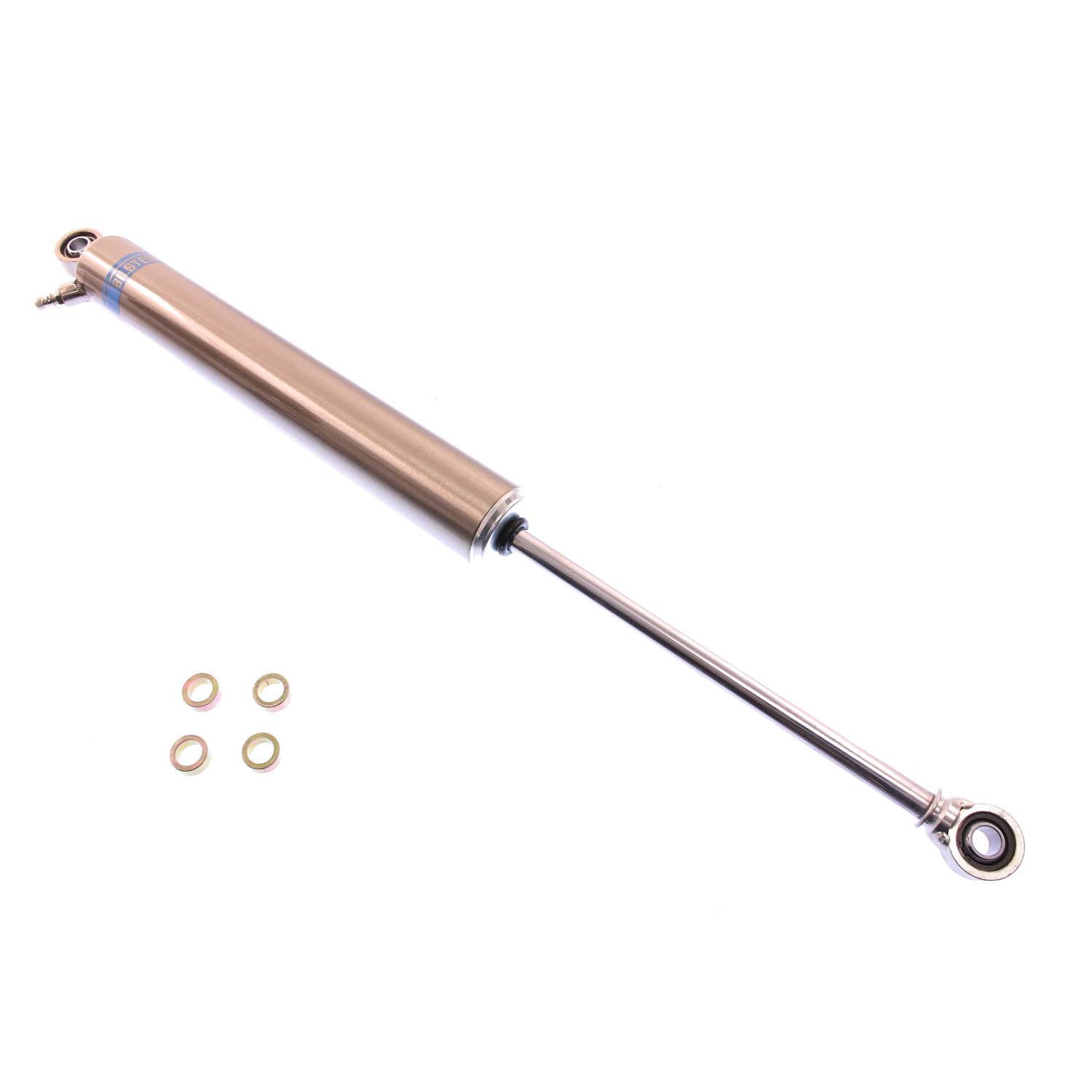

Bilstein Suspension Shock Absorber - B46-1362S

M 7100 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: B46-1362S
Old price: $152.25
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

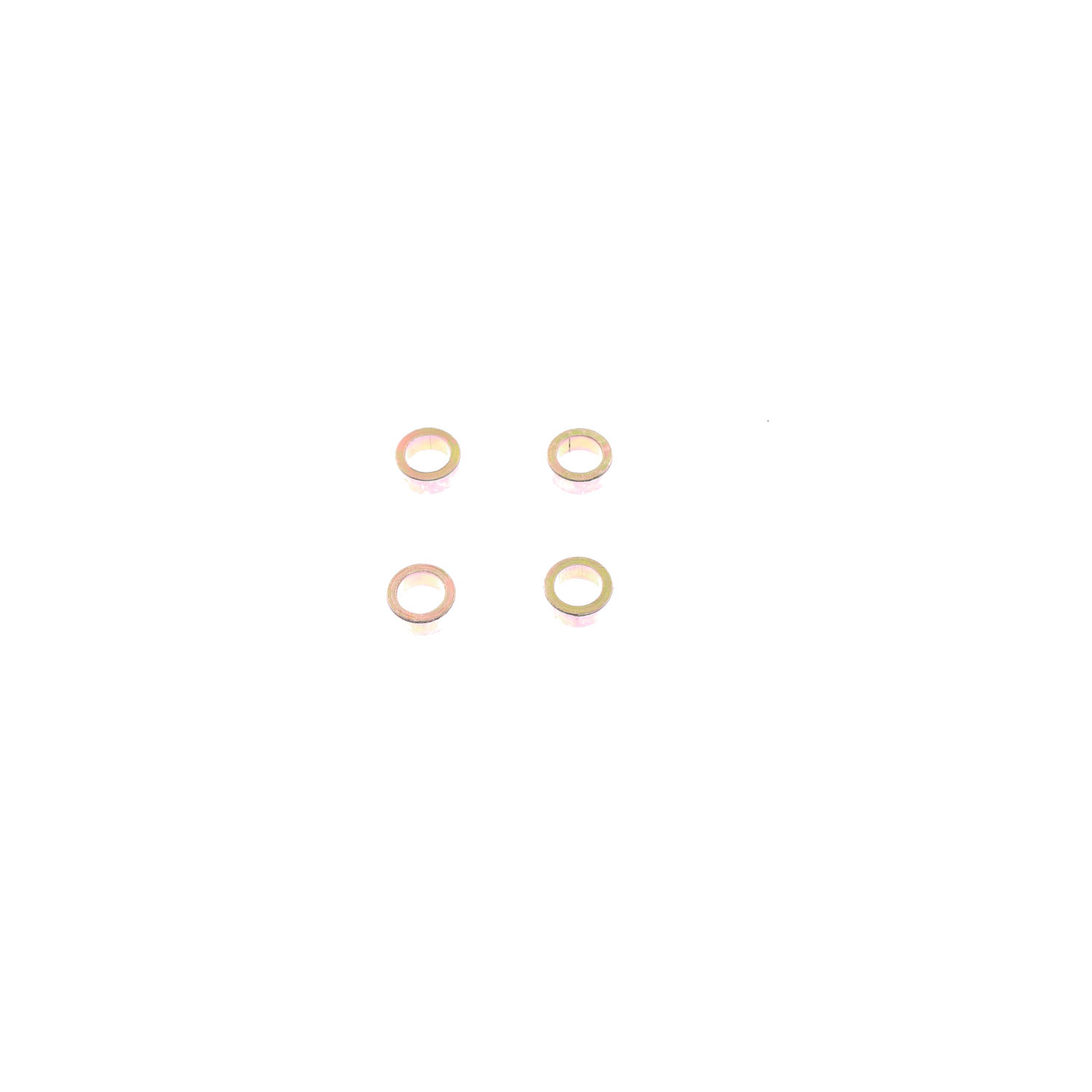

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Products specifications

Attribute name Attribute value
Reservoir No
Upper Mount Type 1/2in Heim
Mount Type Eye-to-Eye
Rebound @0.52m/s 1700
Body Design Smooth Body (Non-Coilover)
Series M 7100
Collapsed Length (mm) 408.9
Optional Reservoir Clamp N/A
Extended Length (IN) 25.77
Lower Mount Type 1/2in Heim
Internal Design Monotube
Finish Nickel Plated with Clear Powder Coat
Compression @0.52m/s 600
Extended Length (mm) 654.6
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (IN) 16.10
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 245.6
Stroke/Travel Length (IN) 9.67
Country of Origin US
Condition New
Quantity per Application 2
