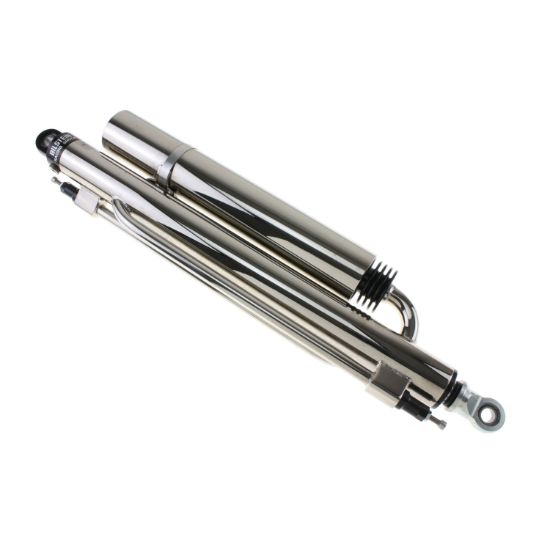

Bilstein Suspension Shock Absorber - B46-9118BYST

Name: Bilstein Suspension Shock Absorber - B46-9118BYST
SKU: B46-9118BYST
Price: 0.01 USD
Availability: OutOfStock

M 9100 (Bypass) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: B46-9118BYST

Old price: $604.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 9100 (Bypass) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

Products specifications

Attribute name	Attribute value
Reservoir	Yes
Compression @0.52m/s	Custom
Lower Mount Type	1/2in Heim
Extended Length (IN)	43.36
Internal Design	Monotube
Upper Mount Type	1/2in Heim
Mount Type	Eye-to-Eye
Collapsed Length (IN)	26.22
Rebound @0.52m/s	Custom
Finish	Nickel Plated
Optional Reservoir Clamp	N/A
Series	M 9100 (Bypass)
Body Design	2-Tube Bypass Screw Top
Extended Length (mm)	1101.3
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	46mm
Collapsed Length (mm)	666.0
Stroke/Travel Length (IN)	17.14
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	435.4
Country of Origin	US
Condition	New
Quantity per Application	2
