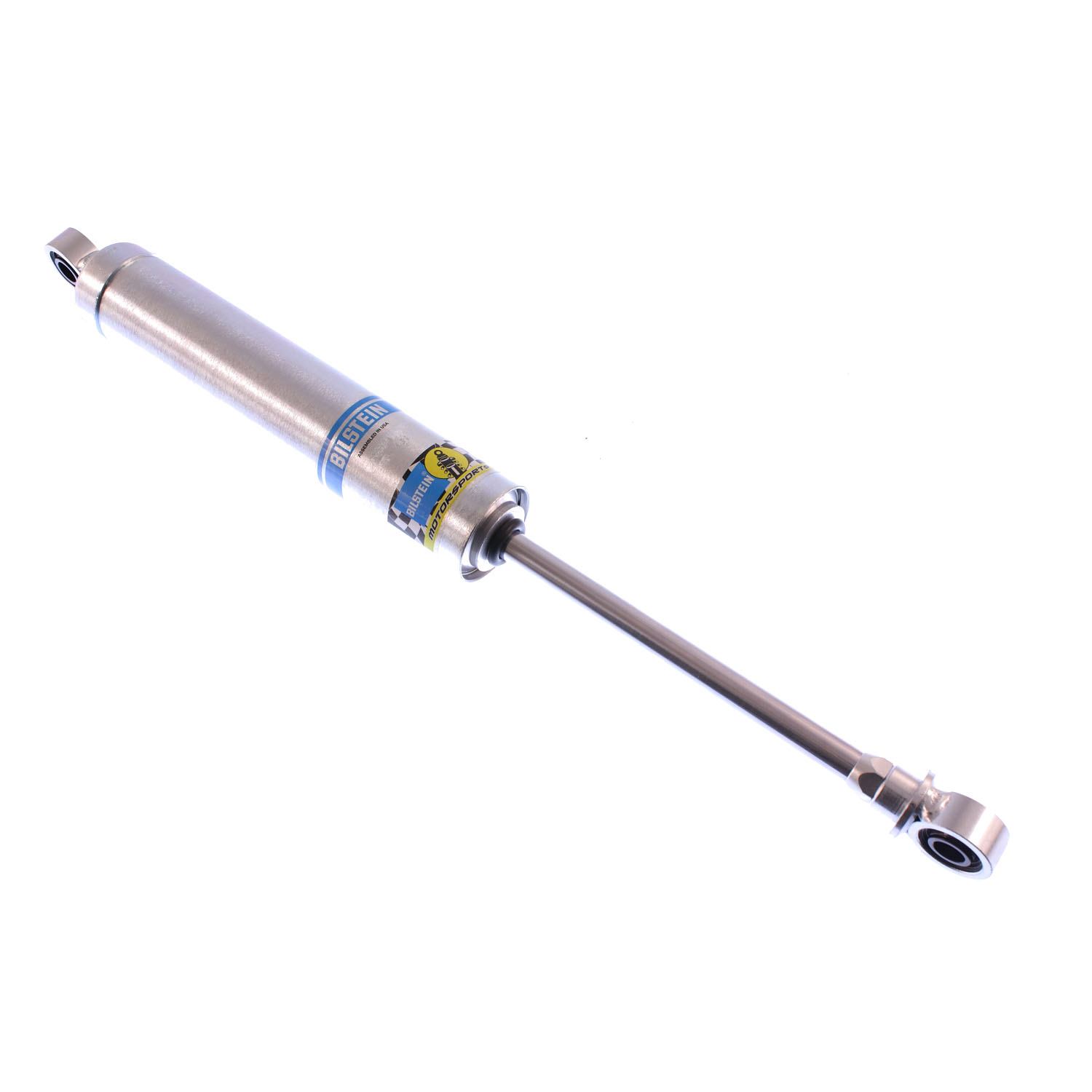

Bilstein Suspension Shock Absorber - F4-B46-0201-TE

SL Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0201-TE
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Rebound @0.26m/s 1295
Series SL Series
Collapsed Length (IN) 11.08
Finish Zinc Plated
Adjustable Damping Non-Adjustable
Body Material Steel
Boot Included No
Extended Length (mm) 413.5
Piston Type Linear
Lower Mount Type 1/2in Heim
Internal Design Monotube
Extended Length (IN) 16.28
Valving Identifier 270/90
Upper Mount Type 1/2in Heim
Collapsed Length (mm) 281.5
Body Design Smooth Body (Non-Coilover)
Compression @0.26m/s 555
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Stroke/Travel Length (mm) 132.1
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.20
Country of Origin US
Condition New
