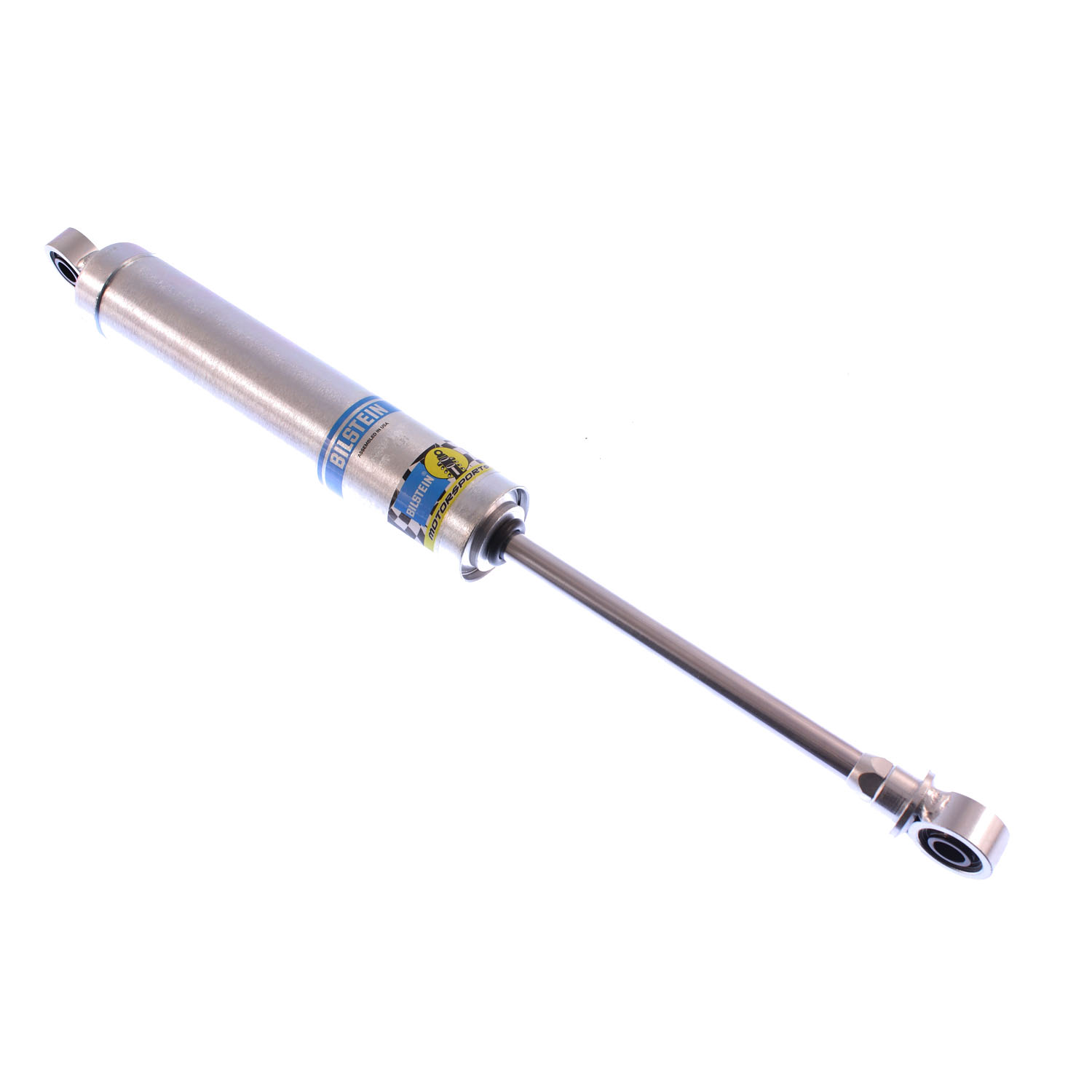

Bilstein Suspension Shock Absorber - F4-B46-0207-ZY

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0207-ZY
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Body Material Steel
Extended Length (IN) 23.52
Adjustable Damping Non-Adjustable
Finish Zinc Plated
Boot Included No
Piston Type Digressive
Collapsed Length (IN) 14.88
Internal Design Monotube
Body Design Smooth Body (Non-Coilover)
Lower Mount Type 1/2in Heim
Extended Length (mm) 597.5
Series SZ Series
Upper Mount Type 1/2in Heim
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (mm) 378.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
Country of Origin US
Condition New
